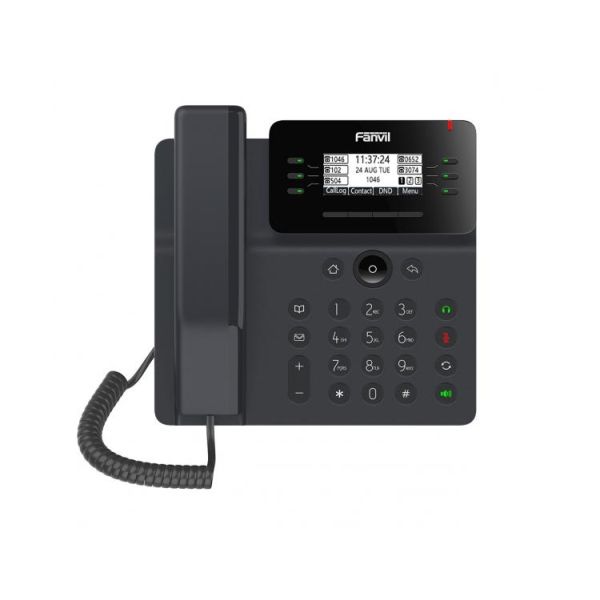

Fanvil V62 - Essential Business IP Phone

About the Phone

The Fanvil V62 is more than an efficient Telephone, but a delicate work of art that provides a smart and smooth business communication experience for enterprises. The Essential Business Phone features a graphical Dot Matrix Screen with backlight and necessary VoIP features as well as other extended features. The V62 is a great combination of elegant outside and powerful inside.

User Friendly UI

The 2.7 Inch Graphical Dot Matrix Screen with Backlight and Intuitive UI design make navigation easy and requires only minimal training, bringing the premium visual experience.

Crystal Clear Audio

The V62 supports wideband audio codec Opus and G.722, whilst being coupled with Noise Reduction technologies and Full Duplex AEC, that bring an immersive listening experience.

6 Party Conference

The Fanvil V62 supports 6 Way Audio Conference, and its conference management mode enables you to manage the conference efficiently, such as hold, remove and mute the call if the participants.

USB 2.0

USB 2.0 interface can connect to a Wi-Fi Dongle and Bluetooth Adapter, providing high scalability and improved work efficiency. The V62 is designed to encourage your flexibility at work.

Key Features

• 2.7 Inch 192 x 64 Graphical Dot Matrix Screen with Backlight
• Supports Wideband Audio Codec G.722 and Opus
• Supports 6 Party Audio Conference
• Dual Gigabit Ports, Integrate PoE
• Supports Bluetooth Headset Via Fanvil BT20 Bluetooth Dongle and Wi-Fi via Fanvil WF20 Wi-Fi Dongle
• Dual Gigabit Ports, Integrated PoE
• Two Installation Methods of Desktop Stand and Wall Mountable
• Up to 15 DSS Keys, Every DSS Key can be Set as Line/BLF/Speed Dial Key
• 6 SIP Lines | HAC Handset

Generic

• HD Voice
• PoE Enabled
• Intelligent DSS Keys
• 2.7 Inch 9192 x 64) Graphical LCD
• Handset / Handsfree / Headset Mode
• Desktop Stand / Wall Mounted (Wall Mount not Included)
• Power Supply is an Optional Extra and Not Included - If PoE is not Available the Power Supply will need to be Purchased

Phone Features

• Local Phonebook (1000 Entries)
• Remote Phonebook (XML / LDAP, 1000 Enries)
• Call Logs - Incoming / Outgoing / Missed - 1000 Entries
• Blocked List / Allowed List
• Screensaver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS / Soft Keys
• Network Time Synchronisation
• Supports Bluetooth Headset Via Fanvil BT20 Bluetooth Dongle
• Supports Wi-Fi Via Fanvil WF20 Wi-Fi Dongle
• Supports Plantronics Wireless Headset (Through Plantronics APD-80 EHS Cable)
• Supports Recording Through Server
• Action URL / Active URI
• uaCSTA, Dial Plan
• SIP Hotspot, Multicast
• Action Plan, Group Listening

Call Features

• Call Out / Answer / Reject
• Mute / Unmute / (Microphone)
• Call Hold / Resume
• Call Waiting | Speed Dial
• Intercom, Caller ID Display
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always / Busy / No Answer)
• Call Transfer (Attended/Unattended
• BLF, Redial, Do not Disturb
• Call Parking/Pick-Up (Depending on Server)
• Auto Answering
• Voice Message (With Server)
• 6 Way Conference
• Hot Line, Hot Desking

Audio

• HD Voice Microphone / Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726, G.729A/B, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In Band, Out of Band (RFC2833/ SIP INFO)
• VQM - Voice Quality Monitoring

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - L2TP / OpenVPN
• VLAN, LLDP
• CDP, QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN, DHCP, CDP, LLDP, PPPoE
• 802.1x
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• LCD - 2.7 Inch (192 x 64) Graphical LCD with Backlight
• Keypad - 37 Keys including - 6 DSS Keys with LED Indicator Light, 6 Function Keys (Contact, Hold. MWI, Mute, Headset, Redial), 4 Soft Keys, 4 Navigation Keys, 1 OK Key, 1 Return Key. 12 Standard Phone Digit Keys, 2 Volume Control Keys, Up/Down, 1 Handsfree Key
• HD Handset (RJ9) x 1
• Standard RJ9 Handset Wire x 1
• 1.5M CAT 5.E Ethernet Cable x 1
• Desk Stand x 1
• Status Indicator Light x 1 (Red)
• RJ9 Port x2 - Handset x1, Headset x1
• RJ45 Port x2 - Network x1, PC x1 (Bridged to Network)
• USB 2.0 Port x` - Standard A, Connect with Flash Driver & USB Headset and USB Dongle
• Security Lock Port x1
• Power - DC5V/1A or PoE
• Installation - Desktop Stand or Wall Mount (Wall Mount not Included)

Package Contents

• Fanvil V62 IP Phone
• Handset
• Handset Cord
• Desk Stand
• Ethernet Cable
• Quick Installation Guide
