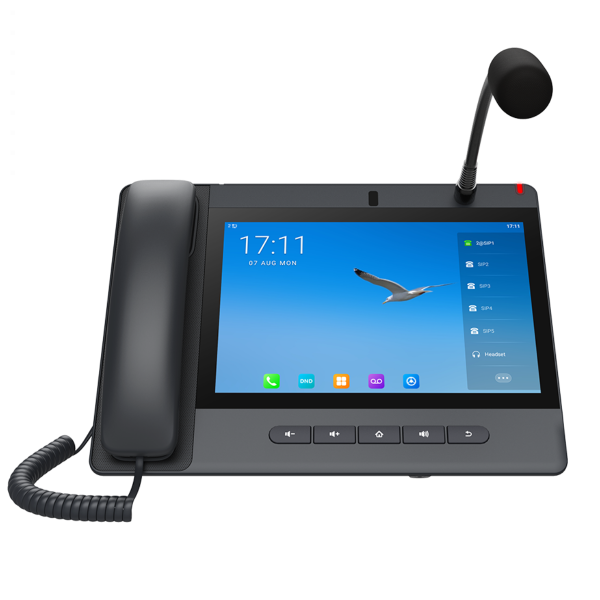

Fanvil A320i - Android Touch Screen Console IP Phone

A High End Touch Screen Console IP Phone Running on Android 9.0, Many of its Features Include - a Gooseneck Microphone, Push to Mute Handset, Built in Bluetooth 5.0, Built in 2.4GHz and 5GHz Wi-Fi, 20 SIP Lines, 116 DSS Keys and HD Voice

About the Fanvil A320i

The Fanvil A320i is tailored for industry use, featuring a Gooseneck Microphone and HD handsfree calling. Runninng on Android 9.0 Operating System it offers a seamless touch operation experience.

With 116 DSS keys, a 10.1 Inch Colour Touch Screen, Wi-FI and Bluetooth, its ideal for daily communication needs. Equipped with an adjustable 8MP Camera and a Push to Mute Handset, it enhances audio and video conferences.

Compatible with SIP, it is the perfect Phone for management command centres and offers functions such as video calling, intercom, monitoring and broadcasting.

Intuitive Design - Exceptional Audio

The Fanvil A320i features a dual design with both touchscreen and physical buttons, complemented by a gooseneck microphone for a more convenient and effortless experience.

Privacy Control

The Fanvil A320i has a built in 8MP HD Camera with a privacy cover to protect your privacy when online. It supports video codec H.264 for two way HD video calls, the camera angle can be adjusted via the rotary button to change the height.

PTM Handset

Equipped with a PTM Handset, the Fanvil A320i allows for one touch mute anytime during calls ensuring your privacy.

Audio / Video Conference

The Fanvil A320i supports 10 way audio conferencing and 3 way video conferencing, facilitating online collaboration within any company and significantly enhancing communication efficiency.

Enhanced Features

With built in Wi-Fi and Bluetooth 5.0, the A320i can support Bluetooth Headsets enabling handsfree communication. The integrated USB 2.0 interface allows for external connections including USB drives and USB Headsets.

Highlights

• 10.1 Inch Colour Touch Screen
• Equipped with a Gooseneck Microphone for Further Sound Pickup Distance
• 116 DSS Keys, 20 SIP Lines
• Integrate a Public Address Software to Build a Broadcasting System
• Supports 10 Way Audio Conferencing and 3 Way Video Conferencing
• Equipped with a PTM Handset - Allows One Touch Mute During Calls
• Built in Adjustable 8 Mega Pixel Camera witha Privacy Cover
• Supports HD Audio with G.722 and Opus
• Supports Video Codec H.264, Providing Premium HD Video Calls
• Built in 2.4GHz and 5GHz Wi-Fi and Built in Bluetooth 5.0
• Dual Gigabit Ports, Integrated PoE

Specifications:

Generic

• 20 SIP Lines
• HD Voice
• Support Receiving Video Calls
• PoE Enabled
• 10.1 Inch (1280x800) Colour Touch Screen
• Handset / Handsfree / Headset Mode
• Intelligent DSS Keys (Virtual Buttons)
• Optional External Power Supply (Not Included)

Operating System

• Android 9.0 OS with Higher Security and Better Compatibility
• Built in Applications - Files, Calendar, Gallery. Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video, Music
• Supports Installation of 3rd Party Applications
• Secondary Development of API

Phone Features

• Local Phonebook (2000 Entries)
• Remote Phonebook (XML/LDAP, 2000 Entries)
• Intelligent Search for Contacts and Call Log
• Call logs (In / Out/ Missed, 1000 Entries)
• Black/White List Call Filter
• Screen Saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft Keys
• Network Time Synchronisation
• Built-in Bluetooth 5.0: Supports Bluetooth Headset / Bluetooth of Mobile Device
• Built-in Wi-Fi: 2.4GHz, 802.11 b/g/n; 5GHz, 802.11 a/n/ac
• Support Recording
• Action URL / Active URI
• UaCSTA
• Audio/Video Recording
• SIP Hotspot
• Group Broadcasting
• Action Plan, Group Listening

Call Features

• Call Out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting, Intercom
• Caller ID Display, Spped Dial
• Anonymous Call (Hide Caller ID)
• Call Forward (Always / Busy / No Answer)
• Call Transfer (Attended / Unattended)
• Call Park / Pick Up (Depending on Server)
• Do-Not-Disturb, Redial
• Auto-Answering
• Voice Message (With Server)
• 3 Way Conference
• Hot Line, Hot Desking, BLF

Video

• Video Decoding - H.264 /H.265(Optional)
• Video Call Resolution - CIF/VGA/4CIF/720P/1080P
• Image Format - JPEG/PNG/BMP
• Video Format - MP4
• Bandwidth Selection - 64kbps~4Mbps
• Frame Rate Selection - 5~30fps
• Video from Remote Site can be Displayed in Full Screen
• Video Call, Video Preview
• Camera - 8MP - Adjustable Angle - Privacy Shutter

Audio

• HD Voice Microphone/Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec - G.711a/u, G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In-Band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode:IPv4
• IP Configuration - Static / DHCP
• Network Access Control: 802.1x
• VPN - OpenVPN (Requires Third-Party App Support)
• VLAN, LLDP, CDP, QoS

Package Contents

• Fanvil A320i IP Phone
• Handset, Handset Curly Cord
• Gooseneck Microphone
• Ethernet Cable, Desk Stand
• Quick Installation Guide
