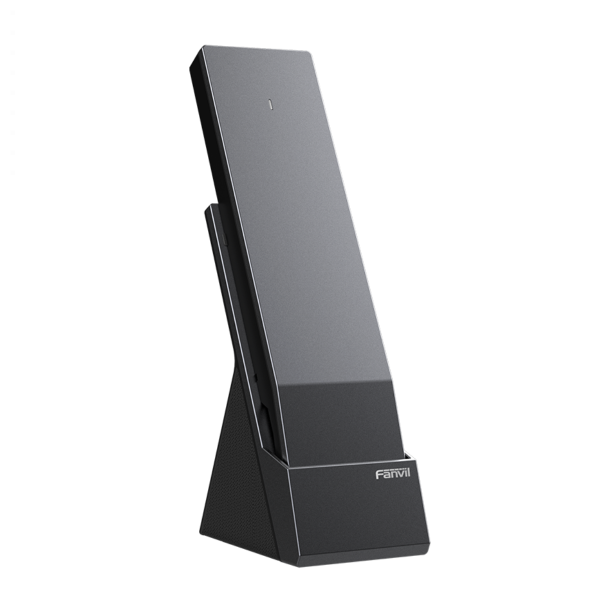

Fanvil H603W Wi-Fi IP Phone

The Fanvil H603W is a Modern Wi-Fi IP Phone with Multiple Functions and Built-In Dual Band 2.4GHz & 5GHz Wi-Fi

About the H603W

Enhance your guest experience with the Fanvil H603W. This stylish Wi-Fi IP Phone boasts advanced features including 6 Programmable Keys, Wi-Fi 6 for uninterrupted connectivity and HD Audio for clear conversations. Designed with guest health in mind, it incorporates antibacterial materials. Its intuitive interface and customisable features make it easy for guests to stay connected during their stay. Additionally it is equipped with a high capacity 1900mAh battery that offers long lasting performance with a talk time of up to 8 hours and a standby time of up to 159 hours.

Advanced Design - Antimicrobial Materials

The Fanvil H603W Wi-Fi IP Phone features a Wireless Handset with Antimicrobial Materials, prioritising guest health and safety by inhibiting bacterial growth.

Dual USB Ports

Equipped with both USB-A and USB-C Ports on its Base, the Fanvil H603W supports quick charge 3.0 for fast charging of Phones and other USB Devices, accomodating the charging requirements of guests.

Stable Connection

Experience seamless communication with the Fanvil H603W. Its fast roaming capabilities deliver uninterrupted calls and a consistently stable network connection, significantly enhancing user experience.

6 Programmable Keys

Enjoy easy access to hotel services with 6 Programmable Soft Keys. Easily request Housekeeping, Ticketing, Front Desk, Food & Beverage, Morning Call, Voicemail, and other services directly from your Phone.

Built In Wi-Fi

The Fanvil H603W Wi-Fi IP Phone simplifies setup with built-in Dual Band 2.4GHz and 5GHz Wi-Fi (Wi-Fi 6), a default SSID, and password, allowing for quick and easy plug and play deployment.

Features

• 10 Speed Dial Keys, 2 SIP Lines
• Tri-Colour Status Light to Indicate Different Statuses
• 6 Programmable Soft Keys for Service Hotline
• Designed with Antibacterial Material
• Built in Dual Band 2.4GHz / 5GHz Wi-Fi (Wi-Fi 6)
• Customisable Faceplate
• HD Audio with Wideband Codec G.722 & Opus
• Supports Fast Roaming for Uninterrupted and Stable Calls
• USB-A and USB-C Ports on Base for Fast Charging (QC3.0)
• 1900mAh Detachable Lithium Battery Provides up to 8 Hours of Talk Time or up to 159 Hours of Standby Time

Technical Specifications:

Phone Functions

• Programmable DSS / Soft Keys
• Built in Dual Band 2.4GHz / 5GHz Wi-Fi (Wi-Fi 6), 2.4GHz, 802.11 b/g/n, 5GHz, 802.11 a/n/ac/ax
• Action URL / Active URI
• Web Dial, Dial Plan
• SIP Hotspot (Client)
• Multicast, Network Time Synchronisation

Call Functions

• Call Out / Answer
• Mute / Unmute
• Speed Dial, Voice Message
• Hotline

Audio

• Wideband ADC / DAC 16KHz Sampling
• HAC Controller
• Narrowband Codec - G.711A/U, G.729AB, G723.1, G726, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Handsfree Speakerphone with AEC
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packer Loss Concealment (PLC)
• Dynamic Adapter Jitter Buffer
• DTMF - In-Band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
• Voice Quality Monitoring (VQM)

Network

• IP Mode: IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static / DHCP / PPPoE
• Wi-Fi Encryption: WPA /WPA2-PSK /802.1X EAP
• Network Access Control - 802.1x
• VPN - L2TP / OpenVPN
• VLAN: 802.1P/Q
• QoS, LLDP
• RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)

Power Management

• Charging Indication
• Fully Charged Indication
• Low Battery Indication
• Auto Power on when Charging After Shutdown

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN/DHCP
• IPv6/PPPoE
• L2TP/OpenVPN
• SNTP/FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Management

• Auto Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Web Based Paxket Dump
• Configuration Export/Import

Physical

• Keypad - 24 Keys Including 12 Standard Phone Digit Keys, 6 DSS Keys, 5 Function Keys - Up/Down/Mute/Answer/Hang Up, 1 Handsfree Key
• Charging Dock
• Power - DC 12V/3A (Dock Power Input)
• Charging Port - USB-C
• Fast Charging Port - USB-A and USB-C up to 20W

Package Contents

• Fanvil H603 Wi-Fi IP Phone
• Charging Base
• Rechargeable Battery
• Power Adapter
• Quick Installation Guide
