Fanvil X210i Visualisation Paging Console IP Phone - New

£359.00 (Excl. VAT) £430.80 (Incl. VAT)

    PMC Product Code: 17600

    Manufacturer's Product Code: fanvil-x210i

    • 20 SIP Lines, 3 Way Conference
    • HD Audio on Speakerphone and Handset
    • Moveable Type Directional External Gooseneck Microphone
    • 4.3 Main Colour Display
    • 2 x 3.5 Inch Side Colour Displays for DSS Keys
    • Built in Bluetooth
    • PoE - (Power over Ethernet)

    Stock status: In Stock

    Condition: Brand New

    Quantity:
    -+

    Need help with your Order?

    Call: 0161 737 9898

    email:info@pmctelecom.co.uk

    Details

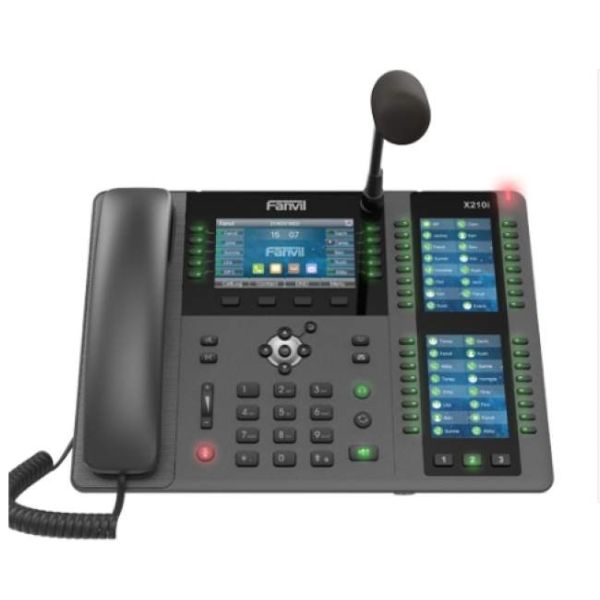

    Fanvil X210i Visualisation Paging Console IP Phone

    Equipped With a Gooseneck Microphone That Presents Sound With High Definition, Supports HD Handsfree Calling

    The Fanvil X210i is a visualisation Paging Console Phone, equipped with a Gooseneck Microphone and Supports HD Hands-Free Calling. Intelligent Programmable DSS Buttons allow users to set up a One Click Call Function to improve Communication Efficiency. Compatible with standard SIP Protocol, and can be used as a Monitoring Centre or Host for Office Manager with Functions such as making calls for External and Internal Phones, Two Way Intercom, Monitoring and Broadcasting. The X210i improves the management efficiency and emergency response capabilities.

    Good Sound Pickup Effect

    Professional Directional Gooseneck Microphone Presents Sound with good Reproduction, High Definition and Low Noise.

    HD Audio for Speakerphone and Handset

    Newly added support for Opus and a larger audio cavity bring abundant, strong low frequency effect. The Speakerphone adopts full net coverage delivering Crystal Clear, life like voice communication.

    Unified Design With Two Side Displays for up to 106 DSS Keys

    Convenient operation on the X210i with two 3.5 Inch Side DSS Key Displays, no need to add External Expansion Modules. Three Page Switch Buttons allows the Side Displays tp set up to 96 DSS Keys (32 Physical) and plus 10 DSS Keys on the Main Display, up to 106 DSS Keys are available in total for BLF, Speed Dial, and Group Broadcasting Functions.

    Video Surveillance

    Equipped with Video Codec H.264 the X210i can be integrated with multiple IP Cameras. Simply press on the DSS Keys and you can view the video of the selected camera in real time.

    Remote Control of Fanvil SIP Video Door Phone and Barrier Gate

    The X210i enables integration with Fanvil SIP Video Door Phones, allowing users to have a two way conversation with visitors and unlock the door via the X210i IP Phone. When the Licence Plate Recognition fails to open the barrier gate, the driver can speak to the Management Centre through the Intercom Terminal, which is installed at the entrance and exit of the parking lot, the management Centre can them remotely open the barrier gate for the driver via the X210i.

    Rich Extension Function Door Phone Integration

    The X210i offers a variety of device connections including Wi-Fi (Via Wi-Fi Dongle), Integrated Bluetooth, EHS Headset, USB Port for Charging Smartphones or other devices. Two Gigabit Ports allow users to connect Desktop Computers or Laptops with no need for extra cables.

    Fanvil X210i Features and Overview

    • 20 SIP Lines, 3 Way Conference
    • HD Audio on Speakerphone and Handset
    • Moveable Type Directional External Gooseneck Microphone
    • 4.3 Main Colour Display
    • 2 x 3.5 Inch Side Colour Displays for DSS Keys
    • Up to 106 DSS Keys (42 Tri-Coloured Physical Keys)
    • Dual Gigabit Ports, Integrated PoE
    • Built in Bluetooth
    • Wi-Fi Connectivity (VIa Wi-Fi Dongle)
    • Video Codec H.264 Support for Receiving Video Calls
    • Support for EHS Headset
    • Stand with 2 Adjustable Angles of 40 and 50 Degrees
    • Compatible with Major Platforms - 3CX, Asterisk, Broadsoft, Metaswitch, Avaya and More

    Fanvil X210i Generic Features

    • 20 SIP Lines
    • HD Voice Support Receiving Video Calls
    • PoE Enables
    • 3 LCD's - Main & DSS
    • Handset / Handsfree / Headset Mode
    • Intelligent DSS Keys
    • Optinal External Power Supply

    Fanvil X210i Phone Features

    • Local Phonebook - 2000 Entries
    • Remote Phonebook (XML/LDAP, 2000 Entries)
    • Call Logs - In/Out/Missed, 1000 Entries
    • Black/White List Call Filtering
    • Screen Saver
    • Voice Message Waiting Indication (VMWI)
    • Programmable DSS/Soft Keys
    • Network Time Synchronisation
    • Built in Bluetooth 2.1 - Supports Bluetooth Headset
    • Supports Wi-Fi Dongle
    • Supports Plantronics Wireless Headset - Through Plantronics APD-80 EHS Cable
    • Supports Jabra Wireless Headset - Through Fanvil EHS20 Cable
    • Supports Recording - Through Flash Drive or Server Recording
    • Action URL / Active URI
    • uaCSTA

    Fanvil X210i Call Features

    • Call Out / Answer / Reject
    • Mute / Unmute (Microphone)
    • Call Hold / Resume
    • Call Waiting
    • Intercom
    • Caller ID Display
    • Speed Dial
    • Anonymous Call (Hide Caller ID)
    • Call Forwarding (Always/Busy/No Answer)
    • Call Transfer (Attended/Unattended
    • Call Parking/Pick Up (Depending on Server)
    • Redial
    • Do Not Disturb
    • Auto Answering
    • Voice Message (On Server)
    • 3 Way Conference
    • Hot Line Hot Desking

    Video Features

    • Video Codec - H.264
    • Video Call Resolution - QCIF / CIF / VGA

    Audio Features

    • HD Voice Microphone / Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
    • HAC Handset
    • Wideband ADC/DAC 16KHz Sampling
    • Narrowband Codec - G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
    • Wideband Codec - G.722, AMR-WB, Opus
    • Full-duplex Acoustic Echo Canceller (AEC)
    • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)
    • Packet Loss Concealment (PLC)
    • Dynamic Adaptive Jitter Buffer up to 300ms
    • DTMF - In-Band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

    Networking

    • Physical -10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
    • IP Mode - IPv4/IPv6/IPv4&IPv6
    • IP Configuration - Static / DHCP / PPPoE
    • Network Access Control: 802.1x
    • VPN - L2TP / OpenVPN
    • VLAN
    • LLDP
    • QoS
    • RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

    Protocols

    • SIP2.0 over UDP/TCP/TLS
    • RTP/RTCP/SRTP
    • STUN
    • DHCP
    • IPv6
    • LLDP
    • PPPoE
    • 802.1x
    • L2TP
    • OpenVPN
    • SNTP
    • FTP/TFTP
    • HTTP/HTTPS
    • TR-069

    Deployment and Maintenance

    • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIP PNP/TR069
    • Web Management Portal
    • Web-based Packet Dump
    • Configuration Export / Import
    • Phonebook Import/Export
    • Firmware Upgrade
    • Syslog

    Physical Specifications

    • Main LCD x 1 - 4.3 Inches (480 x 272) Colour LCD Screen
    • DSS Key Mapping LCD x 2 - 3.5 Inch (320 x 480) Colour LCD Screen
    • Keypad - 77 Keys - Including 4 Soft Keys, 6 Function Keys (Hold, Call Forward, Phonebook, MWI, Headset, Redial), 4 Navigation Keys, 1 OK Key, 1 Return Key, 12 Standard Phone Digit Keys, 3 Volume Control Keys - Up/Down/Mute (Microphone)
    • 1 Handsfree Key
    • 42 DSS Keys with Tri-Colour LED's
    • 3 Page Switch (PS) Key
    • USB 2.0 Port - Standard A, Connect with Wi-Fi USB Dongle
    • Gooseneck Mic Port x 1, Gooseneck Microphone x 1
    • Power Consumption - PoE - 2.6~ 9W
    General
    Colour of TelephoneGrey
    EAN6937295601466
    Warranty12 months
    Please Note
    Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
