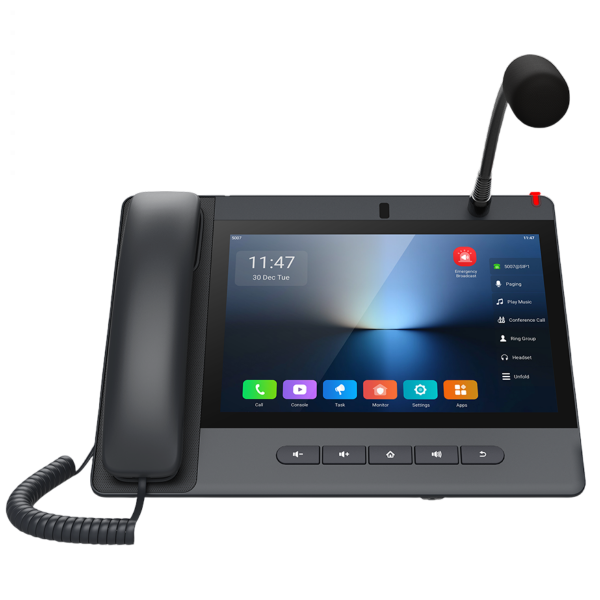

Fanvil A330i Touch Screen Android Console IP Phone

The Fanvil A330i Android Touch Screen IP Console Phone is an advanced enterprise communications console designed for organisations requiring professional voice, video and dispatch capabilities from a single desktop device. Featuring a large 10.1-inch HD touchscreen, Android 14 operating system, high-definition full-duplex audio, an integrated 13MP adjustable camera with privacy shutter, an included gooseneck microphone, Wi-Fi 6, Bluetooth 5.4 and dual Gigabit Ethernet connectivity, the A330i delivers exceptional performance for security control rooms, transport hubs, reception desks and business communication environments.

Supporting up to 20 SIP lines, intelligent call management, HD video conferencing, live paging and centralised management of up to 300 IP endpoints, the Fanvil A330i is built to improve communication efficiency across enterprise, education, healthcare and industrial environments while providing an intuitive user experience and outstanding reliability.

Professional Android IP Console Phone

The Fanvil A330i combines the flexibility of an Android-powered operating system with enterprise-grade SIP telephony to create a powerful communications hub for professional organisations. Running Android 14, the console supports built-in productivity applications alongside compatible third-party software, allowing businesses to integrate communication, monitoring and operational workflows into one easy-to-use desktop device.

Its vibrant 10.1-inch 1280 × 800 capacitive touchscreen provides a responsive and intuitive interface, while 116 programmable virtual DSS keys allow operators to quickly access contacts, extensions, paging groups and frequently used functions. With support for up to 20 SIP accounts, intelligent contact management and comprehensive call handling features, the A330i is designed for demanding environments where speed and efficiency are essential.

Whether installed in a reception area, security control room or operational command centre, the Fanvil A330i delivers a modern communications platform capable of supporting voice, video and dispatch operations from a single professional console.

HD Audio and Video Communications

The Fanvil A330i has been engineered to deliver exceptional voice and video performance for professional communication environments. Supporting HD wideband audio, full-duplex conversations, acoustic echo cancellation, intelligent noise reduction and advanced audio codecs, the console ensures every conversation remains clear and natural even in busy workplaces.

A standout feature of the A330i is its integrated 13-megapixel adjustable camera, complete with a mechanical privacy shutter for enhanced security. Combined with the included gooseneck desktop microphone, the console provides outstanding voice capture for conferencing, paging and operational communications.

Supporting H.264 video compression and high-definition video calling, the A330i also includes HDMI output for external displays, making it ideal for security monitoring, command centres and video collaboration where visual communication is just as important as audio quality.

Enterprise Connectivity and Centralised Management

Designed for modern enterprise deployments, the Fanvil A330i offers flexible wired and wireless connectivity through dual Gigabit Ethernet ports, integrated Wi-Fi 6 and Bluetooth 5.4. Power over Ethernet (PoE+) support simplifies installation by allowing both power and network connectivity through a single cable.

The console supports automatic provisioning via HTTP, HTTPS, DHCP Option 66 and TR-069, enabling rapid deployment across multiple locations. Businesses can centrally manage up to 300 IP endpoints, while advanced dispatch functions allow operators to initiate live paging, scheduled announcements, pre-recorded broadcasts and rapid conferencing with a single touch.

Additional interfaces including HDMI, RS-485, line-in, line-out, USB ports and alarm input/output connections enable seamless integration with security systems, public address solutions and building management infrastructure.

Built for Professional Control Rooms and Dispatch Applications

The Fanvil A330i is designed for organisations where reliable communications play a critical operational role. Its combination of Android functionality, enterprise telephony, HD video and dispatch capabilities makes it suitable for a wide variety of professional environments.

ideal applications include - security control rooms, hospitals and healthcare facilities, corporate reception desks, warehouses and distribution centres, transport and logistics operations and more.

Hightlights

• 10.1 Inch Touchscreen with High Quality Full Duplex Audio and Noise Reduction
• 13MP Camera with Privacy Shutter and Gooseneck Microphone
• Dual Gigabit Ethernet, Wi-Fi 6 and Bluetooth 5.4
• Centralised Management of up to 300 IP Endpoints
• Flexible Task Triggering via Single Touch, Schedulling DTMF, Network Commands and Alarm Inputs
• Unattended Management Mode with Automatic Call Forwardng
• H.264 Video Codec, Video Tour Mode &HDMI Output for Forwarding
• 8 x Short Circuit Inputs - 1 x Short Circuit Output, 1 x RS-485, 1 x HDMI, 1 x Line-In / Line-Out

Specifications

General

• Android 14 Operating System
• Supports 20 SIP Lines
• 10.1-inch 1280 × 800 HD Capacitive Touchscreen
• 116 Intelligent Virtual DSS Keys
• HD Voice Support
• Video Calling
• Handset, Handsfree and Headset Modes

Audio

• Full-Duplex HD Audio
• Acoustic Echo Cancellation (AEC)
• Intelligent Noise Reduction (NR)
• Wideband Audio Codecs (G.722, Opus)
• Narrowband Audio Codecs (G.711a/u, G.729AB, iLBC)

Video

• 13MP Adjustable Camera
• Mechanical Privacy Shutter
• H.264 Video Codec
• Full HD Video Calling
• HDMI Video Output
• Video Monitoring Support

Network & Connectivity

• Dual Gigabit Ethernet Ports
• Wi-Fi 6 (2.4GHz & 5GHz)
• Bluetooth 5.4
• IPv4 & IPv6
• PoE+ Support
• HTTPS Auto Provisioning
• TR-069 Support

Interfaces

• HDMI Output
• USB 2.0 Type-A
• USB 3.0 Type-C
• TF Card Slot
• RJ9 Handset Ports
• Line-In, Line-Out
• 8 x Alarm Inputs
• 1 x  Alarm Output
• RS-485 Interface

Call Functions

• Call Out / Answer / Reject
• Mute / Unmute Microphone
• Call Hold / Resume
• Call Waiting, Intercom
• Caller ID Display, Speed Dial
• Audio & Video Conferencing
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always / Busy / No Answer)
• Do Not Disturb, Redial
• Call Park / Pick Up (Server Dependent)
• Local & Remote Phonebooks

Physical

• Desktop Installation
• Power via PoE+ or 12V DC Adapter

Package Contents

• Fanvil A330i Android IP Console Phone
• Desktop Stand
• PTM Handset
• Standard RJ9 Handset Cable
• Gooseneck Desktop Microphone
• 12V / 3A Power Adapter
• 1.5 Metre CAT5 Ethernet Cable
• Quick Installation Guide
