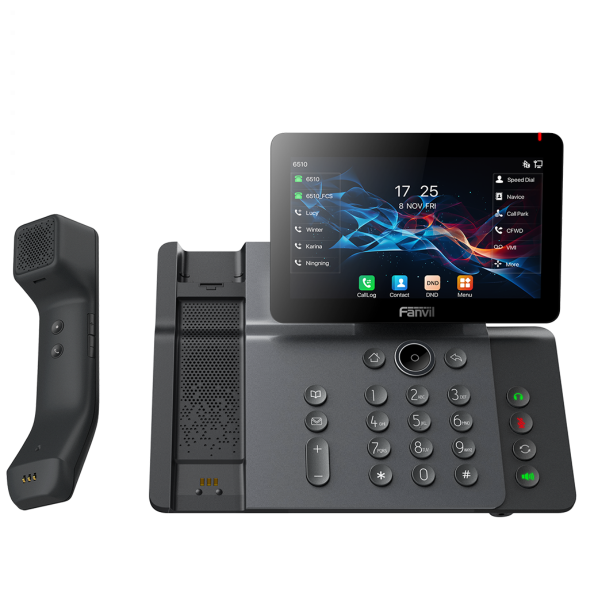

Fanvil V66 Pro Prime Business IP Phone

A Smart Business IP Phone with a 7 Inch High Definition Adjustable Colour Touchscreen and Enriched Wireless Bluetooth Handset with Programmable Keys - Designed for Advanced Business Users

About the V66 Pro Prime

The Fanvil V66 Pro Smart Business IP Phone offers Crystal Clear Audio, Vibrant Video Calls, and Customisable Features. Its interchangeable Bluetooth Handset with built in Programmable Keys is easy to locate if mistakenly misplaced. H.264 Video Codec, Wi-Fi and Bluetooth Connectivity provide unparalleled convenience and flexibility for modern business professionals.

Bluetooth Wireless Handset:

Features

• Auto Pairing - Simply Place the Bluetooth Handset on the Phone and it Will Automatically Pair to the Phone
• Search Function - Features a Search Button and a 10 Metre Seamless Connection - If you are Unable to Locate the Handset Select Search & the Handset will Flash Green & Blue Alternatively & Beep
• Programmable Keys - Keys can be Programmed - Enhancing Efficiency

Smart Screen - New UI

The Fanvil V66 Pro has been designed with a 7 Inch Adjustable Touchscreen that features a new UI with responsive Touch Controls. The screen adjusts from 0° to 40° providing users with the ability to customise the viewing angle to suit their individual needs.

6 Way Audio Conference

The Fanvil V66 Pro supports 6 Way Audio Conferencing, offering a more efficient and convenient meeting experience. Built in 2.4G & 5G Wi-FI (Wi-Fi 6) and Bluetooth 5.4 ensure that the Fanvil V66 Pro provides a seamless wireless office experience.

RTSP Video Streaming

The Fanvil V66 Pro Prime Business IP Phone can access real time video streams by configuring the RTSP URL, seamlessly integrating video surveilance and access control systems, allowing users to monitor door activity at any time, enhancing security protection.

Integrated Hall Switch

The Fanvil V66 Pro has been designed with an Integrated Hall Switch. Ensure that the Handset is placed properly on the hook through magnetic induction. No popping noise can be heard when the Handset is lifted or replaced back on the hook. The Hall Switch is more durable than an traditional Hook Switch.

Features

• Bluetooth Handset with Programmable Keys - Supports Auto Pairing and Locating
• Antibacterial Material of the Handset and Keypad Surface Effectively Inhibits more than 99.5% of Bacteria Growth
• 7 Inch Adjustable Screen (0° to 40°) for Different Lighting Environments
• Receive Video Calls with Video Codec H.264
• 20 SIP Lines, Up to 116 (29*4) DSS Keys - DSS Keys can be Set as Line Keys / BLF Keys and Speed Dial Keys
• Supports 6 Way Audio Conference
• Two Installation Methods - Desktop Stand and Wall Mountable
• Supports Audio Codec G.722 and Opus, HD Audio on Speakerphone and Handset
• Built in 2.4G / 5G Wi-Fi, Supports Wi-Fi 6, Built in Bluetooth 5.4
• Available to Link with Security Products, Can be Easily Customised into Various Security Solutions - Reducing Investment

Specifications:

Generic

• Handset / Handsfree / Headset Mode
• PoE Enabled, Intelligent DSS Keys (Virtual Buttons)
• 7 Inch - 1024 x 600 Colour Screen
• 20 SIP Lines, HD Voice, Dual Gigabit Ports
• Desktop Stand / Wall Mount (Optional)
• Hall Switch Handset
• Bluetooth Wireless Handset

Phone Features

• Local Phonebook (2000 Entries)
• Remote Phonebook (XML / LDAP)
• Call Logs In / Out / Missed - 1000 Entries
• Blocked / Allowed List - 1000 Entries
• Screen Saver, SIP Hotspot
• Voice Message Waiting Indication (VMWI)
• Programmable DSS / Soft Keys
• Network Time Synchronization
• Support Recording (Via Server)
• Built in Bluetooth 5.4 Supports Bluetooth Headset / Pairing Mobile Devices
• Supports Poly Wireless Headset (Through Poly APD-80 EHS Cable)
• Supports Jabra Wireless Headset (Through Fanvil EHS20 EHS Cable)
• Replacement or Spare Bluetooth Wireless Handset Available
• Action URL / Active URI, uaCSTA, Dial Plan
• Personalised Ringtone Settings
• Multicast / Action Plan / Group Listening

Audio

• HD Voice Microphone / Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16Khz Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726, G.729 G.729A/B, G.729B, G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In Band, Out of Band (RFC2833/ SIP INFO)
• VQM - Voice Quality Monitoring

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - OpenVPN / L2TP
• VLAN, LLDP, CDP, QoS
• Support SIP Backup Server
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Wi-Fi Security Mode - WPA / WPA2-PSK / 802.X.EAP

Call Features

• Call Out / Answer / Reject
• Mute / Unmute / (Microphone)
• Call Hold / Resume
• Call Waiting, Speed Dial
• Intercom, Caller ID Display
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always / Busy / No Answer)
• Call Transfer (Attended/Unattended
• BLF, Redial, Do not Disturb
• Call Parking/Pick-Up (Depending on Server)
• Auto Answering
• Voice Message (With Server)
• 6 Way Audio Conferencing
• Hot Line, Hot Desking
• Call Back, IP Direct Dial

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• LCD - 7 Inch (1024 x 600) Colour Screen IPS
• Keypad - 27 Keys - Including 5 Function Keys (Contact / MWI / Mute / Headset / Redial)
• 4 Navigation Keys / 1 OK Key
• 1 Return Key / 1 Home Key
• 12 Standard Phone Digit Keys
• 2 Volume Control Keys - Up / Down
• 1 Handsfree Key
• Bluetooth Handset (BTH60)
• Bluetooth Handset Status Indicators - 1 x Red / 1 x Green, 1 x Blue

Package Contents

• Fanvil V66 Pro IP Phone
• Bluetooth Handset
• Deskstand
• Network Cable
• Quick Installation Guide
