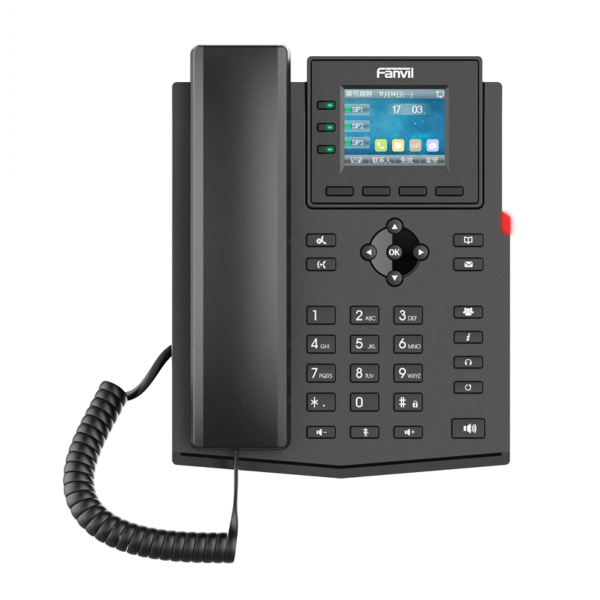

Fanvil X303-2 Wire IP Phone

About the Fanvil X303-2 Wire IP Phone

An upgraded version of the original Fanvil X303 IP Phone, the Fanvil X303-2 Wire IP Phone features a brand new power and network supply method using a 2 wire connection.

This allows for complete reuse of old wiring, whilst offering High Definition Voice, a 2.4 Inch Colour Display, Support for 4 SIP Accounts, 2 wire Power and Network Supply, Multi-Party Conferencing as well as other rich features.

Furthermore, its compatibility with external EHS Wireless Headsets and other expansion capabilities enhances its versatility for diverse enterprise applications, ultimately delivering an excellent user experience.

HD Audio - Hear More Details

The Fanvil X303-2 Wire IP Phone supports Wideband Audio Codec Opus and G.722, whilst being coupled with Noise Reduction Technologies and Full Duplec AEC, bringing an immersive listening experience.

Supports 6 Way Party Conference

Supporting 6 Way Party Conferencing, the Fanvil X302-2 Wire IP Phone enables the organiser of the Conference to invite up to 5 participants to join in the Conference, making collabration between different departments or organisastions easier and more effiicient.

Supports EHS Headset

Connect compatible Wireless Headsets to the Fanvil X303-2 Wire IP Phone using an EHS (Electronic Hook Switch) Cable. This provides the convenience of answering and ensding calls remotely via the buttons on the Headset, without the need to interact with the Phone. *EHS Cable and Wireless Headset Not Included*

DSS Keys

The X303-2 Wire IP Phone features 3 programmable DSS keys. Each key can be easily configured to function as a Line Key, Busy Lamp Field (BLF), or Speed Dial extension, allowing for quick, one click access to these functions.

2-Wire Switch

The Fanvil X303-2 Wire IP Phone is not designed to connect directly to a standard Ethernet network or a regular PoE (Power over Ethernet) switch. It needs to be connected to a Fanvil PN Series 2-Wire Switch - either the Fanvil PN8 2-Wire PoE Switch or the Fanvil PN24 2-Wire PoE Switch.

The Fanvil PN8 provides 9 Ports - 8 x 2-Wire Interfaces and 1 x RJ45 Network Interface - ideal for smaller deployments where up to 8 Fanvil 2-Wire devices can be connected, the Fanvil PN24 provides 25 Ports - 24 x 2-Wire Interfaces and 1 x RJ45 Network Interface, ideal for larger deployments where up to 24 Fanvil 2-Wire devices can be connected.

These Switches take a standard Ethernet connection from your network and provide both network and power over the two wires connected to the Fanvil X303-2 Wire IP Phone.

Main Features

• Connects Via RJ11 Interface and Supports 2-Wire Power and Network Supply
• 2.4 Inch Colour Display - 320 x 240 Pixels
• Supports Audio Codec G.722 and Opus
• HD Voice on Speakerphone and on Handset
• Supports 6 Way Party Conferencing and EHS Wireless Headsets
• Supports Desktop and Wall Mounted Installation
• Needs Fanvil PN8 2-Wire PoE Switch or Fanvil PN24 2-Wire PoE Switch to Operate

Specifications:

Screen / Keyboard

• 4 Soft Keys, 3 Line Keys with LED Indicator Light
• 4 Navigation Keys + 1 OK Key
• 12 Standard Phone Digit Keys
• 3 Volume Control Keys - Up / Down / Mute (Microphone)
• 9 Function Keys - Hold / Transfer / Voice Message / Conference / Phonebook / MWI / Headset / Redial / Handsftee
• 2.4 Inch Colour Screen - 320 x 240 Pixels

Status Light

• 1x  Red Status Light

Suitable for:

• Offices, Hospitals, Apartments

Interface

• Wire Interface (6P2C RJ11 Interface)
• Power Interface
• RJ9 Interface (Handset x 1, Headset x 1_
• Security Slot x 1

Power

• DC 12V / 1A
• 2-Wire PoE Switch Supply Power

Installation

• Desktop, Wall Mountable (Wall Mount not Included)

Functional Capabilities:

Protocols

• SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069, AES128 & AES256

Video

• HD Voice Microphone/Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
• Wideband Codec: G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF- In-Band, Out-of-Band (RFC2833/ SIP INFO)
• VQM Voice Qquality Monitoring

Network

• IP Mode -  IPv4 / IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - L2TP / OpenVPN
• VLAN, LLDP, QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Phone Functions

• Local Phonebook (1000 Entries)
• Remote Phonebook (XML/LDAP, 1000 Entries)
• Call logs (In / Out / Missed, 600 Entries)
• Blocked List/Allowed List
• Screen Saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS / Soft Keys
• Network Time Synchronisation
• Supports Plantronics Wireless Headset (Through Plantronics APD-80 EHS Cable)
• Supports Jabra Wireless Headset (Through Fanvil EHS20 EHS Cable)
• Supports Recording (Through Server)
• Action URL / Active URI
• uaCSTA

Call Functions

• Call Out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting, Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forward (Always / Busy / No Answer)
• Call Transfer (Attended / Unattended)
• Call Parking / Pick-up (Depending on Server)
• Redial, Do-Not-Disturb
• Auto-Answering
• Voice Message (With Server)
• 6 Way Conference
• Hot Line, Hot Desking

Deployment Management

• Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / DHCP OPT66 / SIP PNP / TR-069
• Web Management Portal
• Web based Packet Dump
• Configuration Export / Import
• Phonebook Import / Export
• Firmware Upgrade
• Syslog

Package Contents

• Fanvil X303-2 Wire IP Phone
• Handset
• Handset Curly Cord
• 2-Wire Cord
• Desk Stand
• Quick Installation Guide
