Fanvil X6U Enterprise IP Phone

Fanvil X6U Enterprise IP Phone

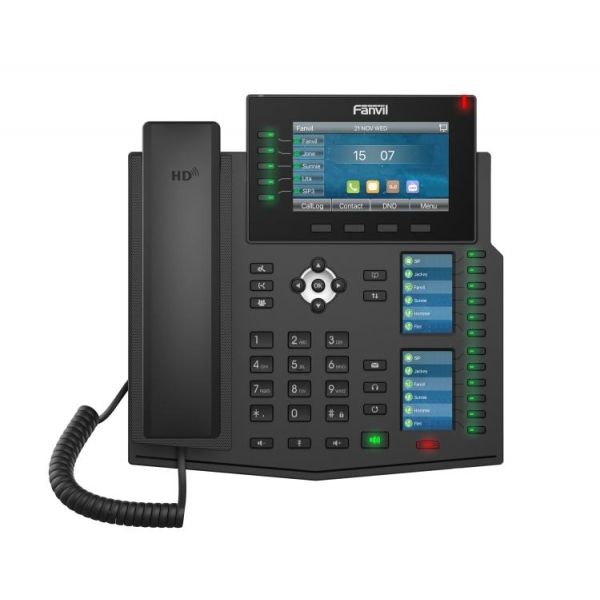

The Fanvil X6U is an enterprise level three screen IP Phone, the Fanvil X6U is an upgrade of the Fanvil X6 IP Phone featuring newly added Line Keys with LED Indicators on the main display and built in Bluetooth. The Fanvil X6U provides direct access to instructions , aiming to offer greater flexibility and productivity to exceed the different demands of businesses. Another extra feature in the X6U is Harman Speaker and wideband codec of G.722 and Opus, which deliver an immersive HD Audio experience in both high band and in low band with the network.

High Definition Audio - High Efficiency Work

Wideband Codec G.722 and Opus in the Fanvil X6U allow users to enjoy crystal clear and high efficient group communication.

Elegant Outlook - Easy Operation

Housing a more intuitive design with a 4.3 inch 480 x 272 Colour LCD, two 2.4 Inch Colour Side LED'S and 5 Linke Keys with LED Light, the Fanvil X6U allows a more user friendly feature customisation.

Greater Interoperability

Matched with Accessories like EHS Headset via EHS Cable, Wi-Fi via Wi-Fi Dongle and Built in Bluetooth, the Fanvil X6U is designed to encourage your flexibility on work.

Flexible Installation Mode

The Fanvil X6U can be installed in the desktop mode with two different angles as well as being wall mounted with the Fanvil WB102 Wall Bracket

Highlights

• 20 SIP Lines, 3 Way Conference, SIP Hotspot
• 5 Line Keys on the Main Display
• 1 x 4.3 Inch Main Colour Display, 2 x 2.4 Inch Side Colour Displays for DSS Keys
• HD Audio on Speakerphone and Handset
• Built in Bluetooth for Connecting a Bluetooth Headset
• Support for Wi-Fi Connectivity (Via Wi-Fi Dongle)
• Support EHS Wireless Headset
• Up to 60 DSS Keys (12 Two Coloured Physical Keys)
• Dual Gigabit Ports, Integrated PoE
• Stand with 2 Adjustable Angles of 45 and 50 degrees
• Compatible with Major Platforms Such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc

Features

• 20 SIP Lines
• HD Voice
• Support Receiving Video Call
• PoE Enabled
• 3 LCD's (Main + DSS)
• Handset / Hands-Free / Headset Mode
• Intelligent DSS Keys
• Desktop Stand / Wall Mounted (Additional Wall Hanging Parts Needed)
• Optional External Power Supply - Not Included*

Phone Functions

• Local Phonebook (2000 Entries)
• Remote Phonebook (XML/LDAP, 2000 Entries)
• Call Logs (In/Out/Missed, 1000 Entries)
• Black/White List Call Filter
• Screen Saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft Keys
• Network Time Synchronisation
• Built in Bluetooth - 2.1 - Supports Bluetooth Headset
• Supports Wi-Fi Dongle
• Supports Plantronics Wireless Headset (Through Plantronics APD-80 EHS Cable)
• Supports Jabra Wireless Headset (Through Fanvil EHS20 Cable)
• Support Recording (Through Flash Drive or Server)
• Action URL / Active URI
• uaCSTA
• Narrowband Codec - G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
• Wideband Codec - G.722, AMR-WB, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In Band, Out of Band - DTMF-Relay (RFC2833) / SIP INFO

Network

• Physical -10/100/1000 Mbps Ethernet, Dual Bridged Port for PC bypass
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP /DHCP / PPoE
• Network Access Control - 802.1x
• VPN - L2TP / OpenVPN
• VLAN, ;LLDP, ;QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols

• SIP 2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN, DHCP, IPv6, LLDP, PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Call Functions

• Call Out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended / Unattended)
• Call Parking/Pick-Up (Depending on Server)
• Redial
• Do not Disturb
• Auto Answering
• Voice Message (With Server)
• 3 Way Conference
• Hot Line
• Hot Desking

Video

• Video Codec - H.264
• Video Call Resolution - QCIF / CIF / VGA

Audio

• HD Voice Microphone/Speaker (Handset/Hands-Free, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16KHz Sampling

Deployment & Management

• Auto Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Phonebook Import / Export
• Firmware Upgrade
• Syslog

Physical Specifications

• Main LCD x 1 - 4.3 Inches (480 x 272) Colour Screen
• DSS Key Mapping LCD x2 - 2.4 Inch (240 x 320) Colour Screen
• Keypad - 51 Keys Including - 5 Line Keys (With LED Indicator Light), 4 Soft Keys, 8 Function Keys (Hold, Call, Forward, Conference, Phone Book, Call Log, MWI , Headset, Redial, 4 Navigation Keys, 1 OK Key, 12 Standard Phone Digits Keys, 3 Volume Keys (Up/Down/Mute/Microphone, 12 DSS Keys (With LED Indicator Light), 1 Page Switch (PS) Key (With LED Indicator Light), 1 Handsfree Key (With LED Indicator Light)
• HD Handset x 1
• Standard RJ9 Handset Wire x 1
• 1.5M CAT5 Ethernet Cable x 1
• Back Rack x 1
• Status Indicator Light x 1 (Red)
• RJ9 Port x 2 - Handset x 1, Headset x 1
• RJ45 Port x 2, Network x 1, PC x 1 (Bridged to Network)
• USB 2.0 Port x 1 - Standard A, Connect with Wi-Fi USB Dongle or Flash Driver
• Safety Keyhole x 1

Package Contents

• Fanvil X6U Enterprise IP Phone
• Basic Manual
• Stand
• Curly Cord & Handset
• Network Cable
