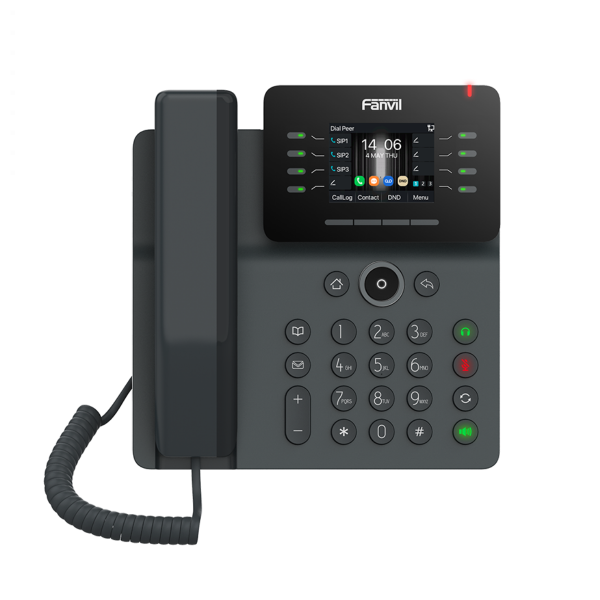

Fanvil V63 - Prime Business IP Phone

About the Fanvil V63

The Fanvil V63 is more than an efficient Telephone, but a delicate work of art that provides a smart and smooth business communication experience for enterprises. The Prime Business Phone features a 2.8 Inch Colour Screen, making it a perfect combination of elegant not only inside but outside as well.

Colour Screen

The 2.8 Inch Colour LCD Screen and 21 DSS keys give the Fanvil V63 a fresh and modern outlook. The intuitive UI design makes navigation easy and requires minimal training.

Crystal Clear Audio

The V63 supports wideband audio codec Opus and G.722, whilst being coupled with Noise Reduction technologies and Full Duplex AEC, it filters out others voices during meetings and calls to ensure that you can always be heard clearly.

6 Way Audio Conference

The Fanvil V63 supports 6 Way Audio Conference, and its conference management mode enables you to manage the conference efficiently, such as hold, remove and mute the call if the participants.

Integrate USB 2.0

The Fanvil V52 with USB 2.0 interface allows important calls to be recorded via USB disks, and can also be connected to the Fanvil BT20 USB Bluetooth Dongle for Bluetooth Headset connectivity and the Fanvil WF20 UB Wi-Fi Dongle for Wi-Fi.

Link with Security Products

The V63 can be linked with Fanvil Audio Door Phones and Intercoms, V63 can be customised to schieve remote intercom, one click unlock and other solutions.

Highlights

• 2.8 Inch Colour LCD Screen
• Supports Wideband Audio Codec G.722 and Opus
• Up to 21 DSS Keys that can be set as Line / BLF / Speed Dial Keys
• Supports 6 Way Audio Conference
• Dual Gigabit Ports, Integrated PoE
• Supports EHS Headset
• Two Installation Methods - Desktop Stand and Wall Mount (Wall Mount not Included)
• Can be Linked with Secuirty Products that can be Customised in to Security Solutions

Generic

• 6 SIP Lines
• HD Voice, PoE Enabled
• 2.8 Inch (320 x 240) Colour Screen
• Handset / Handsfree / Headset Mode
• Intelligent DSS Keys
• Desktop Stand / Wall Mountable - Wall Mount not Included
• Power Supply is an Optional Extra and Not Included - If PoE is not Available the Power Supply will need to be Purchased

Phone Features

• Local Phonebook (1000 Entries)
• Remote Phonebook (XML / LDAP, 1000 Enries)
• Call Logs - Incoming / Outgoing / Missed - 1000 Entries
• Blocked List / Allowed List / Screensaver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS / Soft Keys
• Network Time Synchronisation
• Supports Bluetooth Headset Via Fanvil BT20 USB Bluetooth Dongle
• Supports Wi-Fi Dongle - Fanvil WF20 UB Wi-Fi Dongle
• Supports Poly Wireless Headsets Via Poly APD-80 EHS Cable
• Supports Jabra Wireless Headsets Via Fanvil EHS20 EHS Cable
• Supports Recording Via Server
• Action URL / Active URI
• uaCSTA, Dial PLan, SIP Hotspot, Multicast

Audio

• HD Voice Microphone / Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16Khz Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726, G.729A/B, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In Band, Out of Band (RFC2833/ SIP INFO)
• VQM - Voice Quality Monitoring

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - OpenVPN / L2TP
• VLAN, LLDP, CDP, QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Wi-Fi - WI-FI Security Mode - WPA /WPA2-PSK/802.X EAP

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN, DHCP, CDP, LLDP, PPPoE
• 802.1x
• OpenVPN
• SNTP
• FTP/TFTP
• Supports Jabra Wireless Headset - Via Fanvil EHS20 EHS Cable

• Supports Recording Via Server
• uaCSTA
• SIP Hotspot, Multicast
• Action Plan, Group Listening

Call Features

• Call Out / Answer / Reject
• Mute / Unmute / (Microphone)
• Call Hold / Resume
• Call Waiting, Speed Dial
• Intercom, Caller ID Display
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always / Busy / No Answer)
• Call Transfer (Attended/Unattended
• BLF, Redial, Do not Disturb
• Call Parking/Pick-Up (Depending on Server)
• Auto Answering
• Voice Message (With Server)
• 6 Way Audio Conferencing
• Hot Line, Hot Desking

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• LCD - 2.8 Inch (320 x 240) Colour Screen
• Keypad - 39 Keys including - 7 DSS Keys and 1 Page Key, 6 Function Keys (Contact, Hold. MWI, Mute, Headset, Redial), 4 Soft Keys, 4 Navigation Keys, 1 OK Key, 1 Return Key. 12 Standard Phone Digit Keys, 2 Volume Control Keys, Up/Down, 1 Handsfree Key
• HD Handset (RJ9) x 11
• Desk Stand x 1
• Status Indicator Light x 1 (Red)
• USB 2.0 Port x` - Standard A, Connect with Flash Driver & USB Headset
• Security Lock Port x1
• Power - DC5V/1A or PoE
• Installation - Desktop Stand or Wall Mount (Wall Mount not Included)

Package Contents

• Fanvil V63 IP Phone
• Handset, Handset Curly Cord
• Desk Stand
• Ethernet Cable
• Quick Installation Guide
