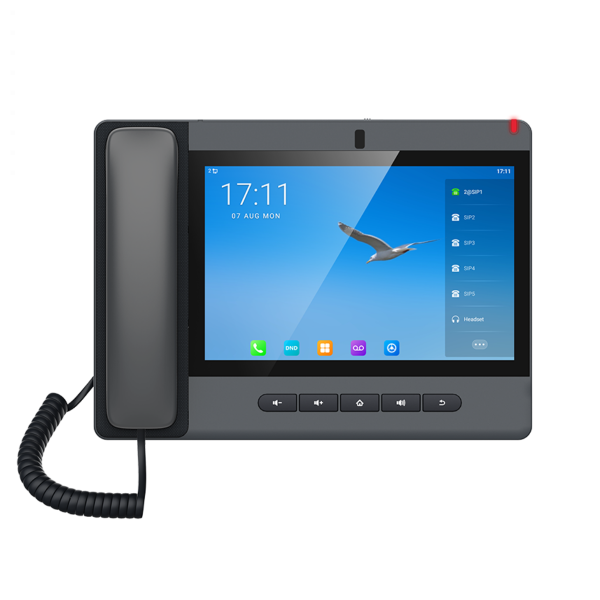

Fanvil A320 - Android Touch Screen IP Phone

A High End Touch Screen Enterprise IP Phone Running on Android 9.0, Many of its Features Include - Built in Bluetooth 5.0, Built in 2.4GHz and 5GHz Wi-Fi, 20 SIP Lines, 116 DSS Keys and HD Voice

About the Fanvil A320

The Fanvil A320 is a high end enterprise IP Phone that runs on Android 9.0. Offering a seamless touch operation experience with 116 DSS keys, a 10.1 Inch Colour Touch Screen, Wi-FI and Bluetooth.

Daily communicaton is easy, a built in adjustable camera and HD handset, the Fanvil A210 provides excellent audio and voice for group conferences. Compatible with SiP protocol, its perfect for office management centres, supporting functions including video calls, intercom and monitoring.

Intuitive Interface - Convenient Operation

The Fanvil A320 adopts the design of physical buttons and touch screen. Paired with the easy to navigate user interface, it provides an exceptional using experience.

Privacy Control

The Fanvil A320 has a built in 8MP HD Camera with a privacy cover to protect your privacy when online. It supports video codec H.264 for two way HD video calls, the camera angle can be adjusted via the rotary button to change the height.

Clear Voice

Fanvil A320 supports audio codec Opus and G.722. Equipped with a HD Voice Handset, it delivers outstanding audio quality and crystal clear voice communication, ensuring distraction free conversation.

Audio / Video Conference

The Fanvil A320 supports 10 way audio conferencing and 3 way video conferencing, facilitating online collaboration within any company and significantly enhancing communication efficiency.

Enhanced Features

With built in Wi-Fi and Bluetooth 5.0, the A320 can support Bluetooth Headsets enabling handsfree communication. The integrated USB 2.0 interface allows for external connections including USB drives and USB Headsets.

Highlights

• 10.1 Inch Colour Touch Screen
• 116 DSS Keys, 20 SIP Lines
• Supports 10 Way Audio Conferencing and 3 Way Video Conferencing
• Built in Adjustable 8 Mega Pixel Camera witha Privacy Cover
• Supports HD Audio with G.722 and Opus
• Supports Video Codec H.264, Providing Premium HD Video Calls
• Built in 2.4GHz and 5GHz Wi-Fi and Built in Bluetooth 5.0
• Dual Gigabit Ports, Integrated PoE

Specifications:

Generic

• 20 SIP Lines, HD Voice
• Supports Video Calls, PoE Enabled
• 10.1 Inch (12080 x 800) Colour Touch Screen
• Handset / Handsfree / Headset Mode
• Intelligent DSS Keys (Virtual Buttons)
• Optional External Power Supply (Not Included)

Operating System

• Android 9.0 Operating System with Higher Security and Better Compatibility
• Built in Applications - Files, Calendar, Gallery, Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video, Music
• Secondary Development of API
• Supports Third Party Application Installation

Phone Features

• Local Phonebook (2000 Entries)
• Remote Phonebook (XML/LDAP, 2000 Entries)
• Intelligent Search for Contacts and Call Log
• Call logs (In / Out/ Missed, 1000 Entries)
• Black/White List Call Filter
• Screen Saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft Keys
• Network Time Synchronisation
• Built-in Bluetooth 5.0: Supports Bluetooth Headset / Bluetooth of Mobile Device
• Built-in Wi-Fi: 2.4GHz, 802.11 b/g/n; 5GHz, 802.11 a/n/ac
• Support Recording
• Action URL / Active URI
• UaCSTA
• Audio/Video Recording
• SIP Hotspot
• Group Broadcasting
• Action Plan, Group Listening

Call Features

• Call Out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting, Intercom
• Caller ID Display, Speed Dial
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forward (Always / Busy / No Answer)
• Call Transfer (Attended / Unattended)
• Call Park / Pick Up (Depending on Server)
• Do-Not-Disturb, Redial
• Auto-Answering
• Voice Message (With Server)
• 3 Way Conference
• Hot Line, Hot Desking, BLF

Video

• Video Decoding - H.264 /H.265(Optional)
• Video Call Resolution - CIF/VGA/4CIF/720P/1080P
• Image Format - JPEG/PNG/BMP
• Video Format - MP4
• Bandwidth Selection - 64kbps~4Mbps
• Frame Rate Selection - 5~30fps
• Video from Remote Site can be Displayed in Full Screen
• Video Call, Video Preview
• Camera - 8MP - Adjustable Angle - Privacy Shutter

Audio

• HD Voice Microphone/Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec - G.711a/u, G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In-Band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode:IPv4
• IP Configuration - Static / DHCP
• Network Access Control: 802.1x
• VPN - OpenVPN (Requires Third-Party App Support)
• VLAN, LLDP, CDP, QoS

Package Contents

• Fanvil A320 IP Phone
• Handset, Handset Curly Cord
• Ethernet Cable, Desk Stand
• Quick Installation Guide
