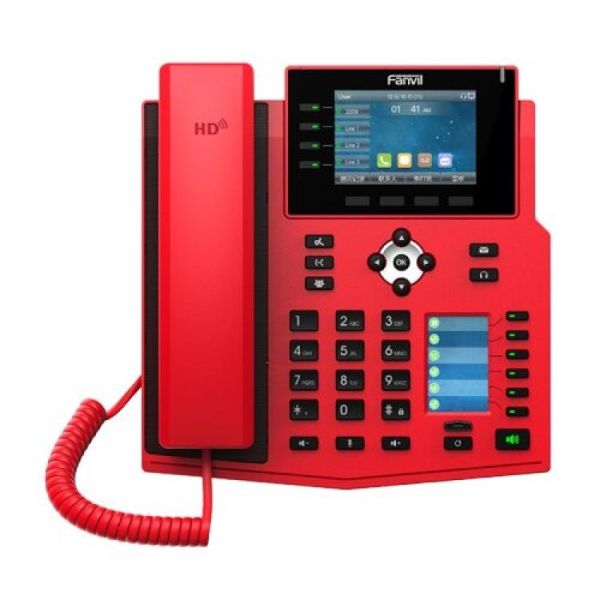

Fanvil X5U-R Enterprise IP Phone

Fanvil X5U-R Enterprise IP Phone

Special Red - Designed for Application Scenarios Where Phones Need to be Seen Easily - Features Include - SIP Hotspot, Call Recording, 2 Colour Displays with 30 DSS Keys

The Fanvil X5U-R Special Red Enterprise IP Phone can be recognised clearly in the distance due to its Special Red Colouring. It is designed to be used in special application scenarios where devices need to be seen easily in an emergency, for example - in Fire Stations, Hospitals, Government Agencies etc.

High Definition Audio - Harman Speaker

Given to superb Harman Speaker and Wideband Codec G.722 and Opus, HD Audio in the Special Red Fanvil X5U-R IP Phone enables users to pick up clear audio, even in noisy environments, enabling crystal clear and high efficient group communication.

2 Colour Displays with 30 DSS Keys

With a 3.5 Inch Colour Display and a 2.4 Inch Colour Side Display as well as 30 Programmable Keys with LED Light, the elegant Fanvil X5U-R provides users with an intuitive access to different functions in an emergency.

Greater Interoperability and Collaboration

Matched with accessories such as Built in Bluetooth, Wi-Fi via Wi-Fi Dongle and EHS Headset via EHS Cable, the Fanvil X5U-R helps users to multi-task and respond to the emergency quicker.

Call Recording

The Fanvil X5U-R can help users record dialogue for the double check in future, which can be saved in three ways - Local, Network and SIP Info Recording.

SIP Hotspot

The Red Fanvil X5U-R - Worked as the SIP Hotspot can expand SIP Accounts to other IP Phones and achieve group ringing in LAN. When one client receives a call, all the clients will ring. Once the call is answered, all of them will stop ringing.

Fanvil X5U-R Special Red IP Phone Features

• HD Audio with Harman Speaker and Wideband Codec G.722 and Opus
• 3.5 Inch 480 x 320 Pixel Colour Display
• 2.4 Inch 320 x 240 Pixel Colour SIde Display
• 16 SIP Lines, SIP Hotspot, 3 Way Conference
• 30 DSS Keys, 4 Line Keys with LED Light
• Dual Gigabit Port, PoE Integrated
• Supports Built in Bluetooth
• Supports EHS Wireless Headset
• Supports Wi-Fi via Wi-Fi Dongle
• Support IPv4, IPv6 Protocol
• Stand with 2 Adjustable ANgles of 45 and 50 Degrees
• Compatible with Major Platforms Such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc

Generic Features

• HD Voice
• 16 SIP Lines
• PoE Enabled
• 2 LCD's (Main & DSS)
• Handset / Hands-Free / Headset Mode
• Intelligent DSS Keys
• Desktop Stand / Wall Mounted (Additional Wall Mounting Parts Needed)
• Optional External Power Supply - (Not Included)

Phone Functions

• Local Phonebook (2000 Entries)
• Remote Phonebook (XML/LDAP, 2000 Entries)
• Call Logs (In/Out/Missed, 1000 Entries)
• Black/White List Call Filter
• Screen Saver
• Voice Message Waiting Indication (VMWI)
• Programmable Soft Keys
• Network Time Synchronization
• Built-in Bluetooth 2.1 - Support Bluetooth Headset
• Support Wi-Fi Dongle
• Support Plantronics Wireless Headset (Through Plantronics APD-80 EHS Cable)
• Support Jabra Wireless Headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Flash Drive or Server)
• Action URL / Active URI
• uaCSTA
• Full-Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In-Band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP/ DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Call Functions

• Call Out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on Server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (With Server)
• 3-Way Conference
• Hot Line
• Hot Desking

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC
• Wideband Codec - G.722, AMR-WB, Opus

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Web-Based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• Main LCD x 1 - 3.5 Inches (480x320) Colour Screen
• DSS Key-Mapping LCD x1 - 2.4 Inches (240x320) Colour Screen
• Keypad - 42 Keys - Which Include - 4 Line Keys (With LED Indicator Light), 4 Soft Keys, 6 Function Keys (Hold, Call, Forward, Conference, MWI, Headset, Redial, 4 Navigation Keys, 1 OK Key, 12 Standard Phone Digits Keys, 3 Volume Control Keys (Up/Down/Mute (Microphone)
• 6 DSS Keys (With LED Indicator Light), 1 Page Switch (PS) Key (With LED Indicator Light), 1 Hands-Free Key (With LED Indicator Light)
• HD Handset (RJ9) x 1
• Standard RJ9 Handset Wire x 1
• 1.5M CAT5 Ethernet Cable x 1
• Back Rack x 1
• Status Indicator Light x1 (Red)
• RJ9 Port x 2 - Handset x 1, Headset x 1,  RJ45 Port x 2 - Network x 1, PC x 1 (Bridged to Network)
• USB 2.0 Port x 1 - Standard A, Connect with Wi-Fi USB Dongle or Flash Driver
• Safety Keyhole x 1

Fanvil X5U-R Enterprise IP Phone Package Contents

• Fanvil X5U-R Enterprise IP Phone
• Basic Manual
• Stand
• Curly Cord & Handset
• Network Cable
