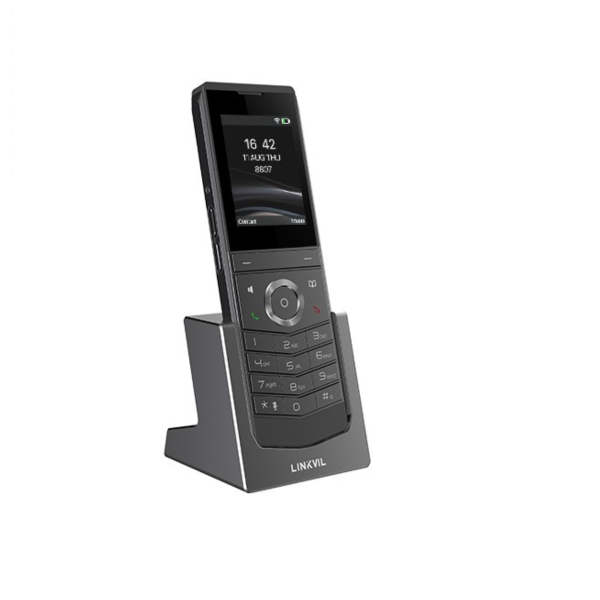

Fanvil Linkvil W611W - Portable Wi-Fi Phone

About the Fanvil Linkvil W611W

The Fanvil Linkvil W611W is a portable, elegant Wi-Fi Phone designed for mobile communication applications. Certified to IP67 standard the W611W is protected from water and dust damage as well as accidental drops and falls from a 1.8 metre height.

Displaying a clear and intuitive user interface on a 2.4 Inch colour display, the Linkvil W611W is ideal for users who want to benefit from a cordless handset without the need for a base station, the W611W uses the internet connection to make VoIP calls.

It has an excellent performance in different environments with humidity and dust. The W611W integrates Wi-Fi 6, bringing a superb wireless communication experience.

With high quality audio capability, the W611W integrates both Wi-Fi 6 & Bluetooth 5.0 ready for pairing headsets and other mobile devices. What’s more with up to 9 hours of talk time or 200 hours of standby time, the W611W is the ideal wireless Wi-Fi solution for enterprise, retail, hotels and warehouses.

Highlights

• 2.4 Inch 240 x 320 Colour Screen with Intuitive User Interface
• High Protection Level of IP67 which is Waterproof, Dustproof and Drop Safe from a 1.5 Metre Height
• Supports Dual Band Wi-Fi 802.11 a/b/g/n/ac/ax (Wi-Fi 6, 2.4GHz & 5GHz)
• Supports IEEE802.11k/v/r Roaming
• Support WPA / WPA2-PSK and 802.1X EAP Encryption to Ensure Communications Security
• Built in Bluetooth 5.0 can be used to Connect Headsets
• Supports Distance Sensor and Self Adaptive Light Sensing Screen will be off During a Call on the Handset
• One Configurable Push to Talk (PTT) Button for Quick Dial
• Up to 9 Hours Talk Time and up to 200 Hours of Standby Time

Specifications:

Generic

• 4 SIP Lines / Caller ID
• Handsfree / Handset / Headset Mode
• Supports Cutom DSS Keys
• HD Voice / Belt Clip / Desktop Charging Base
• 2.4 Inch 240 x 320 Colour High Definition LCD Display
• Standard Type C Interface
• Rechargeable Lithium Battery
• Supports Wi-Fi 6
• Supports Bluetooth 5.0
• Multi Language - English / Chinese / German / French / Italian / Portuguese / Russian / Spanish

Phone Features

• Network Time Synchronisation
• Local Contacts
• Remote Phonebook (XML/LDAP, 1000 Entries)
• Multi Language Option
• Call Logs
• Blocked List / Allowed List
• Screensaver
• Personalised Ringtone Settings
• Screen Backlight Adjustment
• Memorandum / SMS Service
• Voicemail (MWI)
• Menu Encryption Settings
• Keypad Lock / Backlight Adjustment
• Volume Adjustment

Call Features

• Auto Answering
• Call Out / Answer / Reject
• Call Waiting / Switch
• Call Forwarding / Speed Dial
• Intercom / Anonymous Calls
• 3 Way Conference
• Restrict Outgoing Calls / IP Direct Dial
• Speed Dial / Emergency Call
• Caller ID Display
• Inquiry (Dialing, Incoming and Outgoing Calls)
• Do not Disturb
• PTT One Key Call
• Self Adaptive Light Sensing Screen Off (During a Call on the Handset)

Audio

• Narrowband Codec - G.711a/u, G.729AB,iLBC
• Wideband Codec - G.722, Opus
• Acoustic Echo Cancellation (AEC) - Maximum 96ms Echo Delay Cancellation
• Voice Activity Detection（VAD）/ Comfort Noise Generation（CNG）/ Background Noise Estimation (BNE)
• Packet Loss Concealment
• Dynamic Adaptive Jitter Cache up to 300ms
• DTMF - In-band, Out-of-Band - DTMF-Relay(RFC2833) / SIPINFO

Network

• Built in Wi-Fi Support - 802.11 a/b/g/n/ac/ax Protocol - 2.4GHz IEEE 802.11 b/g/n/ax, 5GHz IEEE 802.11a/n/ac/ax, Encryption - WPA /WPA2-PSK, 802.1XEAP
• Built in Bluetooth 5.0 Module

Power Management

• Reminder when Charging
• Full Reminder
• Low Battery Prompt
• After Abnormal Shutdown, Charging will Automatically Start
• Real Time Statistics / Display of System Power

Protocols

• RTP/RTCP/SRTP
• STUN / DHCP / SNTP / FTP/TFTP / HTTP/HTTPS / TR-069

Deployment and Maintenance

• Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / DHCPOPT66 / SIPPnP / TR-069
• Web Management Interface
• Web Based Packet Dump
• Configuration Export / Import
• Firmware Upgrade / Syslog

Physical Specifications

• IP67 Certified
• Dust and Waterproof / Drop Height - 1.8m
• Shell Material - Plastic Shell, Two Colour Injection Molding
• Rechargeable 1900 mAh Battery
• Charging Port - USB Type C
• 3.5mm Headset Jack
• Handset Dimensions -160mm x 53mm x 16mm
• Handset Weight - 156g

Package Contents

• Fanvil Linkvil W611W Wi-Fi Phone
• Rechargeable Battery
• Charging Base / Power Supply Unit
• Belt Clip / Quick Start Guide
