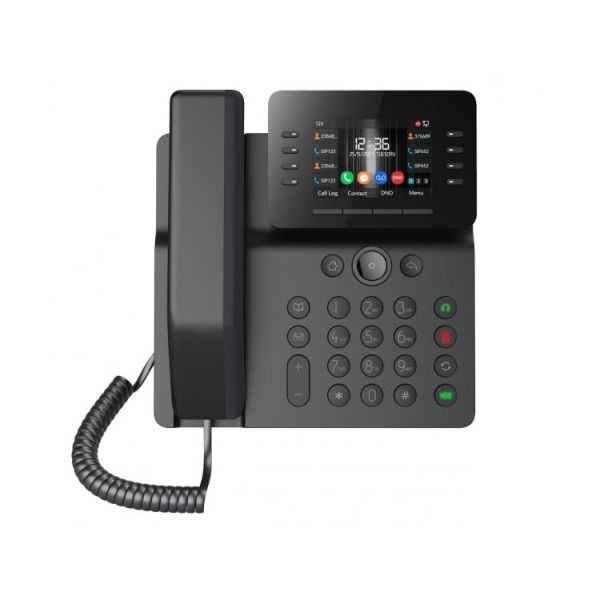

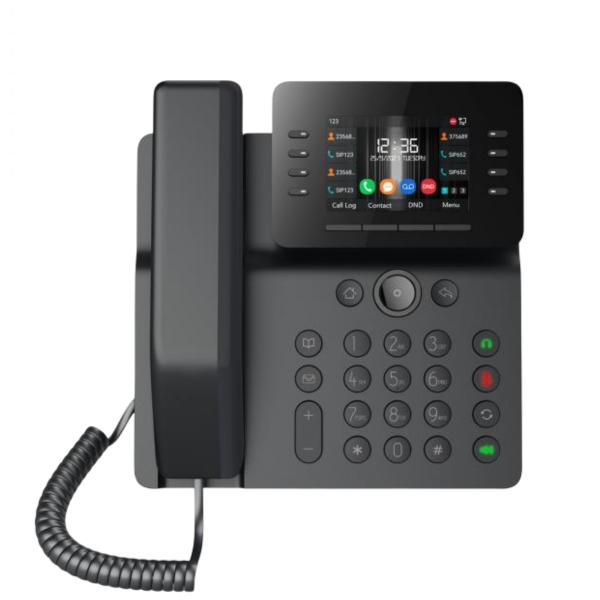

Fanvil V64 - Prime Business IP Phone

About the Phone

The Fanvil V64 is more than an efficient Telephone, but a delicate work of art that provides a smart and smooth business communication experience for enterprises. The Prime Business Phone features a Colour LCD Screen and built in Bluetooth 4.2 and 2.4G/5G Wi-Fi, making the V64 a perfect combination of elegant outside and powerful inside.

HD Colour Screen - Enjoy the View!

The 3.5 Inch Colour LCD Screen and Intuitive UI design make navigation easy and require minimal training, bringing the ultimate visual experience.

Crystal Clear Audio - Hear Every Detail

The V64 supports wideband audio codec Opus and G.722, whilst being coupled with Noise Reduction technologies and Full Duplex AEC, that bring an immersive listening experience.

6 Party Conference - Efficient Collaboration

The Fanvil V64 supports 6 Way Audio Conference, and its conference management mode enables you to manage the conference efficiently, such as hold, remove and mute the call if the participants.

Built in Wi-Fi and Bluetooth

With built in 2.4G/5G Wi-Fi and Bluetooth 4.2 the V64 brings wireless office experience and provides a high scalability with USB 2.0 Interface.

Link with Security Products

The V64 is compatible with SIP Standard and major mainstream platforms, V64 can be easily customised into various solutions for reducing investment.

Highlights

• 3.5 Inch Colour LCD Screen
• 12 SIP Lines, HD Voice
• Supports Audio Codec G.722 and Opus, HD Audio on Speakerphone and Handset
• Supports 6 Party Local Conference
• Available to Link with Security Products, can be easily Customised into Various Security Solutions for Reducing Investment
• Built in 2.4G/5G Wi-Fi and Bluetooth 4.2 means More Flexible Connectivity
• Dual Gigabit Ports, Integrated PoE
• Two Installation Methods of Desktop Stand and Wall Mountable - Wall Mount not Included
• Up to 21 DSS Keys, Every DSS Key can be set as Line/BLF/Speed Dial Key Etc

Generic

• 12 SIP Lines
• HD Voice, PoE Enabled
• 3.5 Inch (480 x 320) Colour Screen
• Handset / Handsfree / Headset Mode
• Intelligent DSS Keys
• Desktop Stand / Wall Mountable - Wall Mount not Included
• Power Supply is an Optional Extra and Not Included - If PoE is not Available the Power Supply will need to be Purchased

Phone Features

• Local Phonebook (1000 Entries)
• Remote Phonebook (XML / LDAP, 1000 Enries)
• Call Logs - Incoming / Outgoing / Missed - 1000 Entries
• Blocked List / Allowed List
• Screensaver / 6 Way Conference
• Voice Message Waiting Indication (VMWI)
• Programmable DSS / Soft Keys
• Network Time Synchronisation
• Built in Bluetooth 4.2 - Supports Bluetooth Headset / Pairing Mobile Devices
• Built in Wi-Fi - 2.4GHz, 802.11 b/g/n, 5GHz, 802.11 a/n/ac
• Supports Plantronics Wireless Headset Via Plantronics APD-80 EHS Cable
• Hot Line, Hot Desking

Audio

• HD Voice Microphone / Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16Khz Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726, G.729A/B, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In Band, Out of Band (RFC2833/ SIP INFO)
• VQM - Voice Quality Monitoring

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - OpenVPN / L2TP
• VLAN, LLDP, CDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN, DHCP, CDP,| LLDP, PPPoE
• 802.1x
• OpenVPN
• SNTP
• FTP/TFTP
• Supports Jabra Wireless Headset - Via Fanvil EHS20 EHS Cable

• Supports Recording Via Server
• uaCSTA
• SIP Hotspot
• Multicast
• Action Plan
• Group Listening

Call Features

• Call Out / Answer / Reject
• Mute / Unmute / (Microphone)
• Call Hold / Resume
• Call Waiting, Speed Dial
• Intercom, Caller ID Display
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always / Busy / No Answer)
• Call Transfer (Attended/Unattended
• BLF, Redial, Do not Disturb
• Call Parking/Pick-Up (Depending on Server)
• Auto Answering
• Voice Message (With Server)

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications

• LCD - 3.5 Inch (480 x 320) Colour Screen
• Keypad - 39 Keys including - 8 DSS Keys with LED Indicator Light, 6 Function Keys (Contact, Hold. MWI, Mute, Headset, Redial), 4 Soft Keys, 4 Navigation Keys, 1 OK Key, 1 Return Key. 12 Standard Phone Digit Keys, 2 Volume Control Keys, Up/Down, 1 Handsfree Key
• HD Handset (RJ9) x 1
• Standard RJ9 Handset Wire x 1
• 1.5M CAT 5.E Ethernet Cable x 1
• Desk Stand x 1
• Status Indicator Light x 1 (Red)
• RJ9 Port x2 - Handset x1, Headset x1
• RJ45 Port x2 - Network x1, PC x1 (Bridged to Network)
• USB 2.0 Port x` - Standard A, Connect with Flash Driver & USB Headset
• Security Lock Port x1
• Power - DC5V/1A or PoE
• Installation - Desktop Stand or Wall Mount (Wall Mount not Included)

Package Contents

• Fanvil V64 IP Phone
• Handset
• Handset Cord
• Desk Stand
• Ethernet Cable
• Quick Installation Guide
