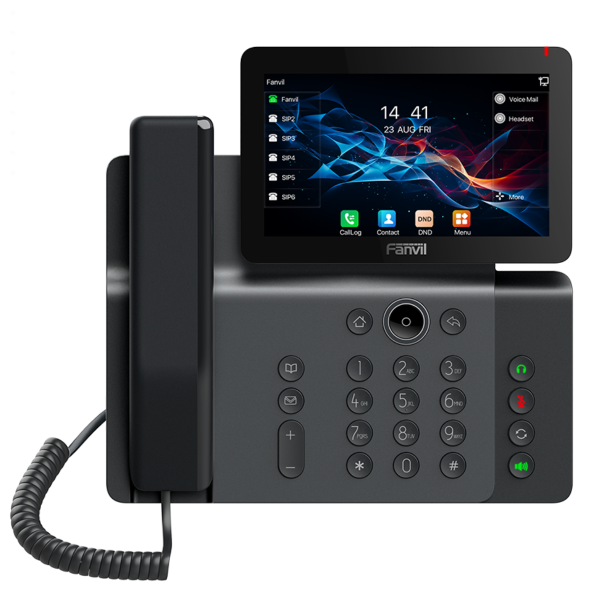

Fanvil V66 Prime Business IP Phone

A Smart Business IP Phone with a 7 Inch High Definition Adjustable Colour Touchscreen and Wired Handset - Designed for Advanced Business Users

About the V66 Prime

The Fanvil V66 Prime is a Smart Business IP Phone offers Crystal Clear Audio, Vibrant Video Calls, and Customisable Features. H.264 Video Codec, Wi-Fi and Bluetooth Connectivity provide unparalleled convenience and flexibility for modern business professionals.

Smart Screen - New UI

6 Way Audio Conference

The Fanvil V66 Prime supports 6 Way Audio Conferencing, offering a more efficient and convenient meeting experience. Built in 2.4G & 5G Wi-FI (Wi-Fi 6) and Bluetooth 5.4 ensure that the Fanvil V66 Prime provides a seamless wireless office experience.

Features

• Wired Handset and Keypad Surface with Antibacterial Material - Effectively Inhibits more than 99.5% of Bacteria Growth
• 7 Inch Adjustable Screen (0° to 40°) for Different Lighting Environments
• Receive Video Calls with Video Codec H.264
• 20 SIP Lines, Up to 116 (29*4) DSS Keys - DSS Keys can be Set as Line Keys / BLF Keys and Speed Dial Keys
• Supports 6 Way Audio Conference
• Two Installation Methods - Desktop Stand and Wall Mountable
• Supports Audio Codec G.722 and Opus, HD Audio on Speakerphone and Handset
• Built in 2.4G / 5G Wi-Fi, Supports Wi-Fi 6, Built in Bluetooth 5.4
• Available to Link with Security Products, Can be Easily Customised into Various Security Solutions - Reducing Investment

Specifications:

Generic

• Handset / Handsfree / Headset Mode
• PoE Enabled, Intelligent DSS Keys (Virtual Buttons)
• 7 Inch - 1024 x 600 Colour Screen
• 20 SIP Lines, HD Voice, Dual Gigabit Ports
• Desktop Stand / Wall Mount (Optional)
• Hall Switch Handset

Phone Features

• Local Phonebook (2000 Entries)
• Remote Phonebook (XML / LDAP)
• Call Logs In / Out / Missed - 1000 Entries
• Blocked / Allowed List - 1000 Entries
• Screen Saver, SIP Hotspot
• Voice Message Waiting Indication (VMWI)
• Programmable DSS / Soft Keys
• Network Time Synchronization
• Support Recording (Via Server)
• Built in Bluetooth 5.4 Supports Bluetooth Headset / Pairing Mobile Devices
• Supports Poly Wireless Headset (Through Poly APD-80 EHS Cable)
• Supports Jabra Wireless Headset (Through Fanvil EHS20 EHS Cable)
• Action URL / Active URI, uaCSTA, Dial Plan
• Personalised Ringtone Settings
• Multicast / Action Plan / Group Listening

Audio

• HD Voice Microphone / Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• Wideband ADC/DAC 16Khz Sampling
• Narrowband Codec - G.711a/u, G.723.1, G.726, G.729 G.729A/B, G.729B, G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In Band, Out of Band (RFC2833/ SIP INFO)
• VQM - Voice Quality Monitoring

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - OpenVPN / L2TP
• VLAN, LLDP, CDP, QoS
• Support SIP Backup Server
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Wi-Fi Security Mode - WPA / WPA2-PSK / 802.X.EAP

Call Features

• Call Out / Answer / Reject
• Mute / Unmute / (Microphone)
• Call Hold / Resume
• Call Waiting, Speed Dial
• Intercom, Caller ID Display
• Anonymous Call (Hide Caller ID), Ban Anonymous Call
• Call Forwarding (Always / Busy / No Answer)
• Call Transfer (Attended/Unattended
• Redial, Predial, Do not Disturb (DND / Timed DND)
• Call Parking/Pick-Up (Depending on Server)
• Auto Answering, SIP SMS
• Voice Message (With Server)
• 6 Way Audio Conferencing
• Hot Line, Hot Desking
• Call Back, IP Direct Dial
• Fuzzy Search Call, Action Plan, Dial Plan
• Call Completion, Default Ext Line

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
• Screenshot, Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog, Network Firewall
• Online Upgrade

Physical Specifications

• LCD - 7 Inch (1024 x 600) Colour Screen IPS
• Keypad - 27 Keys - Including 5 Function Keys (Contact / MWI / Mute / Headset / Redial)
• 4 Navigation Keys / 1 OK Key
• 1 Return Key / 1 Home Key
• 12 Standard Phone Digit Keys
• 2 Volume Control Keys - Up / Down
• 1 Handsfree Key

Package Contents

• Fanvil V66 Prime IP Phone
• Handset, Handset Cord
• Deskstand
• Network Cable
• Quick Installation Guide
