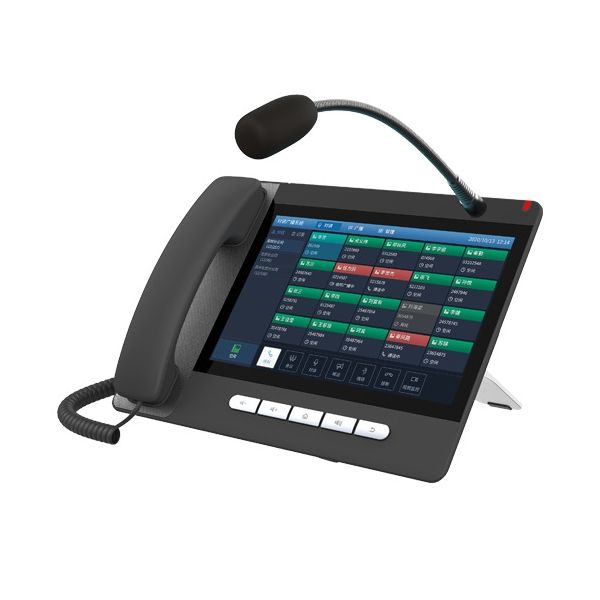

Fanvil A32i | Android Touch Screen Console IP Phone - New

Fanvil A32i | Android Touch Screen Console IP Phone

The Fanvil A32i is a visualisation paging console phone for industry customers, it is equipped with a gooseneck microphone and supports HD calling. Its stylish look and powerful functions make it stand out and the Android 9.0 operating system provides better compatibility, higher security and a more intelligent and smoother touch operation experience. The 10.1 inch Colour Touch Screen, supported by 3rd Party Apps, built in Wi-Fi and Bluetooth makes daily communication smarter and simpler. As a mini management device the Fanvil A32i caters for management requirements in small and medium call centres and helps to improve efficiency and has the ability to handle any emergency.

Business Style Elegant Design

Featuring the business elegant outlook with smooth lines, a large Colour Touchscreen and user-friendly interface the Fanvil A32i is the ideal management phone for the contact centre.

Outstanding HD Audio/Video

With wideband codec G.722 and Opus, the Fanvil A32i provides users with crystal clear audio communication. Video codec H.264 provides HD video Calls when connected with the optional Fanvil CM60 Camera (CM60 Camera not included)

Easier Operation Experience

Fanvil A32i adopts the design of touch screen and buttons, allowing users to enjoy a smoother operation experience, its easy for everyone to use with little or no training.

Powerful Android System

Android 9.0 OS in the Fanvil A32i ensures the stable operation of software whilst supporting the installation of third party apps, providing greater compatibility and scalability.

Fanvil Broadcasting System

The Fanvil A32i is equipped with a Fanvil Broadcasting system which is easier for broadcasting applications and system management.

Support Unmanned Mode

The A32i can be connected to a mobile phone allowing remote control of the system by the administrator to provide easier real time management.

Highlights

• Android 9.0 Operating System
• 20 SIP Lines
• Gooseneck Microphone
• 10.1 Inch Colour Touch Screen with 112 DSS Keys
• Compatible with Fanvil CM60 Camera - Not included
• Supports Three Way Video Conference
• Supports H.264 Video Codec
• Built in Harman Speaker | Hotspot
• Built in 2.4G/5G Wi-Fi and Bluetooth
• HD Audio on Speaker and on Handset
• Dual Gigabit Ports, Integrated PoE
• Stand with 2 Adjustable Angles of 40° and 50°
• Compatible with Major Platforms Including Asterisk, Broadsoft, 3CX, Avaya and more
• EHS

Generic

• 20 SIP Lines
• HD Voice
• Support Receiving Video Calls
• PoE Enabled
• 10.1 Inch (1280x800) Colour Touch Screen
• Handset / Handsfree / Headset Mode
• Intelligent DSS Keys (Virtual Buttons)
• Optional External Power Supply (Not Included)

Operating System

• Android 9.0 OS with Higher Security and better Compatibility
• Built in Applications - Files, Calendar, Gallery. Browser, Email, Calculator, Notepad, Sound Recorder, Clock, Video, Music
• Supports 3rd Party Applications
• Secondary Development of API

Phone Features

• Local Phonebook - 2000 Entries
• Remote Phonebook (XML/LDAP, 2000 Entries)
• Intelligent Search for Contacts and Call Log
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on Server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (On Server)
• Three Way Audio Conference
• Hot Line
• Hot Desking
• BLF
• Call Logs (In/Out/Missed, 1000 Entries)
• Black/White List Call Filter
• Screen Saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS / Soft Keys
• Network Time Synchronisation
• Built in Bluetooth 5.0 - Supports Bluetooth Headset / Bluetooth of Mobile Device
• Built in Wi-Fi - 2.4GHz - 802.11b/g/n, 5GHz - 802.11 a/n/ac
• Supports Recording
• Action URL / Active URI
• UaCSTA
• Audio / Video Recording
• SIP Hotspot
• Group Broadcasting
• Action Plan
• Group Listening

Video

• Video Decoding - H.264 /H.265(Optional)
• Video Call Resolution - CIF/VGA/4CIF/720P/1080P
• Image Format - JPEG/PNG/BMP
• Video Format - MP4
• Bandwidth Selection - 64kbps~4Mbps
• Frame Rate Selection - 5~30fps
• Video from Remote Site can be Displayed in Full Screen
• Three Way Video Call with External Fanvil CM60 Camera - Optional Accessory - Not Included
• Video Preview

Audio

• HD Voice Microphone/Speaker (Handset/Handsfree, 0 ~ 7KHz Frequency Response)
• HAC Handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec - G.711a/u, G.729AB, iLBC
• Wideband Codec - G.722, Opus
• Full Duplex Acoustic Echo Canceller (AEC)
• Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF - In-Band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network

• Physical - 10/100/1000 Mbps Ethernet, Dual Bridged Port for PC Bypass
• IP Mode:IPv4
• IP Configuration - Static / DHCP
• Network Access Control: 802.1x
• VPN - OpenVPN (Requires Third-Party App Support)
• VLAN
• LLDP
• CDP

Call Features

• Call Out / Answer / Reject
• QoS

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• CDP
• LLDP
• PPPoE
• 802.1x
• OpenVPN (Requires Third Party App Support)
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Supports the Third Party Communication APP
• Supports Web, Telnet
• Supports Encrypted Configuration Files Download with AES
• Supports Web Upgrade
• Supports Factory Reset Data

Physical Specifications

• LCD x1 - 10.1 Inch (1280 x 800) Colour Touch Screen
• Physical Keys x5 - Volume-/Volume+/Home/Handsfree/Return
• HD Handset - RJ9 x1
• 1.5 CAT5 Ethernet Cable
• Gooseneck Microphone x1 - Directional Microphone, Frequency Response - 20Hz~20KHz, SNR - ≥60 dB.1kHz at 1 Pa
• Back Rack x1
• RJ9 Port x2 - Handset x1, Headset x1
• RJ45 Port x2 - Network x1, PC x1 (Bridged to Network)
• USB 2.0 Port x1 - Standard A, Connect with Flash Driver
• Safety Keyhole x1
• Power - 5V/2A (PSU Not Included) or PoE
• Power Consumption (PoE): 2W ~ 9.77W
• Power Consumption (Adapter): 1.2W ~ 7.75W - Not Included
• Desktop Stand with Two Angles - Angle 1 - 309mm x 214mm x 187mm, Angle 2 - 309mm x 226mm x 167mm
