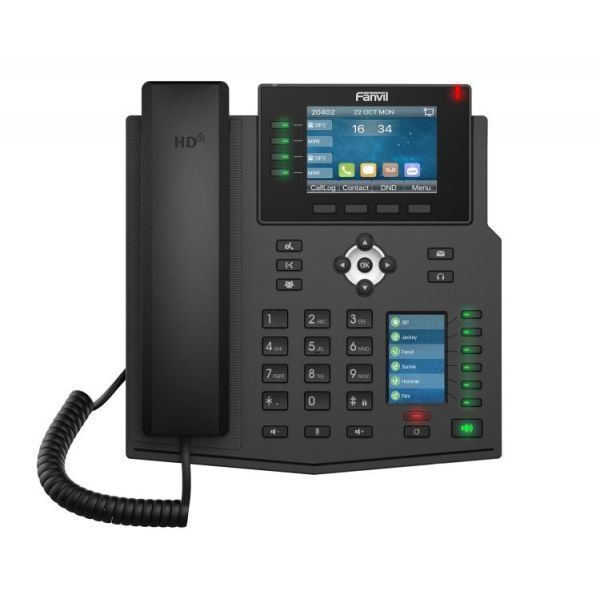

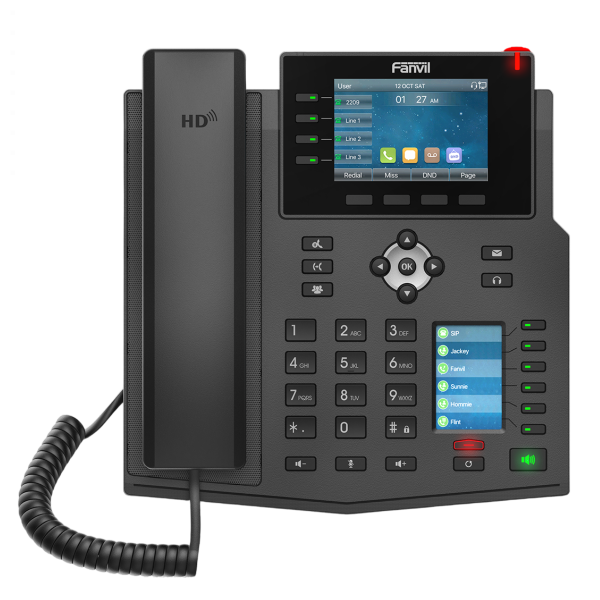

Fanvil X5U V2 Enterprise IP Phone

The Fanvil X5U-V2 Enterprise IP Phone is a professional business VoIP phone designed for users who need advanced call handling, multiple SIP accounts and flexible connectivity. With 16 SIP lines, 6-way audio conferencing, dual colour displays, up to 30 DSS keys, built-in Bluetooth 4.2 and integrated PoE, the X5U-V2 is ideal for busy offices, reception desks, executives and business users.

The X5U-V2 features a 3.5-inch colour main display and a 2.4-inch colour DSS display, providing clear access to call information, line status and programmable functions. Four dedicated line keys and six physical DSS keys with LED indicators provide quick access to frequently used extensions and features.

HD Audio for Clear Business Calls

The Fanvil X5U-V2 delivers HD audio through the handset and speakerphone, supporting wideband codecs including G.722 and Opus for clear, high-quality conversations.

Built-in Bluetooth 4.2 allows compatible wireless headsets to be connected directly to the phone, while EHS headset support provides additional flexibility for professional users.

Advanced Call Management

Supporting 16 SIP lines and 6-way audio conferencing, the X5U-V2 is designed for users who regularly handle multiple calls and extensions.

The intelligent DSS system supports up to 30 programmable DSS keys across five pages, making it easy to monitor colleagues, departments and frequently used numbers. The phone also supports SIP hotspot functionality, providing additional flexibility for compatible multi-phone VoIP installations.

Dual Displays & Flexible Connectivity

The X5U-V2 combines two colour displays in a professional, easy-to-use design:

• 3.5-inch 480 x 320 colour main display
• 2.4-inch 240 x 320 colour DSS display
• 4 dedicated line keys
• 6 physical DSS keys with LED indicators
• Up to 30 DSS keys across five pages

For network connectivity, the phone provides dual Gigabit Ethernet ports and integrated PoE, allowing power and network connectivity to be delivered through a single Ethernet cable.

An optional Fanvil WF20 USB Wi-Fi Dongle can also be used where a wired network connection is not required.

Compatibility

The Fanvil X5U-V2 is designed for use with a wide range of SIP-based VoIP telephone systems, hosted VoIP services and business communication platforms. It can be deployed with compatible platforms including 3CX, Asterisk, BroadWorks/Broadsoft, Metaswitch, Elastix, Avaya and other SIP-compatible systems.

Ideal for Business VoIP

With its combination of 16 SIP lines, 6-way conferencing, dual colour displays, 30 DSS keys, Bluetooth 4.2, SIP hotspot, PoE and Gigabit Ethernet, the Fanvil X5U-V2 is a versatile enterprise IP phone for modern business communications.

It is particularly well suited to receptionists, office managers, executives, sales teams, customer service departments and other users who need quick access to multiple lines and extensions.

Key Features

• 16 SIP lines
• 6-way audio conferencing
• SIP hotspot
• 3.5-inch 480 × 320 colour main display
• 2.4-inch 240 × 320 colour DSS display
• Up to 30 programmable DSS keys
• 4 dedicated line keys with LED indicators
• HD audio on handset and speakerphone
• Built-in Bluetooth 4.2
• Bluetooth headset support
• EHS wireless headset support
• Optional Wi-Fi via Fanvil WF20 USB dongle
• Dual Gigabit Ethernet ports
• Integrated PoE
• USB 2.0 Type-A port
• IPv4 and IPv6 support
• OpenVPN, TLS and SRTP security
• Local phonebook with up to 2,000 entries
• Remote XML/LDAP phonebook support
• Up to 1,000 call history entries
• Call recording via USB flash drive or server
• Compatible with major SIP-based VoIP platforms

Technical Specifications

SIP & Call Features

• SIP Accounts - Up to 16 SIP lines
• Conference - 6-way audio conference
• SIP Hotspot
• Call Transfer - Attended and unattended
• Call Forwarding - Always, busy and no answer
• Call Waiting, Call Hold,
• Call Parking & Pickup - Supported - depending on server
• Intercom, Hot Desking
• Speed Dial, Do Not Disturb
• Auto Answer

Audio

• HD Voice - on handset and speakerphone
• Wideband Codecs - G.722, Opus
• Narrowband Codecs - G.711A/U, G.723.1, G.726, G.729, iLBC
• Handset - HD handset with HAC support
• Speakerphone - Full-duplex hands-free speakerphone
• Echo Cancellation - Acoustic Echo Canceller (AEC)
• Noise Reduction
• DTMF - In-band, RFC2833 and SIP INFO

Connectivity

• Ethernet - 2 × 10/100/1000 Mbps Gigabit Ethernet
• PoE - Integrated Power over Ethernet
• Bluetooth - Built-in Bluetooth 4.2
• Wi-Fi - Supported via optional Fanvil WF20 USB Wi-Fi dongle
• USB - 1 x USB 2.0 Type-A
• Headset - RJ9 headset port
• EHS - Supported with optional compatible EHS accessories

Network & Security

• IP Support - IPv4 / IPv6
• IP Configuration - Static IP, DHCP, PPPoE
• VLAN, QoS
• VPN - L2TP / OpenVPN
• Network Security - 802.1X
• Transport - UDP / TCP / TLS
• SRTP, LLDP, STUN, RTCP-XR

Phonebook & Call Management

• Local Phonebook - Up to 2,000 entries
• Remote Phonebook - XML / LDAP
• Call History - Up to 1,000 entries
• Contacts - Local and remote contact management
• Blacklist / Allow List, Caller ID
• Voice Message Waiting
• Call Recording - via USB flash drive or server

Provisioning & Management

• Auto Provisioning - FTP / TFTP / HTTP / HTTPS
• DHCP Opt66, SIP PnP, TR-069
• Web Management, Firmware Upgrade
• Configuration Backup - Import / export
• Phonebook Backup - Import / export
• Syslog
• Packet Capture - Web-based packet dump

Package Contents

• Fanvil X5U-V2 Enterprise IP Phone
• HD handset
• Handset curly cord
• Desktop stand
• Ethernet cable
• Quick Installation Guide

*Power supply is optional and is not included as standard
