EnGenius DuraFon PSL-Base Unit & DuraFon Pro-HC Handset

About the EnGenius DuraFon

The EnGenius DuraFon is a Digital Long Range Cordless System tht at enables long range communication in a variety of environments.

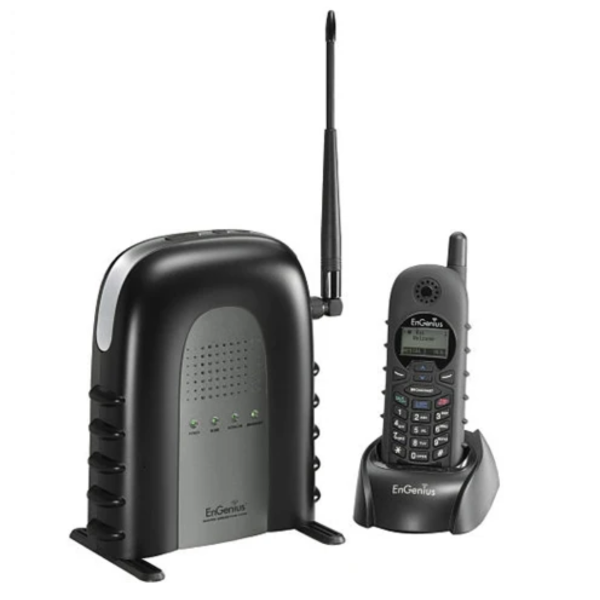

The Cordless System consists of the EnGenius DuraFon PSL Base Station and the option to add up to 9 of the DuraFon Pro-HC Handsets.

Effective communication is paramount in fast moving work environments. Traditional Cordless Phones offer limited range, Wi-Fi Phones use vital bandwidth, whilst Smarphones cannot withstand drops. This often results in delays, frustration, and reduced productivity.

With DuraFon, these problems are overcome thanks to its unparalleled range and durability. The DuraFon's durable construction minimises the need for costly replacements, and its Walkie Talkie feature provides instant, on demand communication in any situation, even in emergencies.

Enhancing communication with reliable long range performance, the EnGenius DuraFon serves a wide array of industries including - Assisted Living, Supermarkets, Healthcare, Warehouses, Manufacturing, Outdoor Environments, and more.

DuraFon is the ultimate solution for industrial communication, significantly enhancing workplace efficiency, safety, and overall operations.

The Long Range Cordless System is expandable - Base Stations and Handsets can be easily added as needed - supporting up to 8 Bases and up to 90 Handsets.

System Features

• Works with a Standard Analogue Line or Integrates Seamlessly with any PBX or IP-PBX System
• Available with 1-9 DuraFon Pro HC Handsets
• Upgradeable and Scalable System - Supports up to 8 Base Units for Extended Coverage
• Works with - DuraFon PRO or DuraFon UHF Handsets (up to 90 Handsets)
• Versatile Communication Tools - Simultaneous Alerts and Broadcasts, Intercom and Speakerphone
• No Recurring Costs, Easy to Program and Install
• Caller ID, SMS Messaging Between Handsets, Broadcast Facility
• Rugged, Durable, Drop Tested to WIthstand 6 Foot Drops Over 50 Times onto Concrete Floors
• Flexible Port Dedication - Single, Group, or All, PBX Compatible
• Call Features - Auto Attendant, Ring Group / Hunt Group Support, Conference Calling, Modifiable Flash and DTMF Timing, Base Station Speakerphone, Base Station Intercom / Broadcast to Handset
• Battery and Charger - Li-Ion Battery Technology, Up to 6 Hours of Talk Time, Up to 50 Hours of Standby Time, Charge Time - Up to 4 Hours
• Long Range Coverage - Up to 12 Floors in Offices and Hotels, Up to 250,000 Square Feet in Retail Stores and Warehouses, and up to 300 Acres on Open Land

About the DuraFon PSL-Base Unit

The DuraFon PSL-BU (PRO, Single-Line) is a long range Cordless Phone Expansion Base, ideal for extending your existing DuraFon PRO or DuraFon UHF multi-line system whenever you need an additional port or line.

The PSL Base Unit can work behind a standard phone line or analogue ports from the PBX or IP-PBX. As part of the DuraFon Pro System the DuraFon PSL can be part of a system with up to 8 Base Units and can support up to 90 Handsets. It is also compatible with the DuraFon PRO, DuraWalkie and DuraFon UHF Handsets.

Product Highlights

• Coverage - Up to 12 Floors in Offices and Hotels, Up to 250,000 Square Feet in Retail Stores and Warehouses, and up to 300 Acres on a Farm
• Expandable - Supports up to 8 Base Units for Extended Coverage
• Works with - DuraFon PRO or DuraFon UHF Handsets (up to 90 Handsets)

Features

• Digital Long Range Cordless Base Station
• Multi-Base Capicity with DuraFon Pro
• 900MHz ISM Band
• Compatible Handsets - DuraFon PRO, DuraWalkie & DuraFon UHF
• Multi- Base - Supports up to 8 Additional DuraFon Base Units
• Multi-Handset - Supports up to 90 Handsets
• Digital Spread Spectrum (DSS) Technology for Privacy and Clarity

Specifications

• Buttons - Reset, Registration
• Jack(s) - Phone, Line, Audio In x 1 (3.5mm), DC In
• LED Indicators - Power, In Use, Intercom, Broadcast

Electrical Specifications

• Frequency - 902-928MHz
• RF Power - Peak: 708mW, Average - 304mW
• Channel Spacing - 400 kHz
• Number of Channels - 128
• Modulation -  MSK
• Multiple Access - Frequency Hopping TDMA
• Frequency Hopping Rate - 100 per Second
• TDMA Frame Length - 10 ms
• Number of Talk Paths - 1
• Receiver Sensitivity - < -108 dBm (@ BER 10-2)
• Antenna Connector - Reverse TNC
• Antenna Gain - 2 dBi (Included),  3 dBi External (Optional), 6 dBi External (Optional)
• TX Power Control Range - N/A
• Telephone Interface - RJ11 x 2
• Speech Coding - 8Kbps G.729A
• Channel Coding - 8Kbps Convolutional+CRC
• Transmission Data Rate - 170.678 Kbps
• User Data Rate - 128 Kbps Duplex
• Duplex - Time Division Duplex (TDD)
• Voice Quality - TIA/EIA-470B
• Number of System ID - 65,536
• Ring Signal - 20-50 Hz, 12–90 Vrms
• Flash Time - 100-900 ms Programmable
• Power Source - 120V/12V AC/DC Adapter

Weight and Dimensions

• Weight - 424g
• Dimensions - 161mm x 42mm x 188mm (6.3 Inches x 16.5 Inches x 7.4 Inches) (W x D x H)

About the DuraFon Pro-HC Handset

The DuraFon PRO Handset isn't just a Cordless Phone; it's also a Two Way Radio built for demanding environments. Its durable, ruggedised design ensures it can handle tough conditions, whilst offering an impressive six hours of talk time and 50 hours of standby before needing a recharge. Plus, it provides extreme long-range capabilities and is hearing aid compatible.

Product Highlights

• Long Range - Long Range Cordless Phone and Two Way Radio
• Low Cost - Low Cost Communication with no Recurring Fees
• Usage Time - Up to 6 Hours of Talk Time, Up to 50 Hours of Standby Time

Features

• Two Way Radio and Telephone
• Broadcast Push to Talk
• Call Waiting, Call Logs - Dialled and Received
• Call Transfer, Caller ID
• 2.5mm Headset Jack
• Keypad Lock, Message Waiting Indicator
• Mute, Redial, Speakerphone
• Phonebook / Speed Dial with up to 90 Entries
• Vibrate Mode, Wireless PBX Options Sharing
• Wireless Phonebook Sharing

Specifications

• Buttons - End / Power, Left & Right Soft Keys, Up & Down Scrolling Keys, Intercom, Broadcast, Talk / Speakerphone,  0 – 9, #
• Jack(s) - Travel Charger, 2.5mm Headset Jack (On Charger)

Electrical Specifications

• Frequency - 902-928MHz
• RF Power - Peak - 708mW, Average - 76mW
• Channel Spacing - 200 kHz
• Number of Channels - 128
• Modulation -  MSK
• Multiple Access - Frequency Hopping TDMA
• Frequency Hopping Rate - 100 per Second
• TDMA Frame Length - 10 ms
• Number of Talk Paths - 1 Per Base (Up to 4)
• Receiver Sensitivity - < -108 dBm (@ BER 10-2)
• Antenna Connector - Non Standard
• Antenna Gain - 0.5 dBi (Short Antenna),   2 dBi (Long Antenna)
• TX Power Control Range - 708 mW
• Speech Coding - 8Kbps G.729A
• Channel Coding - 8Kbps Convolutional+CRC
• Transmission Data Rate - 176.678 Kbps
• User Data Rate - 128 Kbps Duplex
• Duplex - Time Division Duplex (TDD)
• Voice Quality - TIA/EIA-470B
• Number of System ID - 65,536

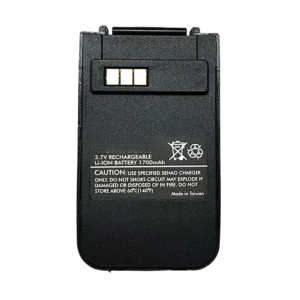

• Power Source - 3.6V 1700mAh Li-ion Battery
• Charge Time - 4 Hours Full Charge
• Charge Current - 600 mAh (900mAh for Spare Battery Slot)
• Battery Talk and Standby Time - 6 Hours Talk Time, 50 Hours Standby Time
• IP Rating - IP42

Weight and Dimensions

• Weight - 175g (0.39lbs)
• Dimensions - 58mm x 31mm x 161mm (2.28 Inches x 1.22 Inches x 6.34 Inches) (W x D x H)

Package Contents

• EnGenius DuraFon PSL Base Unit
• Base Antenna
• DuraFon Pro HC Handset/s (1-9 Depending on Number of Handsets Chosen)
• Handset Antennas, Batteries
• Desktop Chargers
• AC / DC Adapters
• Telephone Cords, Belt Clips
• User Manual, Quick Guide
