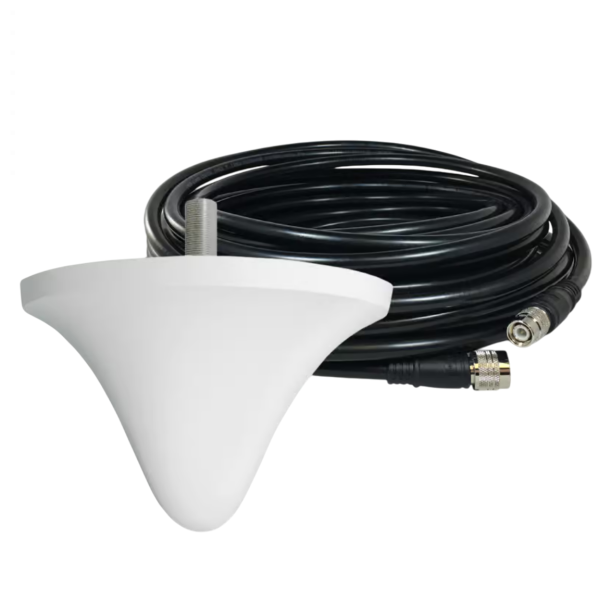

EnGenius Indoor Ceiling-Mount Antenna & Cable Kit

About the Ceiling Mount Antenna

The EnGenius-SN-UL-AK20L-IND is a 900MHz External Antenna Kit that connects directly to your DuraFon or FreeStyl Base Station. With its optimal design for indoor signal patterns and a high quality, low-loss LMR-400 Cable, it ensures maximum signal strength and minimal interference for both transmitting and receiving.

Its an ideal accessory for busineses that rely on the EnGenius DuraFon or FreeStyl Systems and need to ensure communication is consistent.

Benefits of the Ceiling Mount Antenna

Used to enhance the wireless coverage of EnGenius 900MHz Cordless Phone Systems including the DuraFon 1X, DuraFon 4X, DuraFon PRO, DuraFon SIP, and FreeStyl 1/2) within large indoor spaces. This is particularly useful in environments including Warehouses, Retail Stores, or other large buildings where the Base Station's signal might struggle to reach all areas.

Antenna Type

The Antenna is a 900MHz External nAtenna with a peak gain of approximately 2.7 dBi (at 900-930 MHz). It's designed for ceiling mount installation to provide optimal indoor coverage.

Cable Included

The kit comes with a 20m (66ft) LMR-400 low-loss Coaxial Cable. The high quality cable helps to minimise signal attenuation (loss of signal strength) ensuring that the signal from the Antenna reaches the Base Station effectively.

Connection

It connects to the Base Stations of compatible EnGenius DuraFon or FreeStyl Phone Systems via an N-Jack Connector.

Features

• 900MHz Indoor Antenna Kit, Includes 20m (66ft) Low Loss LMR-400 Coaxial Cable
• Extended Range - Significantly Improves the Indoor Range and Coverage of the EnGenius DuraFon and FreeStyl Base Stations
• Inproved Signal Quality - The Optimal Radiation Pattern and Low Loss Cable Help to Provide a Clearer, More Reliable Signal, Reducing Interference
• Better Performance in Large Areas - Ideal for Covering Large Square Footage, from 50,000 to 100,000 Square Foot Warehouses or Retail Stores

Technical Specifications:

Electrical

• Frequency - 863 - 930MHz
• Peak Gain - 2.1 dBi @ 863~865 MHz, 2.7 dBi @ 900~930 MHz
• VSWR -  2.0:1 (Max.)
• Half Power Beam Width -  83°±3°
• Polarisation - Linear, Vertical
• Impedance - 50 Ohm
• Power Handling -  10W (cw)
• Connector - N Jack

Physical

• Radome Material - ABS, UL94V0
• Unit Weight - 320g
• Dimensions - 170mm x 108mm

Package Contents

• Indoor Ceiling Mount Antenna
• 20m Cable
