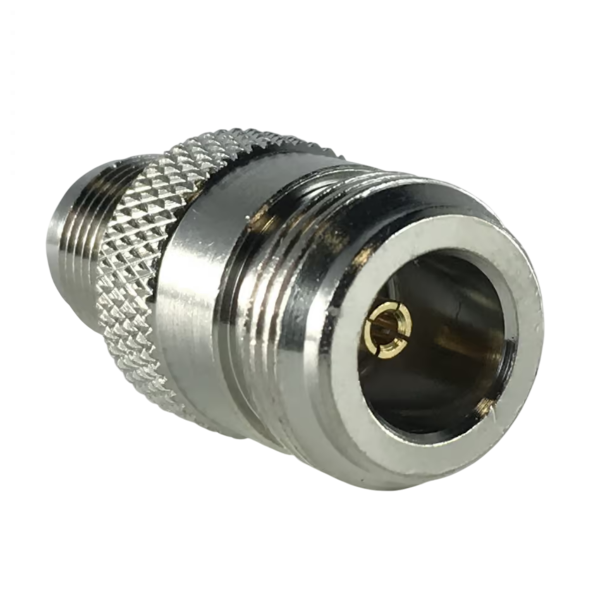

EnGenius Antenna Coaxial Coupler

About the Antenna Coaxial Coupler

With the EnGenius SN-ULTRA-ACP, its primary function is to extend the length of existing Coaxial Cables that are used with EnGenius External Antenna Kits and DuraFon and FreeStyl Phone Systems.

Benefits of the Antenna Coaxial Coupler

When you have an External Antenna (like the SN-UL-AK20L or SN-UL-AK20L-IND) and the included 20m Cable isn't long enough to reach your Base Station, the SN-ULTRA-ACP allows you to connect two such Cables together, effectively extending the total length.

Coupler Function

The Coupler acts as a connector to join two Coxial Cables.

Connectors

Designed with specific connectors to match EnGenius's Antenna Cables - typically a Reverse Thread TNC (RP-TNC) male on one end and a Reverse Polarity N-type (RP-N) female on the other, or sometimes just female to female connectors depending on the specific revision. The key is that it's designed to seamlessly join the specialised connectors used in EnGenius's 900MHz Systems.

Low Loss

The Coupler is built with quality materials to ensure "low connector loss," meaning it minimises the signal attenuation (weakening) that can occur when cables are joined. This helps maintain the overall signal integrity.

Durable

Made from durable materials to ensure structural integrity, especially as it might be used in outdoor or demanding environments.

Compatibility

It's compatible with most EnGenius DuraFon and FreeStyl Base Stations and their External Antenna Kits (e.g., those using LMR-400 type Cables).

In essence, the SN-ULTRA-ACP is a simple yet crucial component for flexible installation of long range Wireless Phone Systems where the Base Station needs to be further away from the External Antenna.

Features

• Couple 2 Antenna Cables Together
• Unique Thread Adapter Match EnGenius Cable Connectors
• Good Quality for Low Connector Loss
• Compatible with - EnGenius DuraFon SIP, DuraFon PRO, DuraFon UHF, DuraFon TAP, DuraFon 1X, FreeStyl 1 and FreeStyl 2

Package Contents

• EnGenius SN-ULTRA-ACP Antenna Coaxial Coupler
