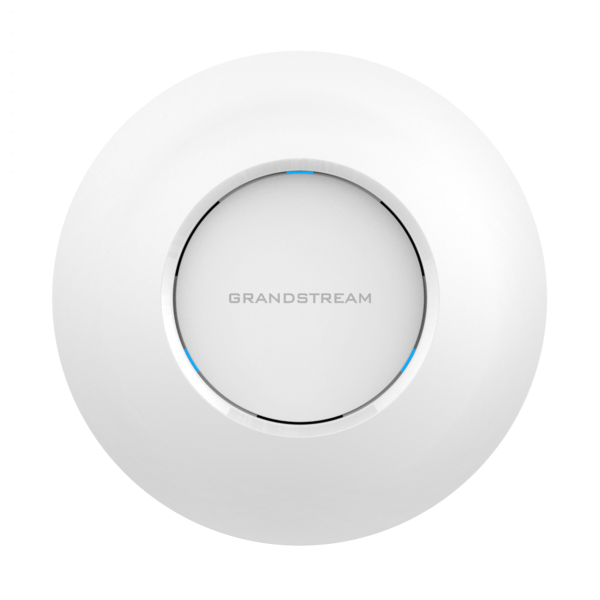

Grandstream GWN7625 - 802.11ac - Wave-2 W-Fi Access Point

An 802.11ac Wave-2 Wi-Fi Access Point that is Ideal for Small to Medium Sized Businesses, Features Include Dual Gigabit Network Ports, Supports 200 Concurrent Wi-Fi Client Devices and PoE

Grandstream GWN7625

The Grandstream GWN7625 is an c802.11ac Wave-2 Wi-Fi Access Point that is perfect for small to medium sized businesses, home offices, retail shops, restaurants and more. The Access Point Offering 4x4:4 MU-MIMO Technology on the 5G Band and 2×2:2 MU-MIMO Technology on the 2.4G Band.

The GWN7625 uses a controller-less distributed network management design n which the controller is embedded within the product’s web user interface to ensure easy installation and easy management.

Also supported by GWN Cloud and GWN Manager - Grandstream's free cloud Wi-Fi management platform, it is the ideal Wi-Fi Access Point for voice over Wi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi Capable IP Phones. With support for QoS, low latency real time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the Grandstream GWN7625 is ideal for medium wireless network deployments with medium user density.

Features

• 20.3 Gbps Wireless Throughput and 2x Gigabit Wireline Ports
• 2.4Ghz 2x2:2 MU-MIMO, 5Ghz 4x4:4 MU-MIMO
• Self Power Adaptation upon Auto Detection of PoE or PoE+
• Supports 200 Concurrent Wi-Fi Client Devices
• Advanced QoS to Ensure Real Time Performance of Low Latency Applications
• Anti Hacking Secure Boot and Critical Data/Control Lockdown via Digital Signatures, Unique Security/Random Default Password per Device
• Embedded Controller can Manage up to 30 Local GWN Series AP's, GWN Cloud Offers Unlimited AP Management Offers Premise Based Software Controller

Technical Specifications

• Wi-Fi Standards - IEEE 802.11 a/b/g/n/ac (Wave-2)
• Antennas - 6 Single Frequency Internal Antennas - 2.4GHz, Gain 3.5dBi, 5 GHz, Gain 4.5dBi
• Wi-Fi Data Rates - 2.4G - IEEE 802.11n: 6.5Mbps to 300Mbps. IEEE 802.11b: 1, 2, 5.5, 11 Mbps. IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 5G - IEEE 802.11ac: 6.5 Mbps to 1733 Mbps, IEEE 802.11n: 6.5Mbps to 600Mbps, IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps - Actual Throughput may vary Depending on many Factors Including Environmental Conditions, Distance between Devices, Radio Interference in the Operating Environment and Mix of Devices in the Network
• Frequency Bands - 2.4GHz Radio - 2412 - 2484 MHz, 5GHz Radio - 5180 - 5825 MHz
• Channel Bandwidth - 2.4G - 20 and 40 MHz 5G - 20,40 and 80 MHz
• Wi-Fi and System Security - WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), Anti-Hacking Secure Boot and Critical Data/Control Lockdown via Digital Signatures, Unique Security Certificate and Random Default Password per Device
• MIMO - 2x2:2 - 2.4GHz (MIMO), 4x4:4 - 5GHz(MU-MIMO)
• Maximum TX Power 2.4G:23dBm, 5G:25dBm - *Maximum Power Varies by Country, Frequency Band and MCS Rate
• Receiver Sensitivity - 2.4G - 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7, 5G - 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
• SSID's - 16 SSIDs Total, 8 per Radio (2.4Ghz and 5Ghz)
• Concurrent Clients - 200
• Network Interfaces - 2x Autosensing 10/100/1000 Base-T Ethernet Ports
• Auxiliary Ports - 1x Reset Pinhole, 1x Kensington Lock
• Mounting - Indoor Wall Mount or Ceiling Mount, Kits Included
• LED's - 3 Tri Colour LED's for Device Tracking and Status Indication
• Network Protocols - IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS - 802.11e/WMM, VLAN, TOS
• Network Management - Embedded Controller can Manage up to 30 Local GWN Aps GWN, Cloud Offers a free Cloud Management Platform for Unlimited GWN APs GWN Manager Offers Premise-Based Software Controller for up to 3,000 GWN APs
• Power Green and Efficiency - Supports 802.3az, PoE 802.3 af / 802.3at, Max Consumption - <12W
• Compliance - FCC, CE, RCM, IC
• GWN7625 Dimensions - 205.3mm x 205.3mm x 45.9mm, GWN7625 Weight - 530g, Package Weight - 8.97.3g

Package Contents

• Grandstream GWN7625 802.11ac Wave-2 Wireless Access Point
• Mounting Kits
• Quick Installation Guide
