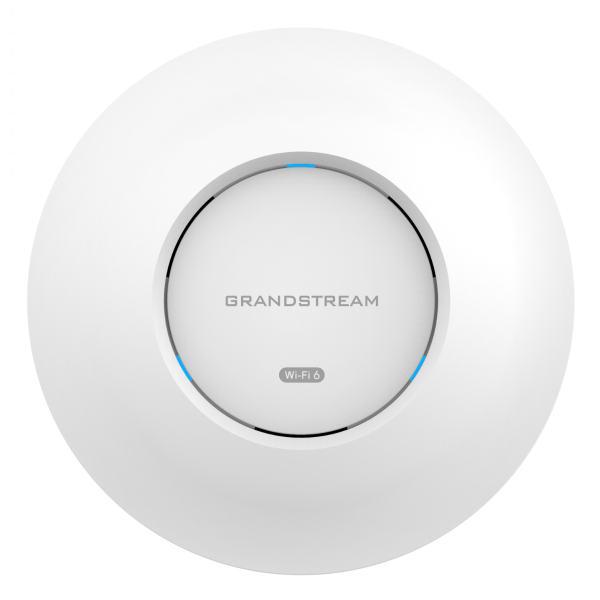

Grandstream GWN7660 Wi-Fi 6 Access Point

An Enterprise Grade 802.11ax Wi-Fi 6 Access Point Offering Dual Band 2×2:2 MU-MIMO Technology - Allowing Businesses to Build Next Generation Wi-Fi Networks for Medium to High Density Environments, Features Include Dual Gigabit Ethernet Ports, Up to 175 Metre Range and PoE

Grandstream GWN7660

The Grandstream GWN7660 enterprise grade 802.11ax Wi-Fi 6 Access Point offers dual band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.

The GWN7660 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface to ensure easy installation and easy management.

Also supported by GWN Cloud, and GWN Manager - Grandstream's free cloud Wi-Fi management platform. It is the ideal Wi-Fi Access Point for voiceover-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP Phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 500+ concurrent clients per AP and Dual Gigabit network ports with PoE/PoE+, the Grandstream GWN7660 is an ideal Wi-Fi access point for medium wireless network deployments with medium to high user density.

Features

• 1.77 Gbps Aggregate Wireless Throughput and 2x Gigabit Wireline Ports
• Dual Band 2x2:2 MU-MIMO with DL/UL OFDMA Technology
• Self Power Adaptation upon Auto Detection of PoE or PoE+
• Supports 500+ Concurrent Wi-Fi Client Devices
• Up to 175 Metre Range
• Advanced QoS to Ensure Real Time Performance of Low Latency Applications
• Anti Hacking Secure Boot and Critical Data/Control Lockdown via Digital Signatures, Unique Security/Random Default Password per Device
• Embedded Controller can Manage up to 50 Local GWN Series AP's, GWN Cloud Offers Unlimited AP Management Offers Premise Based Software Controller

Technical Specifications

• Wi-Fi Standards - IEEE 802.11 a/b/g/n/ac/ax
• Antennas - 2 Dual Band Internal Antennas 2.4GHz, Gain 3dBi 5 GHz, Gain 4dBi
• Wi-Fi Data Rates - 5G - IEEE 802.11ax: 7.3 Mbps to 1201 Mbps, IEEE 802.11ac: 6.5 Mbps to 867 Mbps, IEEE 802.11n: 6.5Mbps to 300Mbps, IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 2.4G - IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps, IEEE 802.11n: 6.5Mbps to 300Mbps,IEEE 802.11b: 1, 2, 5.5, 11 Mbps, IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps - Actual Throughput may vary Depending on many Factors Including Environmental Conditions, Distance between Devices, Radio Interference in the Operating Environment and Mix of Devices in the Network
• Frequency Bands - 2.4GHz Radio - 2400- 2483.5 MHz, 5GHz Radio - 5150 - 5850 MHz
• Channel Bandwidth - 2.4G - 20 and 40 MHz 5G - 20,40 and 80 MHz
• Wi-Fi and System Security - WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, Anti-Hacking Secure Boot and Critical Data/Control Lockdown via Digital Signatures, Unique Security Certificate and Random Default Password per Device
• MIMO - 2×2:2 - 2.4G(MIMO), 2×2:2 - 5G(MU-MIMO)
• Coverage Range - Up to 175 Metres
• Maximum TX Power 2.4G: 24 dBm, 5G: 22 dBm - *Maximum Power Varies by Country, Frequency Band and MCS Rate
• Receiver Sensitivity - 2.4G - 802.11b: -96dBm@1Mbps, -88dBm@11Mbps, 802.11g: -93dBm @6Mbps, -75dBm@54Mbps, 802.11n 20MHz: -73dBm @MCS7, 802.11n 40MHz: -70dBm @MCS7, 802.11ax 20MHz: -60dBm @MCS11, 802.11ax 40MHz: -58dBm @MCS11, 5G - 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
• SSID's - 32 SSIDs Total, 16 per Radio (2.4Ghz and 5Ghz)
• Concurrent Clients - 500+
• Network Interfaces - 2x Autosensing 10/100/1000 Base-T Ethernet Ports
• Auxiliary Ports - 1x Reset Pinhole, 1x Kensington Lock
• Mounting - Indoor Wall Mount or Ceiling Mount, Kits Included
• LED's - 3 Tri Colour LED's for Device Tracking and Status Indication
• Network Protocols - IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS - 802.11e/WMM, VLAN, TOS
• Network Management - Embedded Controller can Manage up to 50 Local GWN Aps GWN, Cloud Offers a free Cloud Management Platform for Unlimited GWN APs GWN Manager Offers Premise-Based Software Controller for up to 3,000 GWN APs
• Power Green and Efficiency - PoE - 802.3 af  / 802.3at, Max Consumption - 9W
• Compliance - FCC, CE, RCM, IC
• GWN7660 DImensions - 180.4mm x 180.4mm x 40.8mm, GWM7660 Weight - 443g, Package Weight - 774g

Package Contents

• Grandstream GWN7660 802.11ax Wireless Access Point
• Mounting Kits
• Quick Start Guide
