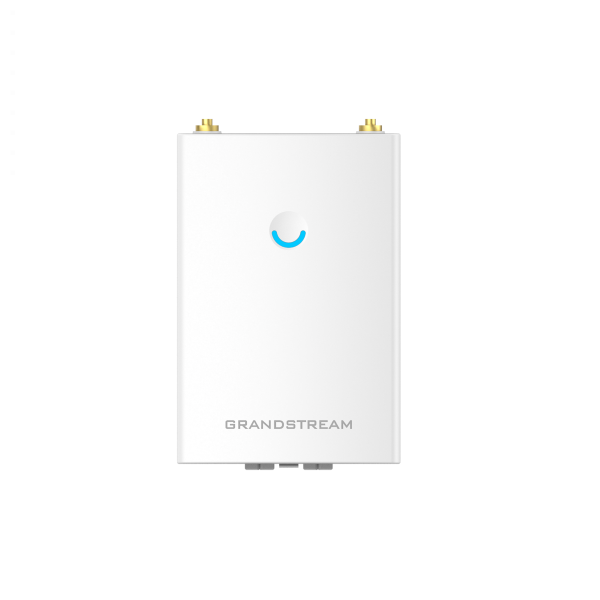

Grandstream GWN7605LR Outdoor Wireless Access Point

A High Performance Outdoor, Long Range 802.11ac Wave-2 Wi-Fi Access Point Offering Dual Band 2×2:2 MU-MIMO Technology for Low to Medium User Density Scenarios, Features Include Dual Gigabit Ethernet Ports, Up to 250 Metre Range, Changeable Antenna and PoE

Grandstream GWN7605LR

The Grandstream GWN7605LR is an outdoor Wi-Fi Access Point that offers extended coverage range support for both indoor and outdoor deployments, thanks to its innovative antenna and weatherproof design. The GWN7605LR comes equipped with dual band 2x2:2 MU-MIMO technology and a sophisticated antenna design for an extended coverage range of up to 250 metres.

The GWN7605LR includes a built in controller embedded within the products web user interface to ensure easy installation and easy management of locally deployed Wi-Fi AP's.

The Grandstream GWN7605LR is also supported by GWN Cloud, and GWN Manager - Grandstream's free cloud Wi-Fi management platform, Powered by marketleading technology for advanced QoS, fast roaming, mesh networks, captive portals, support for 100+ concurrent clients and dual Gigabit network ports, the GWN7605LR is an ideal Wi-Fi Access Point for low latency jitter sensitive real-time applications (such as voice/video-over-Wi-Fi devices & applications) in low-to-medium user density scenarios.

Features

• 1.27Gbps Aggregate Wireless Throughput and 2x Gigabit Wireline Ports
• Dual Band 2x2:2 MU-MIMO Technology
• Self Power Adaptation upon Auto Detection of PoE or PoE+
• Supports 100+ Concurrent Wi-Fi Client Devices
• Up to 250 Metre Range
• Advanced QoS to Ensure Real Time Performance of Low Latency Applications
• Flexibility of Detachable / Changeable Antenna for Different Application Scenarios
• Anti Hacking Secure Boot and Critical Data/Control Lockdown via Digital Signatures, Unique Security/Random Default Password per Device
• Embedded Controller can Manage up to 50 Local GWN Series AP's, GWN Cloud Offers Unlimited AP Management Offers Premise Based Software Controller

Technical Specifications

• Wi-Fi Standards - IEEE 802.11 a/b/g/n/ac (Wave-2)
• Antennas - 2 Dual Band External Antennas, 2.4GHz, Gain 3.5dBi 5 GHz, Gain 3.5dBi
• Wi-Fi Data Rates - IEEE 802.11ac: 6.5 Mbps to 867Mbps, IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, IEEE 802.11n: 6.5Mbps to 300Mbps, 400Mbps with 256-QAM on 2.4Ghz, IEEE 802.11b: 1, 2, 5.5, 11 Mbps, IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps - Actual Throughput may vary Depending on many Factors Including Environmental Conditions, Distance between Devices, Radio Interference in the Operating Environment and Mix of Devices in the Network
• Frequency Bands - 2.4GHz Radio - 2412 - 2484 MHz, 5GHz Radio - 5180-5825MHz - Not all Frequency Bands can be Used in all Regions
• Channel Bandwidth - 2.4G - 20 and 40 MHz 5G - 20,40 and 80 MHz
• System Security - WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, Anti-Hacking Secure Boot and Critical Data/Control Lockdown via Digital Signatures, Unique Security Certificate and Random Default Password per Device
• MIMO - 2×2, 2 - 2.4G(MIMO), 2×2:2 - 5G(MU-MIMO)
• Coverage Range - Up to 250 Metres - Coverage Range may Vary Depending on Environment
• Maximum TX Power 2.4G: 24 dBm 5G: 22 dBm - Maximum Power Varies by Country, Frequency Band and MCS Rate
• Receiver Sensitivity - 2.4G - 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7, 5G - 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
• SSID's - 16 Total, 8 per Radio (2.4Ghz and 5Ghz)
• Concurrent Clients - 100+
• Network Interfaces - 2x Autosensing 10/100/1000 Base-T Ethernet Ports
• Auxiliary Ports - 1x Reset Pinhole
• Mounting - Outdoor Metal Bar Mount or Wall Mount Kits Included
• LED's - 1 x Tri Colour LED for Device Tracking and Status Indication
• Network Protocols - IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS - 802.11e/WMM, VLAN, TOS
• Network Management - Embedded Controller can Manage up to 50 Local GWN APs GWN, Cloud Offers a free Cloud Management Platform for Unlimited GWN APs GWN Manager Offers Premise-Based Software Controller for up to 3,000 GWN APs
• Power Green and Efficiency - PoE 802.3af/ 802.3at, Max Consumption - 10.16W
• Compliance - FCC, CE, RCM, IC
• GWN7605LR Dimensions - 358.3 x 115mm x 45.3mm, GWM7605LR Weight - 500g, Package Weight - 655.3g
• Weatherproof Grade - IP66 Level - Weatherproof Capability when Installed Vertically

Package Contents

• Grandstream GWN7605LR 802.11ac Wave-2 Wireless Access Point
• Mounting Kits
• Quick Start Guide
