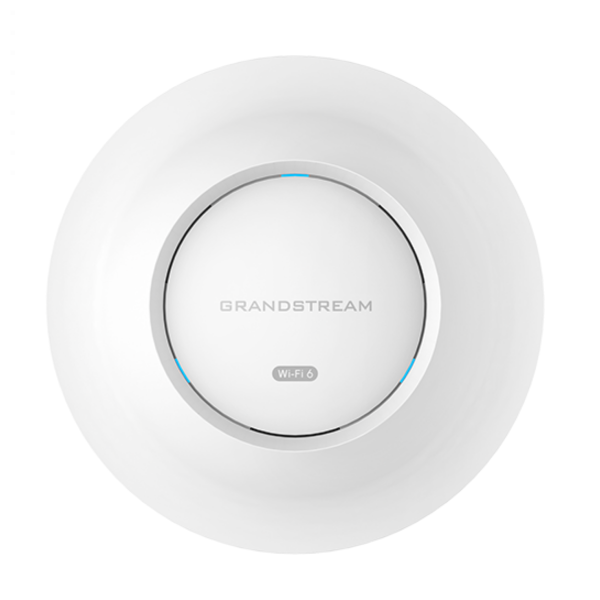

Grandstream GWN7664 - 802.11ax 4x4:4 Wi-Fi 6 Access Point

An Enterprise Grade 802.11ax Wi-Fi 6 Access Point Offering Dual Band 4×4:4 MU-MIMO Technology - Ideal for Small to Medium Sized Businesses, Features Include Dual Gigabit Ethernet Ports, Up to 175 Metre Range and PoE

Grandstream GWN7664

The Grandstream GWN7664 enterprise grade 802.11ax Wi-Fi 6 Access Point offers dual band 4x4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi coverage range.

The GWN7664 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface to ensure easy installation and easy management.

The GWN7664 is also supported by GWN Cloud, and GWN Manager - Grandstream's free cloud Wi-Fi management platform, making managing your network or several networks across multiple locations easier than ever before. It is the ideal Wi-Fi Access Point for voiceover-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP Phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 750+ concurrent clients and Dual Gigabit network ports with PoE/PoE+, the Grandstream GWN7664 is an ideal Wi-Fi access point for business grade wireless network deployments with a medium to high user density.

Features

• 3.55 Gbps Aggregate Wireless Throughput, 2.5Gbps Aggregate Wired Throughout
• Dual Band 4x4:4 MU-MIMO with DL/UL OFDMA Technology
• Self Power Adaptation upon Auto Detection of PoE or PoE+
• Supports 750+ Concurrent Wi-Fi Client Devices
• Up to 175 Metre Coverage Range
• Advanced QoS to Ensure Real Time Performance of Low Latency Applications
• Anti Hacking Secure Boot and Critical Data/Control Lockdown via Digital Signatures, Unique Security/Random Default Password per Device
• Embedded Controller can Manage up to 50 Local GWN Series AP's, GWN Cloud Offers Unlimited AP Management & GWN Manager Offers On-Premise Software AP Management

Technical Specifications

• Wi-Fi Standards - IEEE 802.11 a/b/g/n/ac/ax
• Antennas - 8 Individual Internal Antennas - 4 Per Band, 2.4GHz, Gain 3dBi 5 GHz, Gain 4dBi
• Wi-Fi Data Rates - 5G - IEEE 802.11ax: 8 Mbps to 2402 Mbps. IEEE 802.11ac: 6.5 Mbps to 1733 Mbps. IEEE 802.11n: 6.5Mbps to 600Mbps. IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 2.4G - IEEE 802.11ax: 8 Mbps to 1147 Mbps, IEEE 802.11n: 6.5Mbps to 600Mbps, IEEE 802.11b: 1, 2, 5.5, 11 Mbps, IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps - Actual Throughput may vary Depending on many Factors Including Environmental Conditions, Distance between Devices, Radio Interference in the Operating Environment and Mix of Devices in the Network
• Frequency Bands - 2.4GHz Radio - 2412- 2484 MHz, 5GHz Radio - 5180 - 5825 MHz
• Channel Bandwidth - 2.4G - 20 and 40 MHz (x4), 5G - 20,40 and 80 MHz (x4)
• Wi-Fi and System Security - WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, Anti-Hacking Secure Boot and Critical Data/Control Lockdown via Digital Signatures, Unique Security Certificate and Random Default Password per Device
• MIMO - 4×4:4 - 2.4G, 4×4:4 - 5G
• Coverage Range - Up to 175 Metres
• Maximum TX Power 2.4G: 26 dBm, 5G: 25 dBm - *Maximum Power Varies by Country, Frequency Band and MCS Rate
• Receiver Sensitivity - 2.4G - 802.11b: -99dBm@1Mbps, -91dBm@11Mbps, 802.11g: -94dBm @6Mbps, -78dBm@54Mbps, 802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7, 802.11ax 20MHz: -64dBm @ MCS11, 802.11ax 40MHz: -63dBm @MCS11, 5G - 802.11a: -95dBm @6Mbps, -77dBm @54Mbps, 802.11n 20MHz: -74dBm @MCS, 802.11n 40MHz:-71dBm @MCS7, 802.11ac 20MHz: -70dBm@MCS8, 802.11ac: HT40:- 66dBm @MCS9, 802.11ac 80MHz: -62dBm @MCS9, 802.11ax 20MHz: -64dBm @ MCS11, 802.11ax 40MHz: -62dBm @MCS11, 802.11ax 80MHz: -59dBm @MCS11
• SSID's - 32 SSIDs Total, 16 per Radio (2.4Ghz and 5Ghz)
• Concurrent Clients - 750+
• Network Interfaces - 1 x 1G Port and 1 x 2.5G Port, Supports 3.5Gbps Aggregate Wire Throughout
• Auxiliary Ports - 1x Reset Pinhole, 1x Kensington Lock
• Mounting - Indoor Wall Mount or Ceiling Mount, Kits Included
• LED's - 1 Tri Colour LED for Device Tracking and Status Indication
• Network Protocols - IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS - 802.11e/WMM, VLAN, TOS
• Network Management - Embedded Controller can Manage up to 50 Local GWN Aps GWN, Cloud Offers a free Cloud Management Platform for Unlimited GWN APs GWN Manager Offers Premise-Based Software Controller for up to 3,000 GWN APs
• Power Green and Efficiency - PoE - 802.3 af, 802.3at, Max Consumption - 17W
• Compliance - FCC, CE, RCM, IC
• GWN7664 DImensions -  205.3mm x 205.3mm x 45.9mm, GWM7664 Weight - 714g, Package Weight - 106g

Package Contents

• Grandstream GWN7664 802.11ax Wireless Access Point
• Mounting Kits
• Quick Start Guide
