Grandstream GWN7615 - 802.11ac Wave-2 - Wi-Fi Access Point

An Enterprise Performance 802.11ac Wave-2 Wi-Fi Access Point Offering Dual Band 3×3:3 MU-MIMO Technology for Medium to High User Density Environments, Features Include Dual Gigabit Network Ports, Up to 175 Metre Range, Supports 200+ Concurrent Wi-Fi Client Devices and PoE

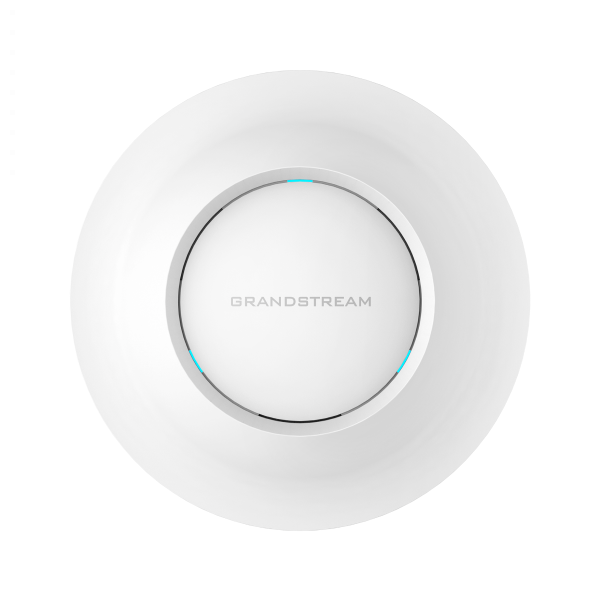

Grandstream GWN7615

The Grandstream GWN7615 creates scalability for medium to high user density environments The enterprise performance Access Point offers dual band 3x3:3 MU-MIMO and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.

The GWN7615 uses a controller-less distributed network management design n which the controller is embedded within the product’s web user interface to ensure easy installation and easy management.

Also supported by GWN Cloud and GWN Manager - Grandstream's free cloud Wi-Fi management platform, it is the ideal Wi-Fi Access Point for voice over Wi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi Capable IP Phones. With support for QoS, low latency real time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the Grandstream GWN7615 can be used to create a scalable solution as big or as small as needed for the deployment scenario, from office buildings to retail locations, hotels and more.

Features

• 1.75 Gbps Aggregate Wireless Throughput and 2x Gigabit Wireline Ports
• Dual Band 3x3:3 MU-MIMO Technology
• Self Power Adaptation upon Auto Detection of PoE or PoE+
• Supports 200+ Concurrent Wi-Fi Client Devices
• Up to 175 Metre Range
• Advanced QoS to Ensure Real Time Performance of Low Latency Applications
• Anti Hacking Secure Boot and Critical Data/Control Lockdown via Digital Signatures, Unique Security/Random Default Password per Device
• Embedded Controller can Manage up to 50 Local GWN Series AP's, GWN Cloud Offers Unlimited AP Management Offers Premise Based Software Controller

Technical Specifications

• Wi-Fi Standards - IEEE 802.11 a/b/g/n/ac (Wave-2)
• Antennas - 3 Dual Band Internal Antennas 2.4GHz, Gain 3dBi 5 GHz, Gain 3dBi
• Wi-Fi Data Rates - IEEE 802.11ac: 6.5 Mbps to 1300Mbps, IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, IEEE 802.11n: 6.5Mbps to 450Mbps, IEEE 802.11b: 1, 2, 5.5, 11 Mbps, IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps - Actual Throughput may vary Depending on many Factors Including Environmental Conditions, Distance between Devices, Radio Interference in the Operating Environment and Mix of Devices in the Network
• Frequency Bands - 2.4GHz Radio - 2412 - 2484 MHz 5GHz Radio - 5180 - 5825 MHz
• Channel Bandwidth - 2.4G - 20 and 40 MHz 5G - 20,40 and 80 MHz
• Wi-Fi and System Security - WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), Anti-Hacking Secure Boot and Critical Data/Control Lockdown via Digital Signatures, Unique Security Certificate and Random Default Password per Device
• MIMO - 3x3:3 - 2.4GHz (MIMO), 3x3:3 - 5GHz(MU-MIMO)
• Coverage Range - Up to 175 Metres - Coverage Range can Vary Based on Environment
• Maximum TX Power 2.4G:23dBm, 5G:24dBm - *Maximum Power Varies by Country, Frequency Band and MCS Rate
• Receiver Sensitivity - 2.4G - 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7, 5G - 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9
• SSID's - 32 SSIDs Total, 16 per Radio (2.4Ghz and 5Ghz)
• Concurrent Clients - 200+
• Network Interfaces - 2x Autosensing 10/100/1000 Base-T Ethernet Ports
• Auxiliary Ports - 1x Reset Pinhole, 1x Kensington Lock
• Mounting - Indoor Wall Mount or Ceiling Mount, Kits Included
• LED's - 3 Tri Colour LED's for Device Tracking and Status Indication
• Network Protocols - IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS - 802.11e/WMM, VLAN, TOS
• Network Management - Embedded Controller can Manage up to 50 Local GWN Aps GWN, Cloud Offers a free Cloud Management Platform for Unlimited GWN APs GWN Manager Offers Premise-Based Software Controller for up to 3,000 GWN APs
• Power Green and Efficiency - PoE 802.3 af / 802.3at, Max Consumption - 12.5W
• Compliance - FCC, CE, RCM, IC
• GWN7615 Dimensions - 205.4mm x 205.4mm x 45.9mm, GWN7615 Weight - 500g, Package Weight - 8.67.3g

Package Contents

• Grandstream GWN7615 802.11ac Wave-2 Wireless Access Point
• Mounting Kits
• Quick Start Guide
