Help points and push-to-call phones let anyone reach a set contact by pressing a button and speaking, with no handset to lift, damage or steal. They suit car park barriers, building entrances, site gates and public areas. The range includes Project Telecom PT102 and PT104 units with 1 to 4 programmable buttons and the Gai-Tronics DDA help point.


Help points and push-to-call phones let anyone reach a set contact by pressing a button and speaking, with no handset to lift, damage or steal. They suit car park barriers, building entrances, site gates and public areas. The range includes Project Telecom PT102 and PT104 units with 1 to 4 programmable buttons and the Gai-Tronics DDA help point.
Start with how many destinations callers need, then choose between a door and an open front, and pick the connection that suits your site.
|
Model |
Call buttons |
Front |
Connection |
Depth |
Protection |
|---|---|---|---|---|---|
|
Project Telecom PT102-SC |
1 |
Weather-sealed door |
Analogue, SIP, 4G |
126mm |
IP66 (IP67 on request) |
|
Project Telecom PT102-2B |
2 |
Weather-sealed door |
Analogue, SIP, 4G |
126mm |
IP66 (IP67 on request) |
|
Project Telecom PT102-4B |
4 |
Weather-sealed door |
Analogue, SIP, 4G |
126mm |
IP66 (IP67 on request) |
|
Project Telecom PT104-3B |
3 |
Open front |
Analogue, SIP, 4G |
74mm |
IP66 (IP67 on request) |
|
Project Telecom PT104-4B |
4 |
Open front |
Analogue, SIP, 4G |
74mm |
IP66 (IP67 on request) |
Each button dials its own programmed number. One button suits a single point of contact such as a security office. Two to four buttons let callers choose, for example security, reception, maintenance and a control room.

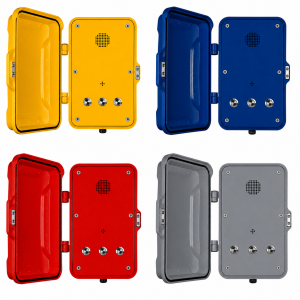

The PT102 models have a weather-sealed front door that shields the buttons and speaker. The PT104 models have an open front, so callers reach the buttons straight away, and at 74mm deep they sit flatter on the wall than the 126mm PT102.
The Gai-Tronics DDA help point was designed with accessibility regulations in mind. It has raised 32mm palm-operable buttons, raised text with Braille, an induction loop as standard, and visual as well as audible ring indication. On the Project Telecom PT102 and PT104 an inductive coupler is available on request at extra cost. The hearing aid symbol in the product images is for illustration only.
Full specifications for the Project Telecom models are on projecttelecom.co.uk
For phones with a handset, see weatherproof & vandal resistant phones.
