Project Telecom PT104-2B 2 Button Push-to-Call Outdoor Phone

The Project Telecom PT104-2B Open Access Push-to-Call Outdoor Phone is a professional-grade communications solution designed for dependable operation in harsh industrial, outdoor and public-access environments. Featuring dual push-to-call functionality, an open access weatherproof design, IP66 weatherproof protection, vandal-resistant construction and a choice of Analogue, SIP or GSM / 4G connectivity, the PT104-2B delivers reliable communications where conventional telephones may be unsuitable.

Designed for factories, warehouses, transport infrastructure, utility sites, rail networks, ports, marine environments, tunnels, construction projects, car parks and public assistance points, the PT104-2B enables users to connect with one of two independently programmed destinations at the press of a button. This dual-button configuration provides greater flexibility, allowing separate contacts for security, customer assistance, maintenance teams, control rooms or emergency support services.

Its corrosion-resistant die-cast aluminium housing and open access weatherproof design provide dependable protection against dust, moisture and harsh weather whilst allowing immediate access to communications without opening a protective door.

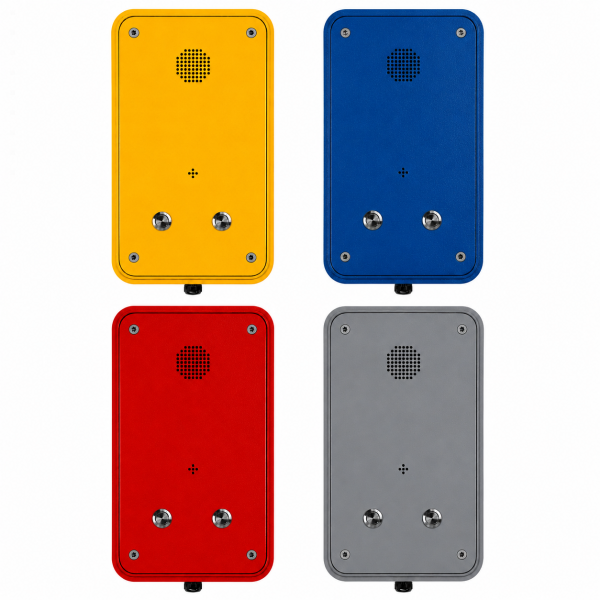

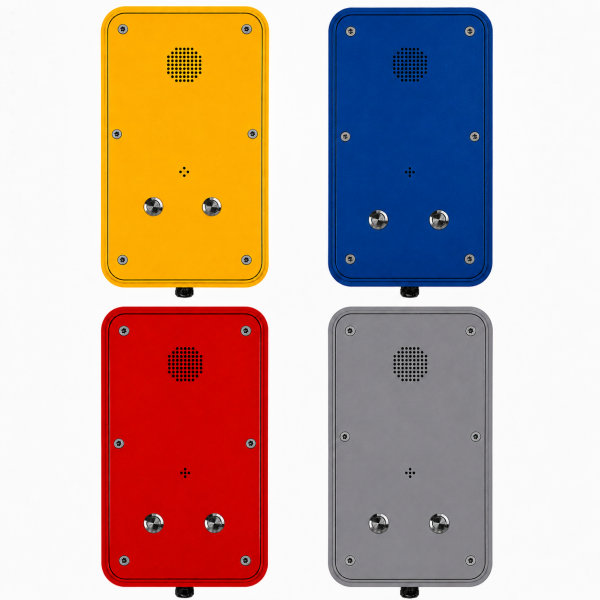

Available in Yellow, Blue, Red and Grey finishes, the PT104-2B can be specified to suit virtually any industrial or public-access communications application.

Heavy-Duty Construction for Harsh Environments

Engineered specifically for industrial and public-access applications, the PT104-2B features a corrosion-resistant die-cast aluminium enclosure with an industrial epoxy powder-coated finish and an open access front panel.

This heavy-duty construction provides outstanding resistance to dust, moisture, impacts, vandalism and prolonged outdoor exposure. Tamper-resistant mounting bars and fixings further improve security, making the PT104-2B ideal for exposed installations where dependable communications are essential.

Designed for continuous operation, the telephone delivers reliable performance throughout factories, transport infrastructure, utilities, marine facilities, construction projects and public-access environments.

Dual Push-to-Call Operation

The PT104-2B provides simple operation using two vandal-resistant stainless-steel push buttons.

Users simply press the required button to automatically connect with one of two independently programmed destinations without manually dialling a number.

The dual-button design provides greater flexibility than single-button models, allowing access to multiple departments including - Security & Information, Control Room & Maintenance, Customer Assistance & Technical Support and Emergency Assistance & Site Management.

This makes the PT104-2B particularly suitable for transport facilities, industrial sites, customer assistance points and public help locations.

Flexible Connectivity Options

The PT104-2B is available with Analogue, SIP or GSM / 4G connectivity, allowing integration into virtually any communications infrastructure.

Analogue Version

The analogue version connects directly to standard analogue telephone lines and analogue PABX systems. Powered directly from the telephone line, it provides a straightforward communications solution for sites utilising traditional telephony infrastructure.

SIP Version

The SIP version supports SIP 2.0 (RFC3261) and integrates with SIP PBX systems, hosted VoIP platforms and enterprise IP networks. Features include dual SIP server registration, PoE support and web-based configuration for flexible deployment within modern communications environments.

GSM / 4G Version

The GSM / 4G version operates via cellular networks using a Micro SIM card, providing reliable communications where fixed telephone lines or network infrastructure may not be available. Remote programming via SMS and remote status reporting simplify deployment and management.

Handsfree Communication

Designed for handsfree operation, the PT104-2B provides clear two-way voice communication without requiring a handset.

Its handsfree design improves reliability whilst reducing maintenance requirements for busy industrial and public-access environments.

Open Access Weatherproof Design

Unlike conventional weatherproof telephones fitted with protective front doors, the PT104-2B features an open access weatherproof design, providing immediate access to both call buttons without requiring a door to be opened.

The IP66-rated enclosure protects internal components from dust, rain and moisture whilst ensuring communications remain immediately available whenever assistance is required.

The sealed construction and corrosion-resistant housing make the PT104-2B suitable for year-round installation in harsh industrial, transport and public-access environments.

Accessibility & User Safety

Where hearing aid compatibility is required, an optional inductive coupler can be supplied.

The PT104-2B also features non-volatile memory, ensuring programmed settings are retained following power interruptions and reducing ongoing maintenance requirements.

*Note – Hearing aid symbol shown in product images for illustrative purposes only. Inductive coupler available on request at an additional cost.

The non-volatile memory helps retain programmed settings during power interruptions, ensuring reliable operation and minimising maintenance requirements throughout the life of the installation.

Features

• Heavy-Duty Push-to-Call Outdoor Phone
• Open Access Weatherproof Design
• Two Independently Programmable Stainless-Steel Push-to-Call Buttons
• Available with Analogue, SIP or GSM / 4G Connectivity
• Available in Yellow, Blue, Red and Grey Finishes
• Designed for Harsh Outdoor and Industrial Environments
• Handsfree Two-Way Voice Communication
• IP66 Weatherproof Protection
• IP67 Version Available on Request
• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Vandal-Resistant Construction
• Non-Volatile Memory
• Remote Configuration (Version Dependent)
• Optional Dry Contact Relay Outputs
• Optional Inductive Coupler for Hearing Aid Compatibility
• Lightning & Transient Protection (Version Dependent)
• Operating Temperature -30°C to +65°C
• MTBF Exceeding 50,000 Hours
• CE, FCC & RoHS Compliant

Specifications

Connectivity Options

Analogue Version

• Standard Analogue Telephone Line Connection
• Compatible with PSTN Networks
• Compatible with Analogue PABX Systems
• Push-to-Call Autodial Function
• Incoming Call Capability
• DTMF Remote Programming
• Internal Programming Keypad
• Powered Directly from Telephone Line
• MF (Tone) Dialling
• Lightning and Transient Protection to ITU-T K.21 Enhanced Levels

SIP Version

• SIP 2.0 (RFC3261) Compatible
• Supports Registration with Two SIP Servers
• WAN Port - 10/100Base-T RJ45 Auto MDIX
• LAN Port - 10/100Base-T RJ45 Auto MDIX
• Power Supply - PoE or 12V DC PSU
• Web-Based Configuration Interface
• SIP Domain and Authentication Support
• DHCP Support
• PPPoE Support
• VLAN Support
• STUN Support
• Bridge Mode Support
• Supports G.711 A-law / μ-law, G.722, G.723.1, G.726 and G.729 Codecs
• Echo Cancellation (G.168)
• Full Duplex Communication

GSM / 4G Version

• GSM / 4G Mobile Network Operation
• Micro SIM Card Support
• SMS Configuration
• SMS Remote Status Reporting
• 4G LTE FDD - B1 / B3 / B5 / B7 / B8 / B20
• LTE TDD - B38 / B40 / B41
• WCDMA - B1 / B5 / B8
• GSM - B3 / B8
• Power Input - 7.4V–12V DC
• Idle Current - 75mA
• Off-Hook Current - 160mA

Audio Features

• Handsfree Full Duplex Voice Communication
• High-Quality Two-Way Audio
• 80–90 dBA Ringing Volume (Version Dependent)

Construction

• Corrosion-Resistant Die-Cast Aluminium Housing
• Industrial Epoxy Powder-Coated Finish
• Two Stainless-Steel Push Buttons
• Open Access Front Panel Design
• Tamper-Resistant Mounting Bars
• Vandal-Resistant Construction

Protection Features

• IP66 Weatherproof
• IP67 Available on Request
• EN60529 Compliant
• Lightning Protection (Version Dependent)
• Vandal Resistant

Accessibility

• Optional Inductive Coupler for Hearing Aid Compatibility (Available on Request – Additional Charge Applies)

Environmental Specifications

• Operating Temperature: -30°C to +65°C
• Storage Temperature: -40°C to +75°C
• MTBF Exceeding 50,000 Hours

Compliance

• CE Certified
• FCC Compliant
• RoHS Compliant

Dimensions & Weight

• 204mm  x 334mm x 74 mm
• Gross Weight - 6 kg

Package Contents

• Project Telecom PT104-2B 2 Button Push-to-Call Outdoor Phone with Open Front (Connection and Colour Option to be Selected at Checkout)
• Tamper-Resistant Mounting Hardware
• User Documentation
