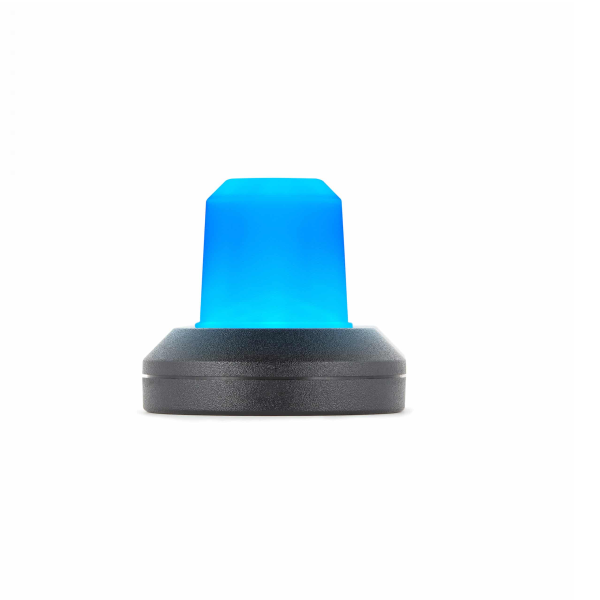

Algo 1127PB Blue LED Visual Alerter with UK Power Supply

High Performance LED Visual Alerter for Event Notification

The Algo 1127 Visual Alerter is an attractive high performing light that provides visual indication of telephone ringing and notification events where a relay or audio detection is available.

*Please note that the Algo 1127 does not connect directly to a telephone.

Available in Red, Blue or Green the Algo 1127 features four selectable flash patterns. The light is perfect for office environments where it can be placed on the desktop, wall mounted vertically or horizontally, or be located remotely. Constructed with 18 high intensity LED's the Algo 1127 provides a softly diffused light that is highly visible in all directions.

Direct activation is by relay (dry contact) input or auto detection. Additional products may be required to provide compatible outputs driven by specific events in SIP, IP, Analog and Avaya or Heritage Nortel environments.

The light is compatible with the 1825pm Duet Plus, all varieties of Algo IP Speakers including the Algo 8180, 816 and 8301 Adapter.
A 24V Power Supply is included with the Alerter.

Typical Applications:

Visual Indication of Being on a Call (In-Use)

• Headset Users - Receptionists, Agents
• Workers in Cubicle Environments
• Handsfree Call in Progress “On Air” Notification
• Notification to Family for Telecommuters

Visual Ring Indication

• Noisy Environments, Noise Sensitive Environments - Hospitals, Theatres, Churches, Court Rooms
• Line Identification

Visual Message Waiting Indication

• Notification for On-Premise Mobile Workers
• Telecommuters

ACD Queue Activity

• Visual Indication of Callers in Queue
• Visual Indication of Time Parameter Exceeded Whilst In Queue

*Contact Algo for Application Support Involving Specific Telephone Systems*

Algo 1127PB Blue LED Visual Alerter Features

• Four Selectable Flash Patterns
• Highly Visable Yet Softly Diffused Light
• 18 High Intensity LED's - Available in 3 Different Colours - Red, Blue or Green
• Easy Installation and Mounting Either on a Wall or on a Ceilling
• Compatible Algo Devices Providing a Relay Include - 1825PM, 8180, 8186 and 8188 Speakers, and 8301 Adapter

Algo 1127PB Blue LED Visual Alerter Specifications

• LED Output - 18 High Intensity Low Dispersion Angle LED's Diffused
• Plug and Play Connectors - 2.1 mm ID Jack Input for Power, 24 Vdc 80 mA Polarity Independent 2.5 mm Jack Input for Dry Contact Closure
• Terminal Connections - Power, Signal (Dry Contact or AUX SPKR from 1825PM Duet Plus, Dry Contact from an 8180/8186/8188 Speaker)
• Maximum Wire Distance - 1,000 Feet (300 m) Using 24 Gauge Wire for Remote Power
• Dry Contact Detection - 15 kOhms Max, 1 mA 24 V Resistive
• Audio Detection - 3.3 Vrms 400-1200 Hz
• Mounting - Adhesive Hook & Loop Tape or Screws (Supplied)
• Colour Options - Red, Blue or Green
