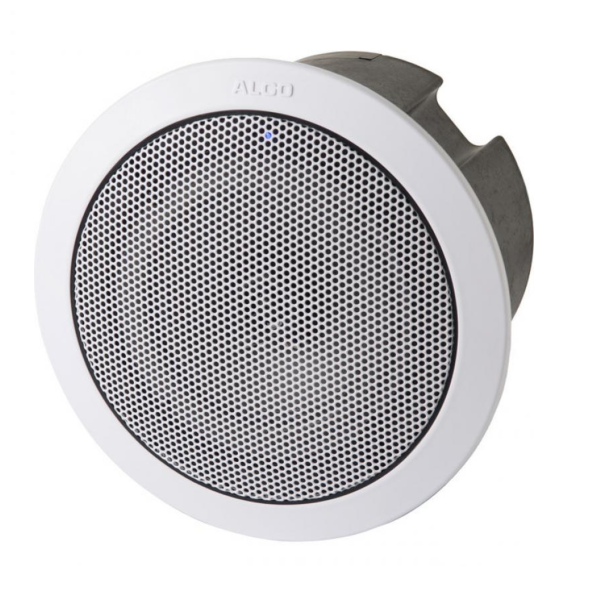

ALGO 8188 SIP Ceiling Speaker

The Algo 8188 SIP Ceiling Speaker features dual SIP extensions for voice paging and notification capability. One or both extensions can be registered with any premise or hosted Communication Server supporting 3rd Party SIP endpoints.

Wideband Audio

Wideband G.7222 codec support provides optimum speech clarity and intelligibility in an HD Voice environment. Voice pagong and notification announcements are easier to understand, particularly in noisy environments.

Scalable and cost effective, the Algo 8188 auto-multicast capability allows a SIP registered speaker to simultaneously stream audio to additional speakers, whilst actively voice paging or playing a WAV file from memory. No additional SIP licences or paging server are required.

Integrated Microphone

The integrated microphone enables talkback and listens for ambient noise to automatically increase speaker volume when necessary. An auxiliary input allows an optional wall button to initiate an SIP call or generate an announcement.

Installation

For simplicity and ease the PoE blind mount speaker installs quickly into the ceiling, is powered by PoE, and announces its static or DHCP IP address for access to the intuitive web interface. Additionally, the Algo 8188 Speaker supports auto provisioning for minimal touch configuration.

Specifications & Features

• Power Input - 48 V PoE IEEE 802.3af Class 0 (Max 12.95 W - Idle Nominal 2.5 W)
• Compatible with all SIP Based IP PBX Phone Systems
• Eliminates Narrowband FXS Port or ATA
• Multifunctional Speaker for Voice Paging, Playing Music, Emergency Notification Alerting and Bell Scheduling Applications
• Mix with any Number and Variety of Algo Speakers, Strobes and/or Paging Adapters using Multicast (e.g. 8128, 8180, 8186, 8188, 8189, 8301, 8373) for a Complete Voice Paging System
• Speaker - 6.5" (16.5cm) Coaxial with PEI Dome Tweeter. Mica Filled Polypropylene Cone
• Audio Codecs - G.711 A-law, G.711 u-law, G.722, Polycom Group Page, OGG Vorbis (Other Codec Support Available on Request)
• SIP/Multicast - SIP Page, SIP Page & Zoned Multicast Stream, Zoned Multicast Receive, SIP Ring Alert, SIP Ring Alert & Zoned Multicast Stream
• Server Redundancy - Primary, Secondary, Tertiary
• Processor - Linux OS, ARM Cortex-A8 32-Bit RISC, Processor with Crypto Accelerator
• Frequency Response - 55 – 18,000 Hz (- 10 dB)
• Sensitivity - 88 dBA 1m/1W (1 kHz)
• Dispersion Angle - 140° (2 kHz -6 dB)
• Audio Memory - 1 GByte
• Relay Output - Normally Open or Normally Closed - Max Rating 30 V 50 mA
• Relay Input - Normally Open or Normally Closed, Dry Contact Supervision. Algo 1202 Button, Algo 1203 Switch, EOL Resistor Termination
• Configuration - Web Interface or Auto-Provisioning Server
• Provisioning - TFTP, FTP, or HTTP
• NAT - STUN, CRLF Keep Alive
• Environmental - 32 to 104 deg F (0 to + 40 degC); 10-95% RH Non-Condensing. Dry Indoor Locations Only. (Contact Algo for Extreme Environments)
• Dimensions -8” (20.5cm) Diameter without Trim Ring, 9.8” (24.9cm) with Trim Ring. Total Height 7.0” (17.8cm)
• Mounting - Blind Mounts into 8" Hole - Clearance Requirement of 5.5" (14.0cm) Above ½” (1.27cm) Gypsum Board Ceiling
• Weight - 6lb (2.7kg)
• Compliance - EN60950:2001, IEEE 802.3-2008, RFC3261, RoHS, CE, FCC Class B, CISPR 22 Class B, CISPR 24, CSA/UL (USA & Canada), UL2043
• 1 Year Manufacturers Warranty

ALGO Support

Click Here For a List of Compatible SIP Telephone Systems - algosolutions.com/voip

Click Here For a List of ALGO 8188 Standard Ringtones - algosolutions.com/support/ringtones

What's in the box?

• ALGO 8188 Ceiling Speaker
• Speaker Grill and Surround
• Fitting Kit
• Mounting Hole Cut Out Template

*T-Bar Support Bracket for Extra Support is Not Included

Click Here for the ALGO 8188TBR - T-Bar Support Bracket For ALGO 8188 Ceiling Speaker

*Heavy Duty UL2043 Compliant Housing Protects Speaker and Circuitry against Dust and Condensation. Integrated Attachment for Optional ¼” 20 Eye Bolt Ceiling Suspension. RJ45 Jack and IO Connector are Hidden Once Installation is Complete.
