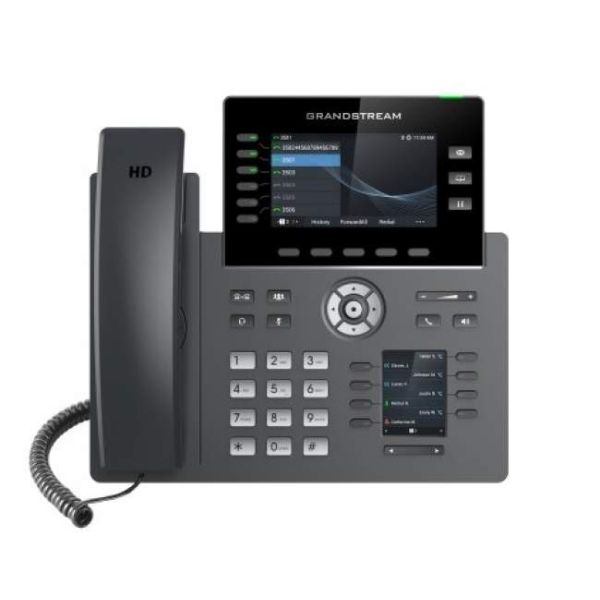

Grandstream GRP2616 IP Phone

The Grandstream GRP2616 is a high end Carrier Grade IP Phone designed with Zero Touch provisioning for mass deployment and easy management. Supporting 6 Lines and 6 SIP Accounts, whilst featuring a sleek design and a host of next generation features that include Integrated Wi-Fi, Bluetooth Support, 48 Virtual Multi-Purpose Keys (MPK's), Dual Gigabit Ports and more.

Featuring a 4.3 Inch Colour LCD Screen with swappable face plates, allowing easy logo customisation and an additional 2.4 Inch Display Screen. The GRP Series includes Carrier-Grade Security Features to provide enterprise level security that includes Secure Boot, Dual Firmware Images and Encrypted Data Storage.

For Cloud Provisioning and centralised management, the Grandstream GRP2616 is supported by Grandstream's Device Management System (GDMS) that provides a centralised interface to configure, provision, manage and monitor deployments of Grandstream endpoints.

Built for busy desktop workers and designed for easy deployment by enterprises, service providers and other high volume markets. The GRP2616 offers an easy to use and easy to deploy voice platform.

Features

• HD Audio, HD Handset and HD Speakerphone with Support for Wideband Audio
• 6 Line Keys with up to 6 SIP Accounts
• Dual LCD Screens with Digital BLF Keys
• Enterprise Level Protection Including Secure Boot, Dual Firmware Images and Encrypted Data Storage
• Integrated Dual Band 802.11 a/b/g/n/ac Wi-Fi
• Dual Switched Auto-Sensing 10/100/1000 Mbps Gigabit Ethernet Ports with Integrated PoE
• Swappable Face Plates - Allowing Easy Logo Customisation
• Integrated Bluetooth

Protocols/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6

Network Interfaces

• Dual Switched Auto-Sensing 10/100/1000 Mbps Gigabit Ethernet Ports with Integrated PoE

Bluetooth

• Integrated Bluetooth

Wi-Fi

• Integrated Dual Band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)

USB

• USB Port

Graphic Display

• 4.3 Inch (480 x 272) TFT Colour LCD, 2.4 Inch (240 x 320) Additional Screen

Voice Codecs and Capabilities

• Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS, in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO)

Telephony Features

• Hold, Transfer, Forward
• 3-Way Conference, Call Park, Call Pickup
• Shared Call Appearance (SCA/Bridged Line Appearance (BLA)
• Downloadable Phonebook (XML, LDAP, Up to 2000 Items)
• Call Waiting, Call Log (Up to 2000 Records)
• XML Customisation of Screen, Off Hook Auto Dial, Auto Answer
• Click to Dial, Flexible Dial Plan, Hot Desking
• Personalised Music Ringtones and Music on Hold
• Server Redundancy and Fail Over

HD Audio

• HD Handset, HD Speakerphone with Support for Wideband Audio

Feature Keys

• 6 Dual Colour Line Keys with up to 6 SIP Accounts - Can be Digitally Programmed as up to 24 Provisional BLF/Fast Dial Keys)
• 5 XML Programmable Context Sensitive Soft Keys, 5 Navigation/Menu Keys
• 10 Dedicated Function Keys for - Message with LED Indicator, Phonebook, Transfer, Conference, Hold, Headset, Mute, Send/Redial, Speakerphone, Vol+, Vol-

Power & Green Energy Efficiency

• Universal Power Adapter Included - Input: 100 - 240V; Output: +12V, 1A Integrated Power-over-Ethernet (802.3af) Max Power Consumption 6.1W (Power Adapter) or 7.8W (PoE)

QoS

• Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)

Auxiliary Ports

• RJ9 Headset Jack (Allowing EHS with Plantronics Headsets), USB

Security

• User and Administrator Level Passwords, MD5 and MD5-sess Based Authentication, 256-bit AES Encrypted Configuration File, SRTP, TLS, 802.1x Media Access Control, Secure Boot

Multi-Langage

• English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and more

Upgrade/Provisioning

• Firmware Upgrade via FTP / TFTP / HTTP / HTTPS, Mass Provisioning with GDMS (Grandstream Device Management System), TR-069 or AES Encrypted XML Configuration File

Base Stand

• 2 Angle Positions, Wall Mountable - Wall Mount Sold Separately

Weight and Dimensions

• Dimensions - 247mm x 228mm x 82.4mm
• Weight - Unit Weight - 1020g, Package Weight - 1650g

Package Contents

• Grandstream GRP2616 Phone
• Handset with Curly Cord
• Phone Stand
• 12V Power Adapter
• Network Cable
• Quick Installation Guide
• GPL License
