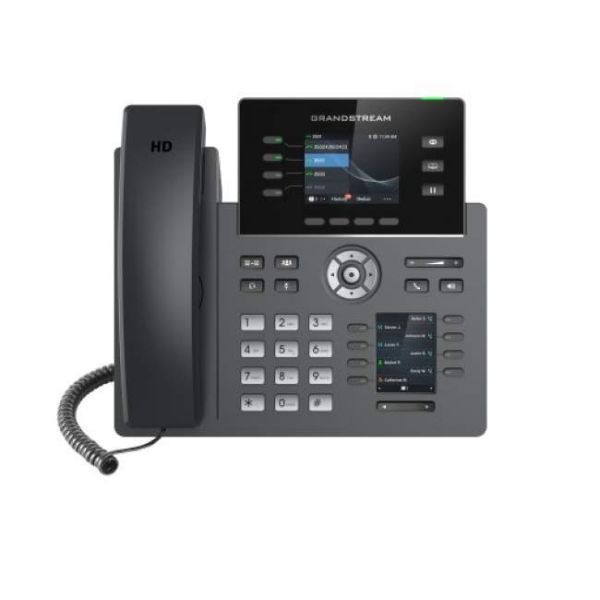

Grandstream GRP2614 IP Phone

The Grandstream GRP2614 is a 4 line Carrier Grade IP Phone designed with zero touch provisioning for mass deployment and easy management. Featuring a sleek design as well as a host of next generation features that include Dual LCD Screens with Virtual Multi-Purpose Keys (VPK's), Integrated Wi-Fi, Bluetooth Support, Dual Gigabit Ports and more.

The Grandstream GRP Series include Carrier Grade Security Features that provide Enterprise Level Security, including Secure Boot, Dual Firmware Images and Encrypted Data Storage.

For Cloud Provisioning and Centralised Management, the Grandstream GRP2614 is supported by Grandstream's Management Systems (GDMS) that provides a centralised interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Built for busy desktop workers and designed for easy deployment by enterprises, service providers and other high volume markets. The GRP2614 offers an easy to use and easy to deploy voice platform.

Features

• HD Audio, Handset and Speakerphone with Support for Wideband Audio
• 4 Line Keys With up to 4 SIP Accounts
• 8MPK Extension Keys with Dual Colour LED with 2 Left/Right Keys
• Dual LCD Screens with Digital BLF Keys
• Enterprise Level Protection Including Secure Boot, Dual Firmware Images and Encrypted Data Storage
• Integrated Dual Band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)
• Dual Switched Auto-Sensing 10/100/1000 Mbps Gigabit Ethernet Ports with Integrated PoE
• Integrated Bluetooth

Protocols/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6

Network Interfaces

• Dual Switched Auto-Sensing 10/100/1000 Mbps Gigabit Ethernet Ports with Integrated PoE

Bluetooth

• Integrated Bluetooth

Wi-Fi

• Integrated Dual Band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)

Graphic Display

• 2.8 Inch (320 x 240) TFT Colour LCD, 2.4 Inch (320 x 240) Additional Screen

Voice Codecs and Capabilities

• Support for G7.29A/B, G.711µ/a-law, G.726, G.722(Wide-Band), G723, iLBC, OPUS, In-Band and Out-of-Band DTMF(In Audio, RFC2833, SIP INFO)

Telephony Features

• Hold, Transfer, Forward
• 3-Way Conference, Call Park, Call Pickup
• Shared Call Appearance (SCA/Bridged Line Appearance (BLA)
• Downloadable Phonebook (XML, LDAP, Up to 2000 Items)
• Call Waiting, Call Log (Up to 2000 Records)
• XML Customisation of Screen, Off Hook Auto Dial, Auto Answer
• Click to Dial, Flexible Dial Plan, Hot Desking
• Personalised Music Ringtones and Music on Hold
• Server Redundancy and Fail Over

HD Audio

• HD Handset, HD Speakerphone with Support for Wideband Audio

Feature Keys

• 4 Line Keys with up to 4 SIP Accounts
• 8MPK Extension Keys with Dual Colour LED with 2 Left/Right Keys
• 4 XML Programmable Context Sensitive Soft Keys, 5 Navigation/Menu Keys
• 11 Dedicated Function Keys for - Message with LED Indicator, Phonebook, Transfer, Conference, Hold, Headset, Mute, Send/Redial, Speakerphone, Vol+, Vol-

Power & Green Energy Efficiency

• Universal Power Adapter Included - Input: 100 - 240V; Output: +12VDC, 1A Integrated Power-over-Ethernet (802.3af) Max Power Consumption 3.5W (Power Adapter) or 4W (PoE)

QoS

• Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)

Auxiliary Ports

• RJ9 Headset Jack (Allowing EHS with Plantronics Headsets)

Security

• User and Administrator Level Passwords, MD5 and MD5-sess Based Authentication, 256-bit AES Encrypted Configuration File, SRTP, TLS, 802.1x Media Access Control, Secure Boot

Multi-Langage

• English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and more

Upgrade/Provisioning

• Firmware Upgrade via FTP / TFTP / HTTP / HTTPS, Mass Provisioning with GDMS (Grandstream Device Management System), TR-069 or AES Encrypted XML Configuration File

Base Stand

• 2 Angle Positions, Wall Mountable - Wall Mount Sold Separately

Weight and Dimensions

• Dimensions - 243mm x 213mm x 82.2mm
• Weight - Unit Weight - 950g, Package Weight - 1460g

Package Contents

• Grandstream GRP2614 Phone
• Handset with Curly Cord
• Phone Stand
• 12V Power Adapter
• Network Cable
• Quick Installation Guide
• GPL License
