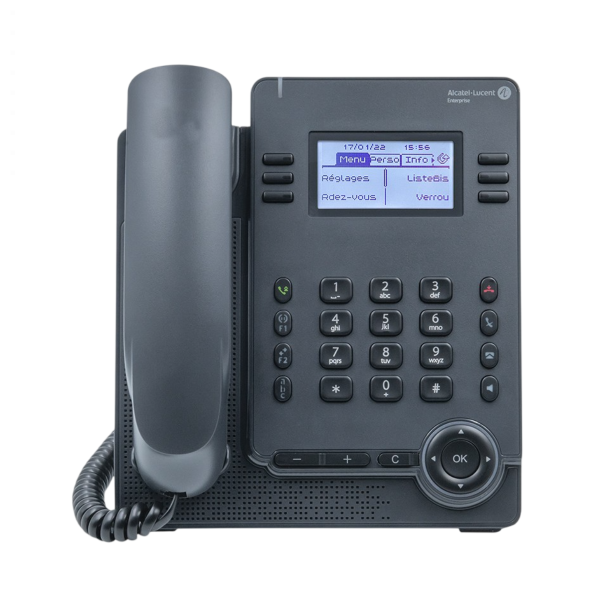

Alcatel-Lucent Enterprise ALE-20 IP DeskPhone

The Alcatel-Lucent Enterprise ALE-20 DeskPhone is a professional IP desk phone designed to provide straightforward, reliable business communications for everyday office users. Featuring dual Gigabit Ethernet connectivity, a 2.8-inch backlit display, programmable keys and wideband audio, the ALE-20 combines essential telephony functions with a simple, intuitive design.

Designed for use with compatible Alcatel-Lucent Enterprise communication platforms, the ALE-20 provides access to ALE telephony features while supporting modern IP-based workplace environments. Dual Gigabit Ethernet ports allow the phone and a compatible PC to share the same network connection, helping to simplify desktop installations.

With Power over Ethernet (PoE Class 1) support, USB-A and USB-C connectivity, an RJ9 headset interface and support for optional expansion accessories, the ALE-20 provides a flexible solution for businesses looking for a practical and expandable IP desk phone.

Designed for Everyday Business Communications

The ALE-20 provides the essential calling features required for busy offices, reception areas and general business environments. Its clear 2.8-inch monochrome LCD display with white backlight provides easy access to call information, menus and telephone functions.

A four-way navigation control with OK and cancel keys helps users move through the phone's menus, while dedicated function keys provide convenient access to frequently used calling features.

Dual Gigabit Ethernet Connectivity

Equipped with two Gigabit Ethernet connections, the ALE-20 provides high-speed network connectivity for modern IP telephone installations.

The integrated PC Ethernet port enables a compatible computer and the ALE-20 to share a network connection, helping reduce the number of individual network points required at a workstation.

Clear Wideband Audio

Designed to deliver clear business conversations, the ALE-20 supports wideband audio in IP mode, helping provide natural and intelligible speech during telephone calls.

The integrated full-duplex hands-free speakerphone allows users to handle calls without lifting the handset, while echo suppression helps maintain clear two-way conversations.

Programmable Keys for Easier Call Handling

The ALE-20 incorporates 2 x 3 contextual programmable keys, providing convenient access to telephone functions based on the user's configuration.

Dedicated keys are also provided for commonly used functions including mute, volume adjustment, hands-free operation, redial, information and messaging, helping make everyday call handling quicker and easier.

Power over Ethernet

Support for IEEE Power over Ethernet – PoE Class 1 allows the ALE-20 to receive network connectivity and power through its Ethernet connection when connected to compatible PoE infrastructure.

This can simplify desk installations by reducing the need for a separate mains power connection for the telephone.

An optional compatible USB-C power adapter can also be used where required - not included but available separately.

USB-A & USB-C Connectivity

The ALE-20 features both USB-A and USB-C interfaces, providing additional flexibility for compatible accessories and power options.

An RJ9 interface is also provided for connection of a compatible headset or ALE-10 alphabetic keyboard, giving users additional options for adapting the phone to their working requirements.

Expandable to Suit Your Workplace

For users requiring additional telephone controls, the ALE-20 supports optional ALE EM200 Smart Expansion Modules, with up to three expansion modules supported depending on the system configuration.

An optional ALE-10 alphabetic keyboard and wall mounting kit are also available, allowing the phone to be adapted for different workplace requirements.

Compatible ALE Business Communications

The ALE-20 has been developed for deployment with compatible Alcatel-Lucent Enterprise business communication systems, including ALE OmniPCX Enterprise and OXO environments.

Please Check Your Required Model

This version - The 3ML37020BB ALE-20 is the IP-only model, whilst the 3ML37020BA ALE-20h is the hybrid Digital/IP version. Although the two phones are similar in appearance and features, they are designed for different system requirements, so we recommend checking your part number and system compatibility before ordering.

Key Features

• Alcatel-Lucent Enterprise ALE-20 Essential DeskPhone
• IP Connectivity
• Dual Gigabit Ethernet 10/100/1000Mbps
• 2.8-Inch Monochrome Backlit Display
• 64 x 128 Pixel Resolution
• White Display Backlight
• Contextual Function Keys
• Four-Way Navigation
• Full-Duplex Hands-Free Speakerphone
• Wideband Audio
• Microphone Mute
• Hearing Aid Compatible (HAC)
• RJ9 Headset Connection
• USB-A Connectivity
• USB-C Connectivity
• Power over Ethernet (PoE)
• PoE Class 1
• Optional Local USB-C Power Adapter
• Wall Mounting Supported with Optional Kit
• Designed for Compatible Alcatel-Lucent Enterprise Communication Systems

Technical Specifications

Display

• 2.8-Inch Monochrome Display
• 64 x 128 Pixel Resolution
• White Backlight
• Contextual Function Keys
• Four-Way Navigation

IP & Network Connectivity

• IP Operation
• 2 x Gigabit Ethernet 10/100/1000Mbps
• RJ45 LAN Connection
• RJ45 PC Connection
• NOE-IP / SIP Protocol Support
• USB-A Port
• USB-C Port
• RJ9 Headset Connection

Audio & Calling

• Full-Duplex Hands-Free Speakerphone
• Wideband Audio
• Microphone Mute
• Echo Suppression
• Wired Headset Support
• Hearing Aid Compatible (HAC)

Power

• Power over Ethernet (PoE)
• PoE Class 1
• Optional USB-C Local Power Adapter
• 1.2W Idle / 1.6W Active Power Consumption – Without USB

Installation

• Desktop Installation
• Adjustable Stand - 40° / 55°
• Wall Mounting Supported - Optional Wall Mounting Kit Required

Product Information

• Manufacturer - Alcatel-Lucent Enterprise
• Model - ALE-20 Essential DeskPhone
• Manufacturer Part Number - 3ML37020BB
• Product Type - IP Desk Phone
• Handset Type -  Corded

Package Contents

• Alcatel-Lucent Enterprise ALE-20 IP Desk Phone
• Corded Handset
• Desk Stand
• Safety Sheet

*Please Note - A mains power adapter is not included as standard. The ALE-20 supports Power over Ethernet (PoE); an optional USB-C power adapter is available separately where required
