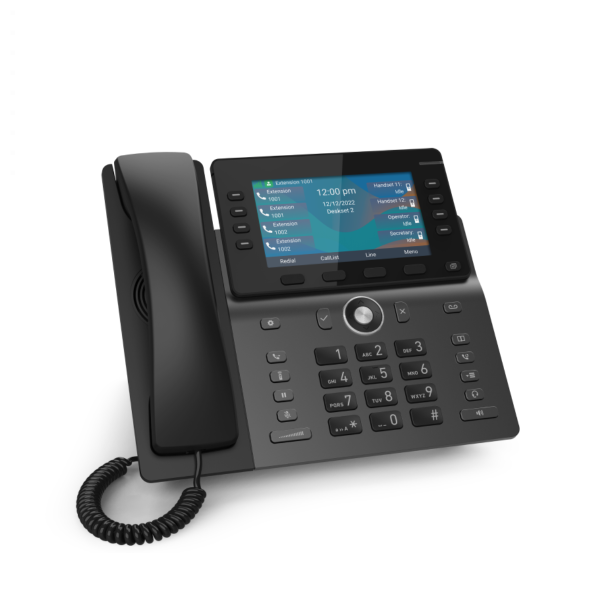

Snom M58 DECT Deskphone

Part of the new Snom M500 Dual Cell System, along with the Snom M500 Dual DECT Base Station and the Snom M55 DECT Handset (Both Sold Separately) - the Snom M58 is ideal for permanent or mobile office workplaces without the need for additional VoIP cabling. Its generous 5 Inch Colour Display, new design and anitbacterial housing make the Snom M58 a fully fledged DECT Deskphone.

All of the Snom M58's settings can be set centrally using zero touch provisioning, software updates are done over the air if necessary.

Using 8 of 24 programmable LED buttons, Snom's own system function - Shared Call Emulation can be activated in addition to standard functions.

Up to 16 calls can be distributed, held and monitored system wide on the Snom M500 Dual DECT Base Station without any programming knowledge and independently of the VoIP provider.

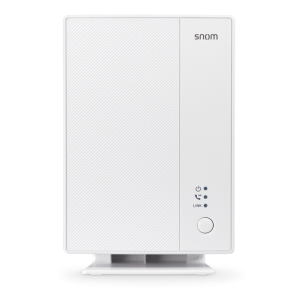

The Snom M500 Dual DECT Base Station is required to connect to your network and is sold separately.

Bluetooth Headsets are also supported.

Features:

Backlit Keypad

The Snom M58 has backlit keys, ideal for environments with low lighing conditions.

Bluetooth

The M58 has Bluetooth Headset support.

DECT

The M58 DECT Deskphone communicates using the radio standard for telecommunications - DECT which means Digital Enhanced Corded Telecommunications.

Headset Connectable

Designed with an RJ9 Headset Port that allows a Headset to be connected.

OTA Updates

The M58 can receive updates via radio, i.e OTA (Over the Air) updates. As a rule the Handset would need to be placed in the cradle for the updates to take effect.

Shared Call Emulation (SCE)

SCE is similar to BLF on Deskphones. It allows monitoring, viewing, answering, holding and transferring of calls via programmable keys in the DECT environment.

Integrated Phonebook

The Snom M58 features an integrated phonebook.

Technical Specifications:

Display and Indicators

• Display - TFT Liquid Crystal Display (LCD), Backlit, 5 Inch (127mm) Colour Display, 480 x 272 Pixel Resolution
• 13 LED Indicators - Call Status Indication - 1 Red LED, Notification of Missed Calls, Message Waiting Indication (MWI) -1 Red LED, Function Key Status Indication - 8 Dual Colour LED's - Red / Green), Audio Key Status Indication - 3 LED's - 1 Red / 2 Green.

Keypad and Function Keys

• 44 Hard Keys in Total, 12 Keys (Standard ITU Telephone Keypad), 5 Way Navigation Key, 4 Context Sensitive Function Keys, 8 SmartLabel Keys (with Dual Colour LED), Key Mapping of up to 24 Functions (8 Keys x 3 Pages)
• 5 Dedicated Audio Keys - Mute with Red LED, Speakerphone with Green LED, Headset with Green LED, Volume +/-, Rocker
• 10 Dedicated Function Keys - OK, Cancel, Message - with Red LED, Directory, Redial, Call History Lists, Settings, Intercom, Hold, PFK Page

Audio Features

• Corded Receiver - Hearing Aid Compatible (HAC)
• Speakerphone Mode, Headset Connectivity

Interfaces and Connections

• M58 Power Options - Power Adapter - 100 - 240V AC / 50 - 60 HZ / 150 mA / 5V DC / 1A
• Wired Interfaces - Headset - RJ9-4P4C Socket
• Power Adapter - Coaxial Power Connector (Socket)
• Corded Receiver - RJ9-4P4C Socket
• Wireless Interfaces - DECT, Headset (Bluetooth)
• Sensors - Hook Switch Sensor

DECT Technology

• Standard - DECT, Authentication / Encryption of Base and of Handset, Wideband Audio
• Frequency Band - 1.880 - 1.900 MHz
• Output Power: < 250 mW
• Coverage - Up to 50m Indoor Range, Up to 300m Outdoor Range
• Related Features - Software Upgrade Over the Air (SUOTA), Auto Registration when not Registered, Date and Time Synchronisation from Base Station

Package Contents

• Snom M58 DECT Deskphone
• Power Adapter
• Footstand
• Corded Handset
• Documentation
