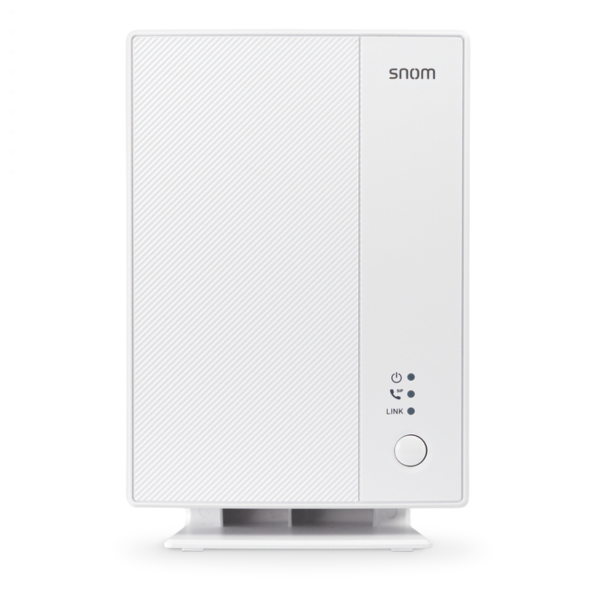

Snom M500 Dual DECT Base Station

The Snom M500 with two Base Stations forms a DECT Cell for up to 16 Phones and 16 parallel calls. Suitable for all offices and medium sized businesses, part of the new Snom M500 Dual DECT System, it supports the Snom M55 DECT Handset and the Snom M58 DECT Deskphone (Both Sold Separatley) for mobile office workplaces.

One of the distinguishing features is the unique Snom Shared Call Emulation (SCE), this enables call sharing on several lines. Calls can be monitored, accepted, held, unheld and picked up via 6 LED function keys across all registered Phones. This ensures an additional degree of flexibility in various scenarios.

The Snom M500 is equipped with the latest encryption standards (TLS & SRTP), making security one of the main focus points of this Base Station.

DECT

The Snom M500 communicates using the radio standard for telecommunications, this is called DECT (Digital Enhanced Cordless Telecommunications).

Dual Cell System

The DECT Base can be extended with a second Base to form a Dual Cell

Power over Ethernet (PoE)

The M500 receives its power via the connected network cable, provided that the network switch used supports this and has enough power to supply all of the connected devices.

Security (TLS & SRTP)

The M500 DECT Base supports all commo security protocols, such as TLS, SIPS, SRTP etc.

Shared Call Emulation (SCE)

Shared Call Emulation is similar to BLF on Desk Phones. It allows monitoring, viewing, answering, holding and transferring calls via the programmable keys.

Telephone Directory

The Base Station is designed with an integrated phone book.

Specifications:

Indicators and Keys

• 3 Led Indicators - DECT Status Indicator - 1 Dual Colour LED, VoIP Status Indicator - 1 Dual Colour LED, Power Status Indication - 1 Green LED
• 2 Dedicated Function Keys - Reset, DECT Pairing / DECT Locator

Audio Codecs and Features

• Audio Codecs - : G.711 (A-law, μ-law), G.722, G.726, G.729ab, Opus, iLBC

Interfaces and Connections

• M500 Power Options - Power over Ethernet (PoE) Class 2 - IEEE.802.3af, Power Adapter - 100-240V AC,  50-60 Hz / 5V DC (Power Adapter Required if PoE Not Available)
• Wired Interfaces - Power Adapter - Coaxial Power Connector Socket, Ethernet 10/100 Mbit/s - 2 x RJ45-8P8C Sockets (1 Port Reserved for Dual Cell Setup)
• Wireless Interfaces - DECT

User Interfaces and Setup

• Configuration and Setup via Menu Driven Web User Interface (WUI), Languages - English, French, Spanish, Italian, German, Dutch, Greek, Russian
• Automatic Configuration via Provisioning - Loading of Settings and Firmware via HTTP / HTTPS / TFTP, Zero Touch Provisioning and Authentication with Mutual TLS via Individual Certificate Issued by Snom
• Localisation - Timezone, Dial Tone

Directory Support and Call Features

• Up to 48 SIP Identities / Accounts
• Directory Support - LDAP (Server Based Directory), Central Directory on the Base Station with up to 500 Shared Entries
• XML Phonebook Support
• Related Features - Shared Call Emulation, Paging Zones, Intercom Groups

DECT Technology and Features

• Standard - DECT, Authentication / Encryption of Base and Handset, Seamless Handover, Wideband Audio
• Frequency Band - 1,880 - 1,9000 MHz, Output Power - < 250 mW
• Coverage - Up to 50m Indoor Range, Up to 300m Outdoor Range
• Single Cell Installation - Handsets - Up to 10, Narrowband Calls - Up to 8, Wideband Calls - Up to 4
• Dual Cell Installation - Handsets - Up to 16, Narrowband Calls - Up to 16, Wideband Calls - Up to 8
• Software Upgrade Over the Air (SUOTA)

Package Contents

• Snom M500 DECT Base Station
• Quick Installation Guide
