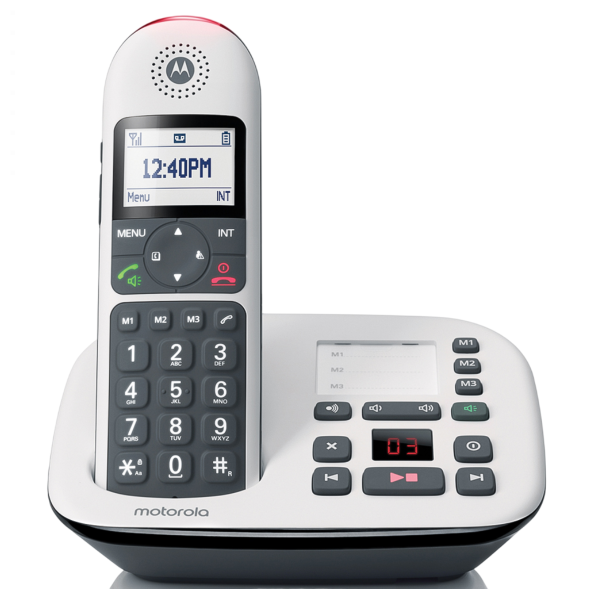

Motorola CD5 Big Button DECT TAM Cordless Phone

A Stylish, Easy to Use Digital Cordless Telephone from Motorola -  With Answering Machine and Nuisance Call Blocking Technology - Block Up to 50 Numbers

About the Motorola CD5 Series

The Motorola CD5 Series delivers simple, reliable and accessible communication in a modern, user-friendly design suitable for both home and office use. Built for everyday convenience, this range combines clear audio performance with intuitive controls to make calling effortless for all users.

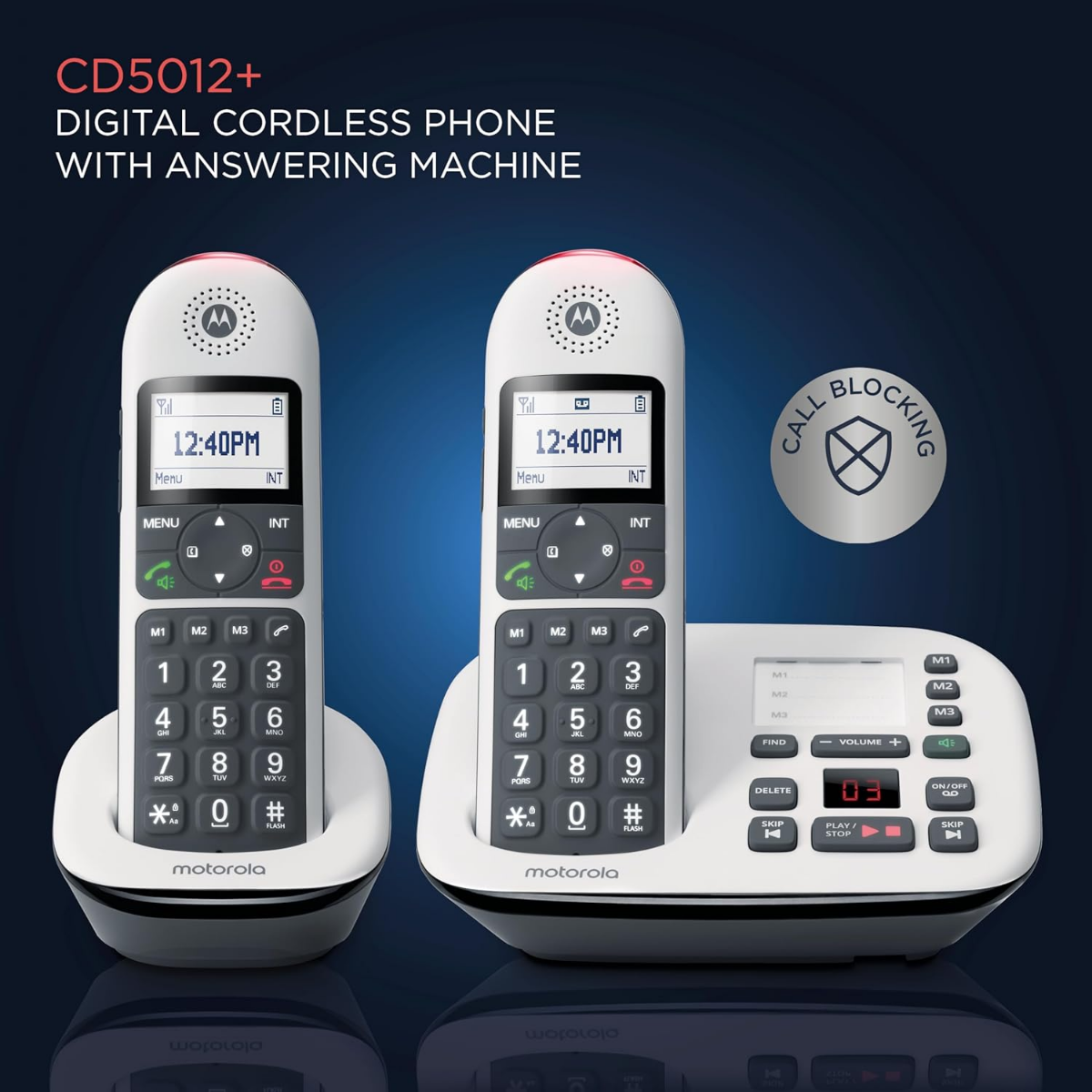

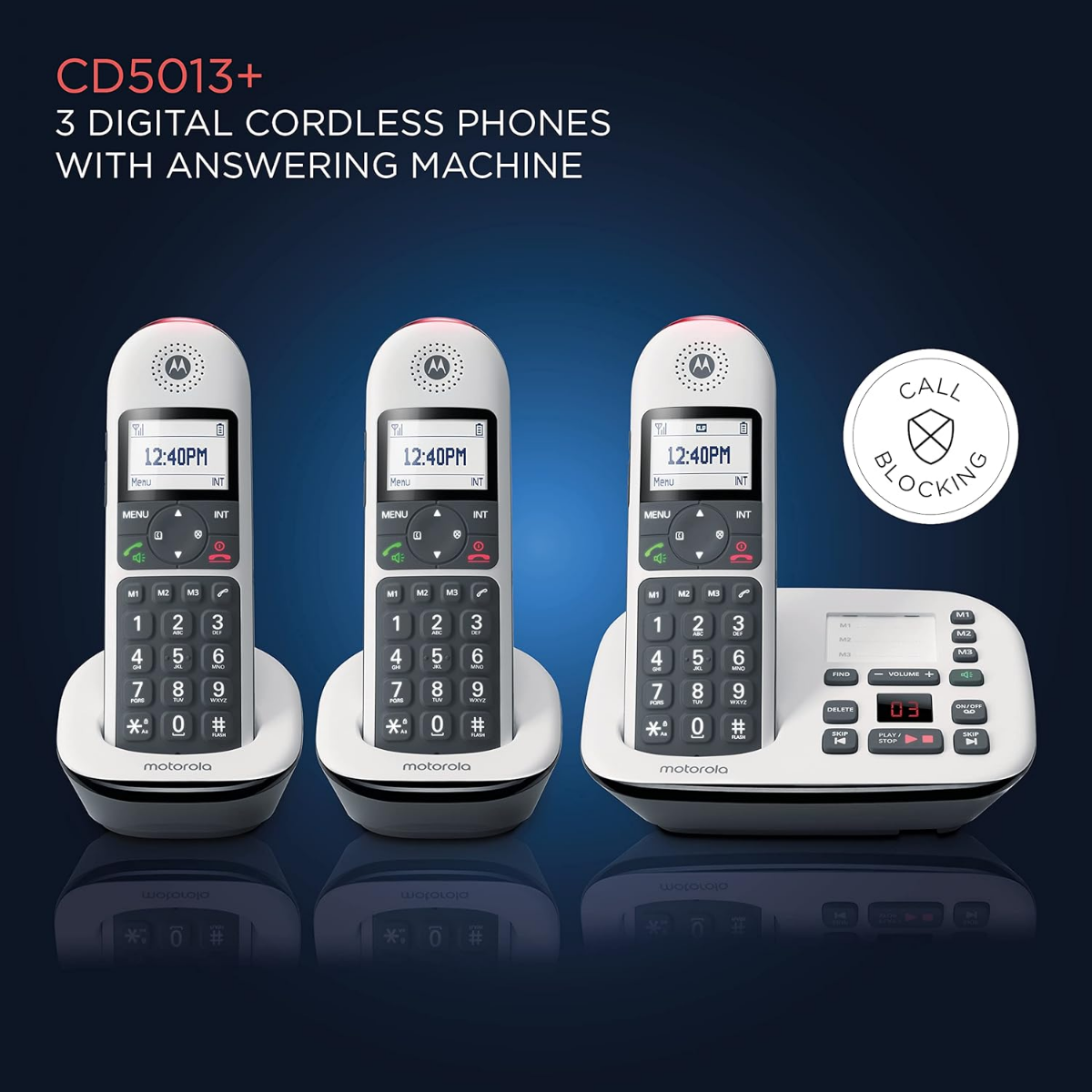

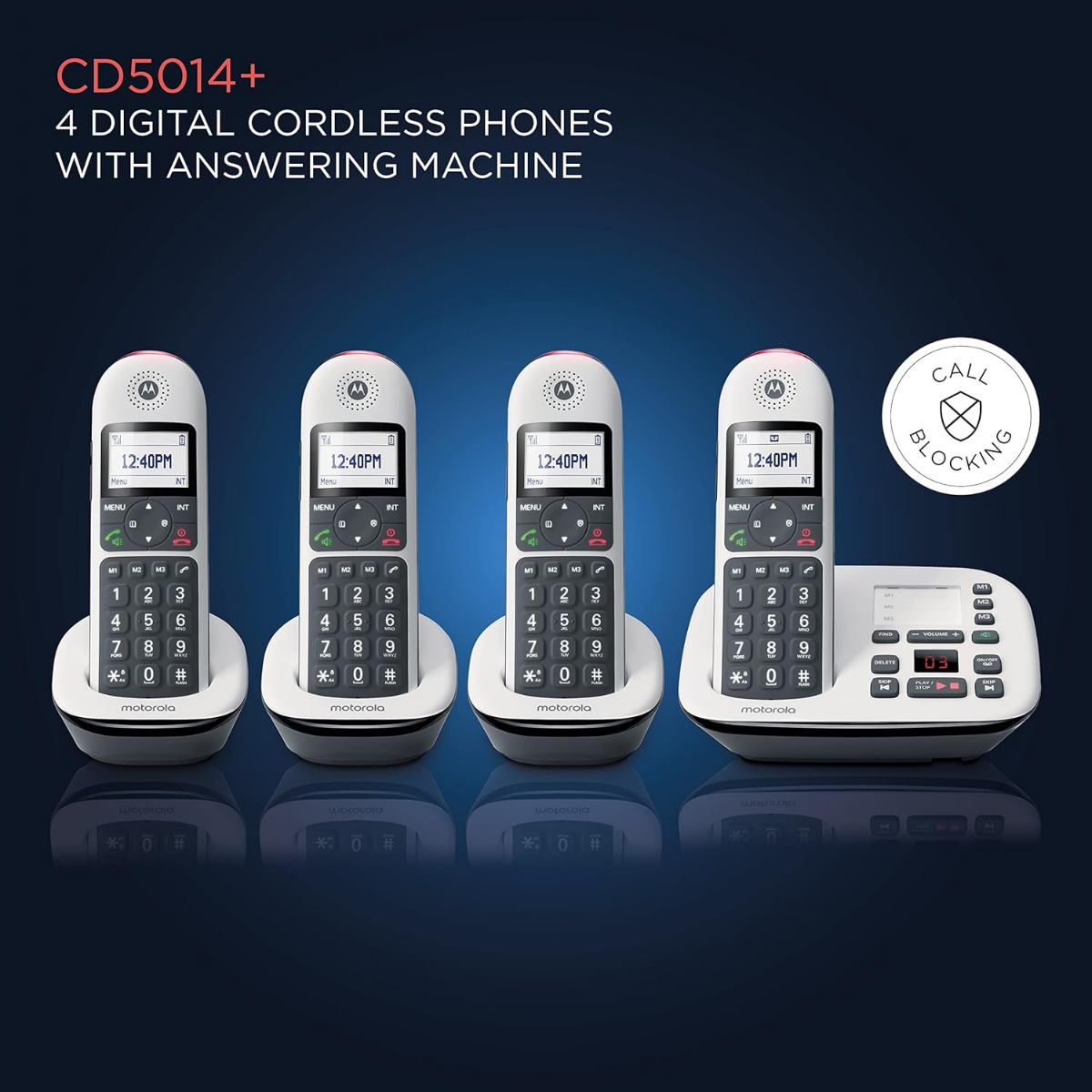

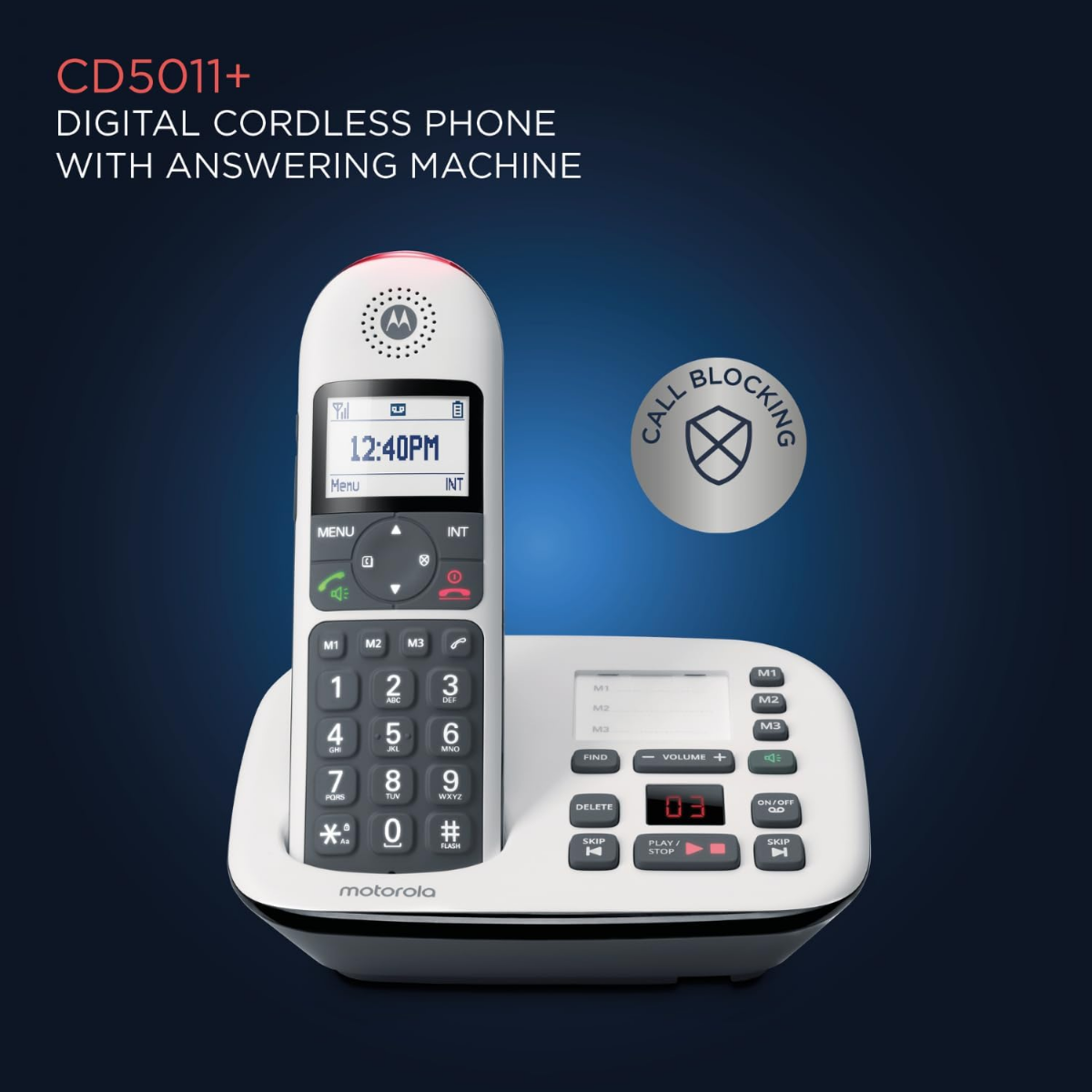

Each model in the range offers the same core features, with handset quantity varying by option - the CD5011 is a single handset, the CD5012 is a twin pack, the CD5013 includes three handsets, and the CD5014 provides a quad handset setup, making it easy to choose the right configuration for your home or workplace.

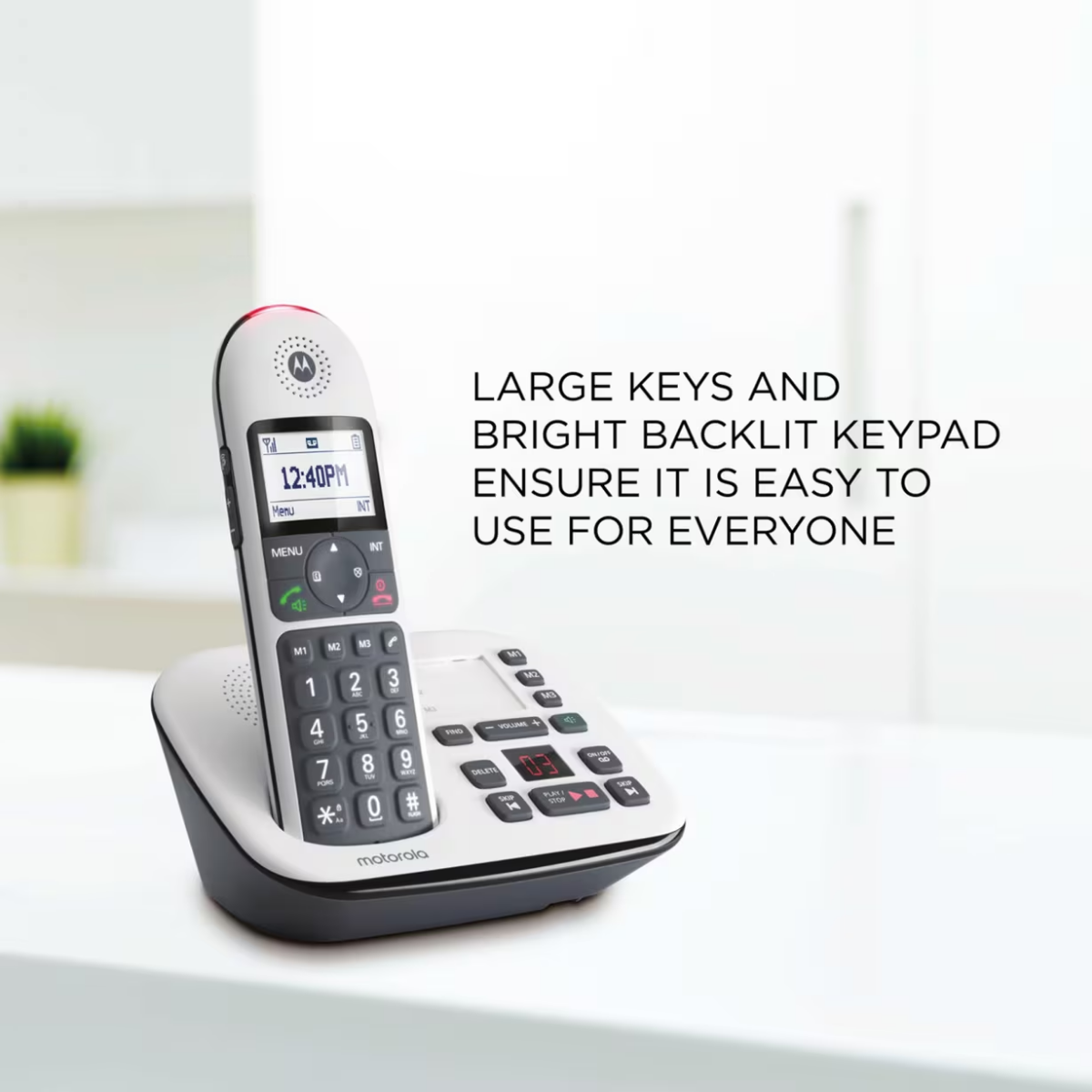

Each handset features a large, easy-to-read display and an illuminated keypad with clearly defined graphics, ensuring excellent visibility in all lighting conditions. The ergonomic design, complete with tactile buttons and a soft rubberised rear finish, provides a comfortable and secure grip during use.

Designed with enhanced audio clarity in mind, the CD5 Series is hearing aid compatible and includes a dedicated audio boost function for increased call volume when needed. A ringer volume boost also ensures incoming calls are never missed, supporting clear and accessible communication for all users.
For added convenience, three programmable direct dial keys allow instant access to frequently used contacts at the touch of a button, making everyday calling quicker and easier.

The built-in digital answering system offers up to 30 minutes of recording time, a clear message counter, and a practical night mode for quieter operation during evening hours.
To help reduce unwanted interruptions, the call blocking feature allows users to block up to 50 nuisance numbers, giving greater control over incoming calls and improving overall call experience.

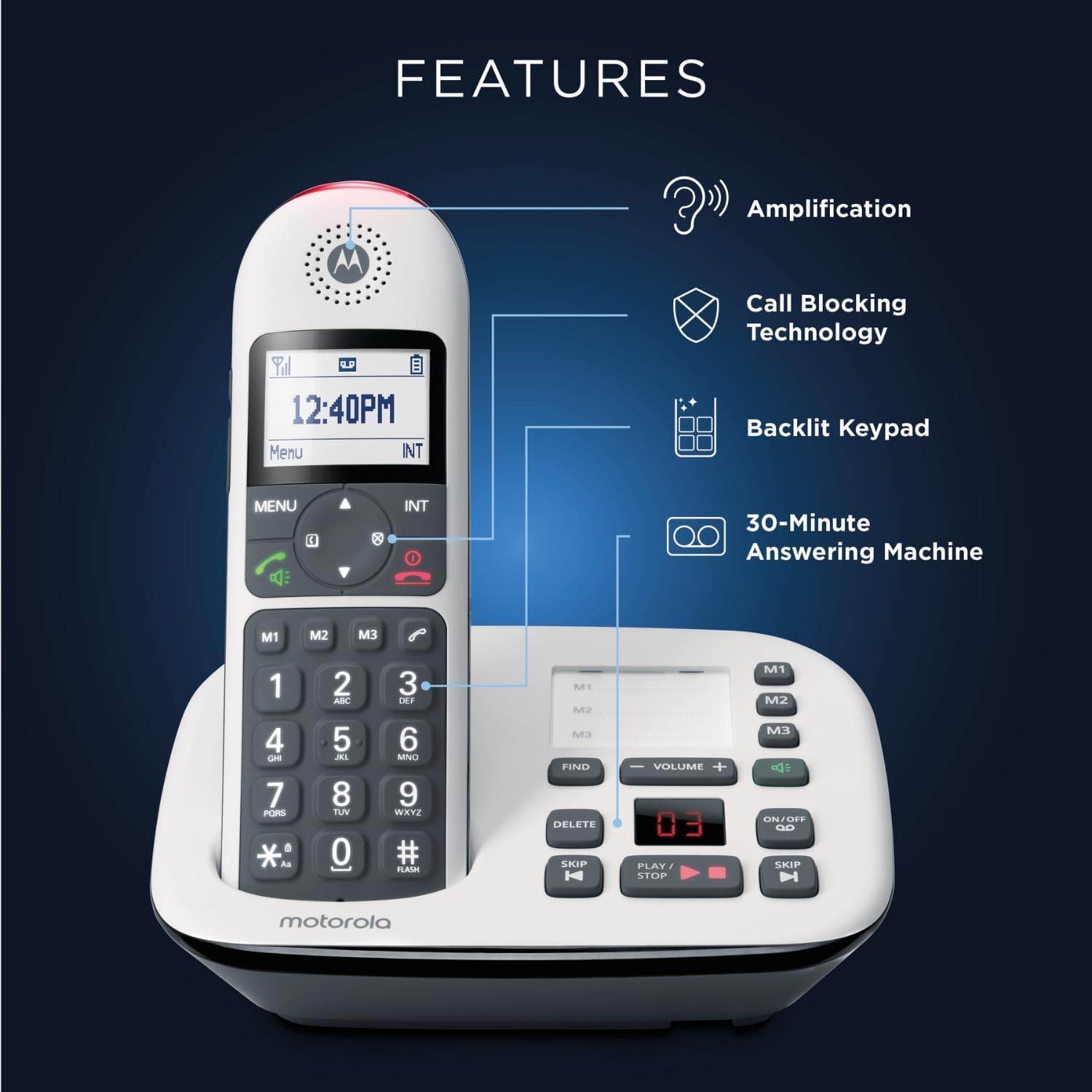

Highlights

• Call Blocking Technology*
• Easy to Read Display
• Large Visual Ring Indicator
• Amplification
• Quick Volume Control
• Handsfree Speakerphone
• Eco Mode
• Direct Dial Memory Keys
• Large Keys with Backlight
• Answering Machine with up to 30 Minutes of Digital Recording Time

*_{Subscription from Telephone Provider Needed for Feature to Work}

Technical Specifications:

General

• GAP Compatible
• 1 Base - Expandable up to 4 Handsets
• Base Station / Handset System Security Pin Code - 4 Digits
• Range Indoors - Up to 50m, Range Outdoors - Up to 300m (In Line of Sight)
• Dialing Mode - Tone / Pulse
• Page from Base to Handset
• Three Way Conferencing (2 Internal with 1 External)
• Out of Range Warning - Standby - Visual, In Call - Audible and Visual
• Three Way Conferencong Plus Simultaneous Intercom
• Auto Talk - Can be Disabled
• Recall / Flash - Timed Break (Flash) Only
• Dialling Pause, Pre Dialling
• Restore to Default Settings
• Call Timer, Keypad Lock
• Handset Power On / Off
• Microphone Mute
• 10 Number Redial Memory
• Display Languages - English, French, German, Dutch, Spanish, Greek, Portuguese, Italian, Turkish
• Ability to Name Handsets
• Call Transfer Between Handsets
• Intercom Between Handsets
• 3 Direct Dial Memory Keys
• Eco Mode, Night Mode, Welcome Mode

Display and Aesthetics

• Primary Liquid Crystal Display - 1.8 Inch Black and White Full Graphic Display (128 x 64)
• Key Count - Handset - 27 Keys Including 3 One Touch Dial Keys and 3 Side Keys, TAM - 12 Keys
• LEDs / Indicators - Incoming Call - Red Indication
• White Display Backlight
• White Backlit Keypad
• New Message Indicator
• Screensaver
• Idle Display - Handset Name, Date and Time or Time Only

Character Sets /  Text

• Character Types Supported - Large Font with Zoom Dialling

Sound / Audio

• Loud Ringer on Base and on Handset
• 1 Fixed Ringtone on Internal Calls
• Hearing Aid Compatible
• Handsfree Speakerphone
• 20 Polyphonic Ringer Melodies on Handset, 1 Melody on Base
• Handset Ringer Volume Control - 5 Levels and Off
• Handset Receiver Volume Control - 5 Levels + Amplified 10dB
• Keytone On / Off, Equaliser

Phonebook

• Phonebook - 150 Entries, Name up to 16 Characters, Numbers up to 24 Digits
• Option to Empty Phonebook
• Copy Caller ID to Phonebook
• Copy Redial Number to Phonebook

Caller ID*

• Caller ID Mode - FSK / DTMF / Bellcore
• Caller ID Type 1 and Type 2
• Name and Number Displayed on Screen During Incoming Call
• Call List - 20 Dynamic Allocation Between Received and Missed Calls Stored in Base
• Caller ID Matching to Phonebook
• Calls List Includes Time and Date of Call

*_{Subscription from Telephone Provider Needed for Feature to Work}

Network

• Multi Country Settings
• Network Voicemail Indication
• Option to Disable RPAS - Refer to Settings

Call Blocking*

• Block Calls by Number
• Block Calls by Type

_{*Subscription from Telephone Provider Needed for Feature to Work}

Power

• Energy Efficient Power Supply
• NiMH Battery Pack
• Low Battery Warning
• Talk Time** - Up to 18 Hours, Standby Time** - Up to 300hrs

**_{Talk and Standby Times are Approximate and Dependent on Features Selected and Usage}

Answering Machine

• 2 Pre-Recorded Outgoing Messages - Answer and Record / Answer Only
• Total Digital Recording Time - Up to 30 Minutes
• Incoming Message Length - Can be Set to 1, 2, or 3 Minutes
• Call Screening / Call Intercept
• New Message Indicator, Message Full Indicator
• Private Playback via Handset
• Playback Features - Play, Delete, Skip Back, Skip Forwards
• Remote Control from Outside Line (DTMF) - Pin Protected
• Remote Control from Handset
• Ring Delay Selector - 3-5, Time Saver

Package Contents

• Motorola CCD5011, CD5012, CD5013 or CD5014 DECT TAM Cordless Phone (Select at Checkout)
• Power Supplies
• Line Cord
• User Documentation
