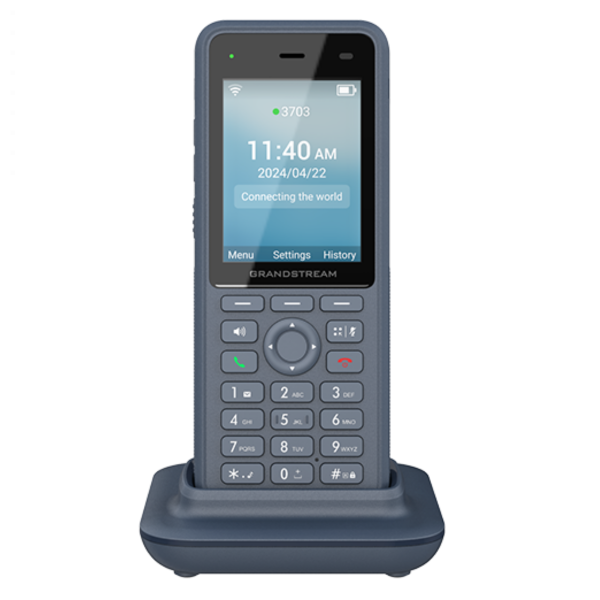

Grandstream WP836 Cordless Wi-Fi IP Phone

A Cordless Ruggidized Wi-Fi IP Phone with Many Features that Include - a 2.8 Inch Colour LCD, Integrated Bluetooth, 3 SIP Accounts, Configurable Push to Talk Button & Man Down Alarm, USB-C Charging Port

About the Grandstream WP836

Whether in an Office, Retail Space, Warehouse, or Healthcare setting, the Grandstream WP836 Ruggedized Cordless Wi-Fi IP Phone offers a seamless and flexible communication experience. Its sleek design, intuitive interface, and array of customizable features make it a versatile solution for any business.

The WP836 provides up to 10 hours of talk time and up to 240 hours of standby time via its rechargeable 3000mAh Battery. A Configurable Push to Talk Button and Alarm Functions include Man Down and  No Movement.

Features

• Dual Band Wi-Fi 6, with Efficient Antenna Design and Advanced Roaming Support
• 3 SIP Accounts, 3 Lines, 4 Conferences
• HD Voice & Dual Mic Design with AEC and Noise Shield Technology
• Integrated Bluetooth to Connect Headsets
• Rechargeable 3000mAh Battery Provides up to 10 Hours of Talk Time and up to 240 Hours of Standby Time
• Configurable Push to Talk (PTT) Button - Instantly Connect with your Team
• USB-C Type Charging Port - Supports Fast Charging
• Accelerometer, Emergency Button
• Wall Mountable Charger, Drop Safe - Up to 2.0m
• IP67 Rated - Waterproof, Dustproof, Chemical Resistant Antibacterial Casing

Technical Specifications:

Protocols / Standards

• SIP RFC3261, DNS (A record, SRV, NATPR), DHCP, SSH, NTP, STUN, LDAP, TR069, SRTP, RTP/RTCP, RTCP-XR, TFTP, SIMPLE, HTTP/HTTPS, TCP, UDP, TLS, ARP,
  ICMP, IPv4, IPv6, 802.1x

Voice Codecs and Capabilities

• G.729A/B, G.711µ/a-law, G.726, G.722(Wide-Band), G.723, iLBC, Opus, In- band and Out-of-Band DTMF (in Audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB,
  Noise Shield

Wi-Fi

• Integrated Dual Band Wi-Fi 6 - 802.11 a/b/g/n/ac/ax (2.4GHz & 5GHz). 802.11k/r/v Supported, 2T2R Supported

Wi-Fi Encryption

• Supports WEP, WPA, WPA2, WPA3 (Personal)

Graphic

• 2.8 Inch (240 x 320) Colour LCD (Dual Colour MWI)

Bluetooth

• Integrated Bluetooth

Peripherals

• 3 Soft Keys, Navigation Keys, Confirm Key, Dial Key, Hang up Key, Speaker Key, Quick Access and Mute Key, Backlight DTMF Keyboard, Volume Keys, Push to Talk Key, Accelerometer, Proximity Sensor

Push to Talk

• Customisable Function Button for Alarm (Pending) and Paging)

Auxiliary Ports

• USB Type-C Charging Interface (Supports Fast Charging)

Telephony

• Hold, Transfer, Forward, 4 Way Audio Conference, Call Park, Downloadable Phonebook (XML, LDAP, up to 1000 Items), Call Waiting, Call Log (Up to 200 Records), Auto Answer, Click to Dial, Flexible Dial Plan, Personalised Music Ringtones, Server Redundancy and Fail-Over, Push to Talk

Wall Mount

• Base Supports Wall Mounting

Security

• Ordinary Iser and Administrator Level Passwords based on SHA-256 and SHA-256 sess Authentication, SIP Authentication Algorithms based on SHA-256, SHA-256
  sess, SHA-512-256, SHA-512-256 sess, MD5 sess. AES Security Profile, SRTP, TLS Call Encryption, 802.1x Media Access Control

HD Audio

• The Handset is Broadband Audio, the Speaker is Narrowband Audio, Supporting HAC and Dual Mic

QoS

• Supports Layer 3 QoS (Tos, DiffServ, MPLS, DSCP)

Multi-Language

• Simplified Chinese, Traditional Chinese, English, Arabic, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Magyar, Italian, Japanese, Korean,
  Latvian, Dutch, Polish, Portuguese, Russian, Swedish, Slovenian, Slovak, Turkish, Ukrainian

Upgrade and Provisioning

• Firmware Upgrade via FTP / FTPS / TFTP / HTTP / HTTPS, mass Provisioning using GDMS/TR069 or AES Encrypted XML Configuration File

Power & Green Energy Efficiency

• Universal Power Adapter - Input - 100-240VAC, Output - +5VDC, 2A (10W), 3000mAh Lithium-Ion Battery, Standby Time 240h, Talk Time 10h (Laboratory Data)

Physical Weights & Dimensions

• Handset Dimensions - 155mm x 62mm x 19mm
• Charger Cradle Dimensions - 95mm x 95mm x 30.5mm
• Handset Weight (Excluding Battery) - 158g
• Package Weight - 616g

Weatherproof

• IP67 Rated Weatherproof, Dustproof, Cleaning Chemical Resistant, Anribacterial Casing and 2.0m Drop Safe

Package Contents

• Grandstream WP836 Phone
• USB Type-C Power Adapter
• Charging Base
• Belt Clip
• Lithium Battery
• M3 Screw, Wall Bracket
• Quick Installation Guide
