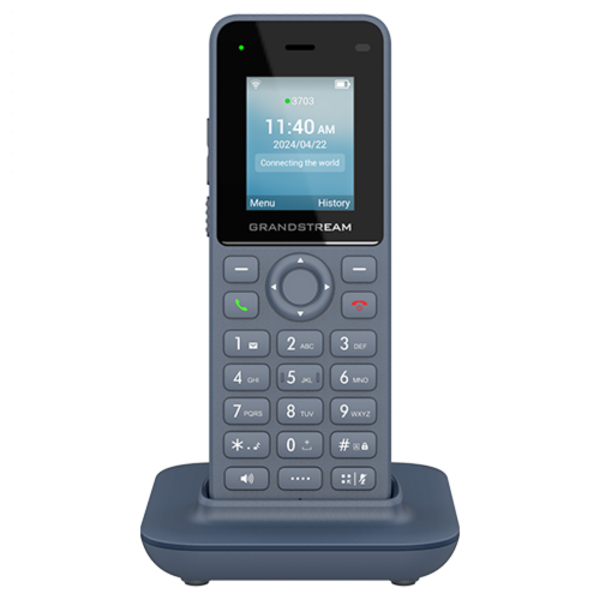

Grandstream WP816 Cordless Wi-Fi IP Phone

A Cordless Wi-Fi IP Phone with Many Features that Include - a 1.77 Inch Colour LCD, Integrated Bluetooth, 2 SIP Accounts, Configurable Push to Talk Button, USB-C Charging Port & 3.5mm Headset Port

About the Grandstream WP816

The Grandstream WP816 Cordless Wi-Fi IP Phone has been designed for many enterprises, including Offices, Retail, Healthcare, Logistics, Security and more. Its sleek design is equipped with Integrated Dual Band Wi-Fi 6, an Advanced Antenna Design, Roaming Support, 3 Way Voice Conferencing and support for the Opus HD Voice Codec.

The WP816 provides up to 6 hours of talk time and up to 120 hours of standby time via its rechargeable 1500mAh Battery. Its easy to use interface and variety of practical, customisable features ensure that the Grandstream WP816 provides flexibility, durability and mobility to all voice solutions.

Features

• Dual Band Wi-Fi 6, with Efficient Antenna Design and Advanced Roaming Support
• 2 SIP Accounts, 2 Lines
• HD Voice & Dual Mic Design with AEC and Noise Shield Technology
• Integrated Bluetooth to Connect Headsets
• Rechargeable 1500mAh Battery Provides up to 6 Hours of Talk Time and up to 120 Hours of Standby Time
• Configurable Push to Talk (PTT) Button - Instantly Connect with your Team
• USB-C Type Charging Port - Supports Fast Charging & 3.5mm Headset Jack
• Accelerometer, Emergency Button
• Wall Mountable
• Drop Safe - Up to 1.8m on Marble or Cemented Floors

Technical Specifications:

Protocols / Standards

• SIP RFC3261, DNS (A Record, SRV, NATPR), DHCP, SSH, NTP, STUN, LDAP, TR069, SNMP, STRP, RTP/RTCP, RTCP-XR, TFTP, SIMPLE, HTTP/HTTPS, TCP, UDP, TLS, ARP, ICMP, IPv4, IPv6, 802.1x

Voice Codecs and Capabilities

• G.729A/B, G.711µ/a-law, G.726, G.722(Wide-Band), G.723, iLBC, Opus, In- Band and Out-of-Band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB, Headset Noise Shield

Wi-Fi

• Integrated Dual Band Wi-Fi 6 - 802.11 a/b/g/n/ac/ax (2.4GHz & 5GHz). 802.11k/r/v Supported

Wi-Fi Encryption

• Supports WEP, WPA, WPA2, WPA3 (Personal)

Graphic

• 1.77 Inch (128 x 160) Colour LCD (Dual Colour MWI)

Bluetooth

• Integrated Bluetooth

Peripherals

• 2 Soft Keys, Navigation Keys, Confirm Key, Dial Key, Hang up Key, Speaker Key, Quick Access and Mute Key, Backlight DTMF Keyboard, Volume Keys, Push to Talk Key, Accelerometer, Proximity Sensor

Push to Talk

• Customisable Function Button for Alarm (Pending) and Paging)

Auxiliary Ports

• 3.5mm Headphone Interface (CTIA Cable Sequence) USB Type-C Charging Interface (Supports Fast Charging)

Telephony

• Hold, Transfer, Forward, 3 Way Audio Conference, Call Park, Downloadable Phonebook (XML, LDAP, up to 1000 Items), Call Waiting, Call Log (Up to 200 Records), Auto Answer, Click to Dial, Flexible Dial Plan, Personalised Music Ringtones, Server Redundancy and Fail-Over, Push to Talk

Wall Mount

• Base Supports Wall Mounting

Security

• Ordinary User and Administrator Level Passwords based on MD5 and MD5 sess Authentication, SIP Authentication Algorithms based on SHA-256, SHA-256 sess, SHA-512-256, SHA-512-256 sess, md5 sess. AES security profile, SRTP, TLS Call Encryption, 802.1x Media Access Control

HD Audio

• The Earpiece is Broadband Audio, the Speaker is Narrowband Audio, Supporting HAC and Dual Mic

QoS

• Supports Layer 3 QoS (Tos, DiffServ, MPLS, DSCP)

Multi-Language

• Simplified Chinese, Traditional Chinese, English, Arabic, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Magyar, Italian, Japanese, Korean,
  Latvian, Dutch, Polish, Portuguese, Russian, Swedish, Slovenian, Slovak, Turkish, Ukrainian

Upgrade and Provisioning

• Firmware Upgrade via FTP / FTPS / TFTP / HTTP / HTTPS, mass Provisioning using GDMS/TR069 or AES Encrypted XML Configuration File

Power & Green Energy Efficiency

• Universal Power Adapter - Input - 100-240VAC, Output - +5VDC, 2A (10W), 3000mAh Lithium-Ion Battery, Standby Time 120h, Talk Time 6h (Laboratory Data)

Physical Weights & Dimensions

• Handset Dimensions - 135mm x 49mm x 15.5mm
• Charger Cradle Dimensions - 85mm x 85mm x 25.8mm
• Handset Weight (Excluding Battery) - 82g
• Package Weight - 389g

Package Contents

• Grandstream WP816 Phone
• USB Type-C Power Adapter
• Charging Base
• Belt Clip
• Lithium Battery
• M3 Screw, Wall Bracket
• Quick Installation Guide
