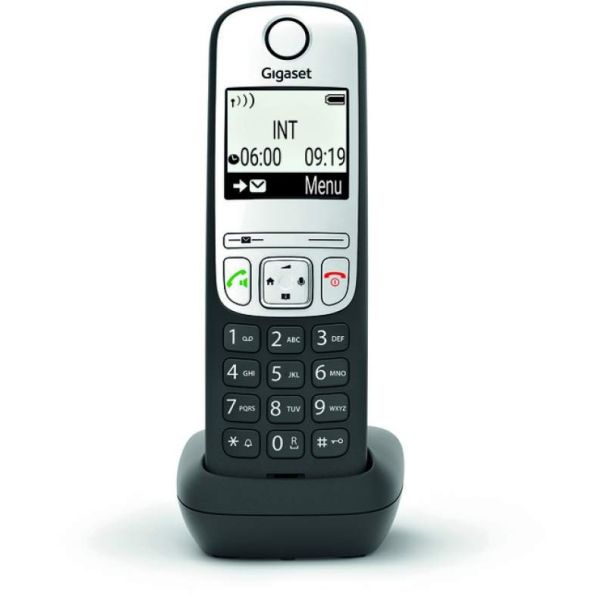

Gigaset A690HX Additional DECT Handset

Reliable Quality for Daily Communication

The Gigaset A690HX DECT Handset replaces the A540H DECT Handset. Featuring a 2 Inch Graphical Display, the Gigaset A690HX is compatible with the N300IP DECT Base Station and the N510 Pro Dect IP Base Station making it easy to add to existing systems. Positioned as the entry level handset in the range, the A690HX offers an Intuitive device at at a low price, making it ideal for small to medium sized businesses.

An impressive long talk time of up to 12 hours and a standby time of up to 180 hours, the Gigaset A690HX can also double up as a baby monitor with Intercom function.

Features

• Universal Handset to Supplement the Following - Gigaset DECT Base Stations, DECT/GAP Telephone Base Stations of Other Manufacturers, DECT/GAP Routers (e.g - AVM, FRITZ!Box, Routers with DECT CAT-iq 2.0
• Illuminated Black and White Graphic Display
• Handsfree Talking in Best Sound Quality
• Call Block Function for up to 32 Numbers
• HD Voice with Selectable Sound Profiles
• Phone Book for up to 150 Names and Numbers with VIP Setting
• Ergonomic Keypad made of High Quality Material
• Long Talk Time of Up to 12 Hours and Standby Time of 180 Hours

Telephone Book and Dialing Functions

• Phone Book for up to 150 Names and Numbers with VIP Setting
• Large Font in Dial Mode for Improved Readability
• Adjustable Ringtones - 25 Melodies in Handset, 5 Adjustable Volume Levels / Off
• Individual Ringtones for External, Internal, VIP Calls and Alarm Clock
• Call Block Function for up to 32 Numbers - Locally in the Handset for CATiq and GAP System, Easy Transfer of an Incoming Number to Call Block List
• Anonymous Call Suppression - Calls Without CLIP Number are only Indicated Visually
• Day / Night Mode - Timed Ringtone Deactivation on Handset, with the Exception Of VIP Contacts

Audio Quality

• Excellent Audio Performance - Handset Complies with CAT-iq 2.0 Audio Requirements (HD Voice)
• Hands Free Talking on the Handset in the Best Sound Quality
• Adjustable Volume of Handset Sound (5 Levels)
• Two Sound Profiles for Optimal Hearing
• Ringer Melody Output in Handset Via Handsfree Speaker
• Ringer Melodies with Adjustable Volume Setting (5 Levels)
• Advisory Tone for Key Confirmation, Low Battery, Charging Contact and when Reaching the Limit of the Base Station Range
• Hearing Aid Compatible

Display

• Illuminated Black and White Graphic Display
• 34 x 37 mm (H x W), 5.1cm / 2 Inch (Diagonal) 96 x 64 Pixel
• Display Illumination - White
• In Standby Mode - Display of Date and Time, Display of Field Strength and Battery Charge Status, Display Keys for Fast Selection of Functions
• During a Call - Display of Call Duration

Display of Missed Calls / Caller List

• Display and Flashing Message Key Indicates Missed Calls and Provides Convenient Access to Message List
• Direct Dialing out of Missed Calls List
• List of the Last 25 Missed Calls with Number / Name and Time

Keypad

• Ergonomic Keypad made of High Quality Material (Metal Dome Technology)
• Easy Handling due to Large Keys
• 12 Numeric Keys and 2 Soft Keys - Soft Key on Right Hand Side Individually Programmable
• 4 Way Navigation Key
• Illuminated Keypad and Navigation Area - Amber - Coloured
• Illuminated Pick Up / Hands Free Key (Green LED)
• Illuminated ‘‘Hang-Up’’- / Message Key (Red LED)
• Keypad Protection On/Off Through # Key
• Ringer Tone On/Off Through * Key
• Dialling Key (Programmable Flash Times)
• Dial Preparation (Input of Phone Number Before the Actual DIaling Procedure) With Correction Option
• Redial of the Last 10 Different Numbers
• Programmable Speed Dial Shortcut Keys (Keys 2-9)
• Dialing Procedure - Dual Tone - Multi-Frequency Dialing (DTMF), Pulse Dialing (DP)
• Dialing Key
• Phonebook Transfer Between Handsets or to a CATiq Base Station

Call Display and Signalling

• Call Display with Number or Name (CLIP / CNIP)
• For Incoming and Missed Calls
• Optical Indication of Call in Display and Via Flashing Handsfree Key

Menu

• Convenient Menu Guidance in Various Languages (D, GB, F, I, E, P, TR, etc.)
• Simple Operation via Symbols, Text Based Menu and Soft Keys

Additional Functions

• Plug & Play - Very Easy Installation - Unpack, Plug In, and Call (Handset Registered ex Works)
• Alarm Clock Feature with Adjustable Melody and Snooze Function
• Baby Monitor (Baby Alarm) with Intercom Function - to an External Device, such as a Mobile Telephone, or to an Internal Device, Such as an Additional Handset
• Settings, Telephone Book, Caller List, Date and Time Function are Protected Against Power Failure

ECO DECT

• Automatic Reduction of the Transmitting Power Depending on the Distance Between the Handset and the Base Station
• Radiation-Free in Standby Mode, even if several handsets are used, as long as all registered handsets support ECO DECT

Technical Data:

Standards

• DECT, GAP, CATiq 2.0, SUOTA

Handset

• Standby Time - Up to 180 Hours
• Talk Time - Up to 12 Hours
• Batteries - 2 x AAA (NiMH), Rechargeable
• Charging Time - 4.5 Hours in Charging Cradle
• Range - Up to 50m Indoors, Up to 300m Outdoors
• Dimensions - 155mm x 49mm x 28mm (H x W x D)
• Weight - Approximately 119g (Including Batteries)

Charger

• Power Supply - 230V Plug in Power Adapter
• Dimensions - 38mm x 70mm x 77mm (H x W x D)
• Weight - 36g
• Charger Suitable for Wall Mounting

Package Contents

• 1 x Gigaset A690HX Handset
• 1 x Charger
• 1 x Plug in Power Adapter
• 2 x AAA Rechargeable Batteries (NiMH)
• 1 x Battery Compartment Cover
• 1 x User Manual
