Fanvil PA2S - SIP Video Intercom & Paging Gateway

About the Fanvil PA25

The Fanvil PA2S is an SIP Video Intercom and Paging Gateway for industry applications. It uses the standard IP/RTP/RTSP protocol for media streaming, and sets a variety of functional interfaces in one device that include - Broadcast, Recording, Intercom, Security. Through the connection of the external devices to achieve audio and video intercom, broadcast, security trigger and other practical functions, Fanvil PA2S can apply to multiple scenarios to deploy the equipment. The small size of the Intercom and Paging Gateway make it suitable for use in all DIY applications of various integrated solutions.

Industrial Aesthetic Design

Compact and delicate, the PA2S is designed with concept of industrial aesthetics, simple and flexible to embed in other industry equipment.

SIP Unified Communication for Full Connectivity

Based on SIP standard communication protocol, Fanvil PA2S can be widely deployed in both LAN and WAN, which maintains the value of equipment investment.

HD Audio

Supporting Wideband codec G.722 and Opus, the FanvilPA2S brings users a crystal clear telecom level auditory experience, allowing the sound to spread much further and sound clearer. The sound can be heard clearly even in large public areas.

Online Broadcasting or MP3 Broadcasting

The Fanvil PA2S can be connected to external devices, such as Microphones, Mobile Phones, FM Radio's and Speakers, supporting MP3 Broadcast provide to real-time broadcasting in Campus, Hospitals, Industrial Parks, Airports and more.

Wide Scalability

The PA2S can be connected to Infared Probes and Switches to trigger the alarm lights, barrier roads and other equipment through the input/output interfaces for automatic alarm and for remote opening of doors.

Supports HD Video Linkage

Users can view the HD Video image of the camera on an IP Phone through Fanvil PA2S, allowing users to monitor the surroundings in real-time.

Features

• Emergency Call Button Interface, Active Call
• NVR Video Recording, Standard RJ45 Interface
• Recording Output, 3.5mm Standard Audio Interface
• Audio Line Out Port, Expandable External Active Speaker
• 1 Switch Signal Input and Output Port (Built in Relay)
• 10w-30w Mono Channel Power Amplifier Output
• Adaptive 10/100 Mbps Network Port, Integrated PoE
• Compatible with Major Platforms that Include - Asterisk, Broadsoft, 3CX, Avaya etc

Generic

• 2 SIP Lines
• Speed Dial
• Linkage with IP Camera to Video Intercom
• Voice Announcement of the IP Address (In English)
• MP3 Broadcasting
• Supports Mono Active Speaker (Audio Line Out)
• Supports Audio Line In
• Talkback Recording Output
• Switch Signal Input and Output
• Supports Programmable DSS Key Ports
• PoE Enabled

Device Functions

• Auto Answering
• Programmable DSS Keys
• Through Button or Web Page Volume Adjustment
• Network Time Synchronisation
• Time Plan (Task Management)
• Incoming Call Multicast
• HTTP API
• Action URL / Active URI

Call Functions

• Call Out / Answer / Reject
• Call Waiting
• Intercom, Multicast
• Speed Dial
• Anonymous Call (Hide Caller ID)

Audio

• Narrowband Codec - G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
• Wideband Codec - G.722, Opus
• Full Duplex Handsfree Speakerphone with AEC
• DTMF - In-Band, Out-of-Band (RFC2833/ SIP INFO)

Network

• Physical - 10/100 Mbps Ethernet
• IP Mode - IPv4/IPv6/IPv4&IPv6
• IP Configuration - Static IP / DHCP / PPPoE
• VPN - L2TP / OpenVPN
• VLAN

Protocols

• SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP;
• IPv6
• PPPoE
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Management

• Auto Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Firmware Upgrade
• Syslog

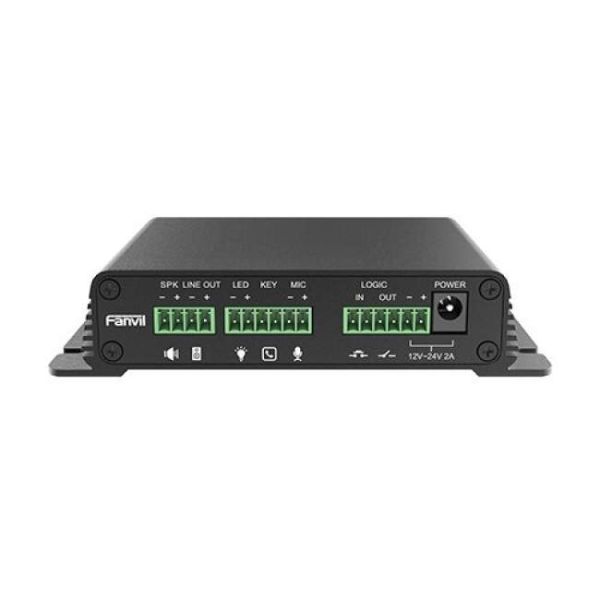

Physical Specifications

• Keypad - 3 Keys, Including - 2 Volume Control Keys (Up/Down), 1 Reset
• RJ45 Port x2 - Connect the Network
• WAN Port - Connect the Network, Support PoE, Camera Port - Connected to the Original Camera
• Blue LED x 1 - SIP Status and Network Status
• Recording Output Port x 1 - Connect Audio Device, Out - Mixed Output of Local Microphone and Call Voice Recording, 3.5mm Standard Aufio Port, Impedance - 15 Ohm
• Ground Screw x 1
• Passive Speaker Port x 1 - Connect the Speaker - Output Power - 4Ω, PoE/10W, 12V/10W, 18V/20W, 24V/30W; Related to Power Supply Voltage, 8Ω, PoE/5W, 12V/5W, 18V/10W, 24V/15W; Related to Power Supply Voltage
• Line Out Port x 1 - Out - Adjustable by Volume, Max up to 1.2Vpp, Port - Terminal Socket
• DSS Keys Port x1 - Connect the External Buttons (Support LED), LED - Output 5.0Vdc/5mA, Port Terminal Socket
• MIC in / Line in Port x1 -Connect the MIC or Audio line in device, The Multiplex Port is Microphone Input by Default, Which can be Configured as Audio Line Input Function Through Software, Electret Condenser MIC is Recommended, Sensitivity: - 38dB, Impedance 2.2k ohm, Bias Voltage2.54Vpp, Port Terminal Socket
• Short Circuit Input and Output Port x1 (Built-in Relay), Relay - MAX DC30V / 2A, AC125V / 0.5A, Port Terminal Socket
• 2 Parallel Power Input DC Ports - DC Power Input - DC12V~24V/2A, 1 Road for the 5.5mm DC Power Seat, 1 Road for the 2 Pin Terminal Socket
• PoE Level - Class 3
• Housing Material - Aluminums Alloy
• Desktop Stand or Wall Mount Installation
• Dimensions - 113mm c 83mm x 58mm
