Fanvil PA2 KIT with Camera

Fanvil PA2 KIT

The Fanvil PA2 KIT is an accessory kit for use with the Fanvil SIP Intercom / Paging Gateway PA2. The accessory package includes IP Camera Module, Speaker Module, Microphone Module and Button Module. Users can quickly build high quality Audio/Video intercom equipment with the PA2 KIT, eliminating the components selection, and eliminating testing as this has already been done.

Plug and Play

Easy Installation - Clear Instructions to Complete the High Quality Audio/Video Intercom Equipment by PA2 KIT.

HD Video Call

720P Camera Module to Achieve HD Video Call, the Lens Mounting Height and Angle can be Adjusted to Meet the Requirements of Various Scenarios.

High Reliability

Waterproof and Dustproof Designed Stainless Steel Button with LED Indicator for Better Operation.

Fanvil PA2 KIT Highlights

• High Reliability Components, Plug & Play
• 720P Camera Module to Achieve HD Video Calls, The Lens Mounting Height and Angle can be Adjusted to Meet the Requirements of Various Scenarios
• High Sensitivity Pick-Up, Waterproof, Dustproof Designed Microphone Module, Suitable for Harsh Environment Applications
• 5W / 8Ω Speaker Module, Satisfied the Noisy Environment to the Demand of the High Loudness of the Intercom Equipment
• Waterproof and Dustproof Designed Stainless Steel Button with LED Indicator for Better Operation

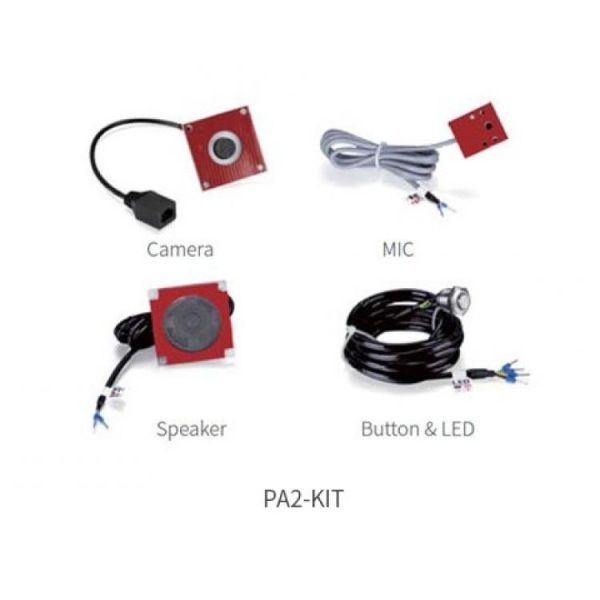

Fanvil PA2 KIT Package Contents

• Speaker Module x 1
• Button Module x 1
• Microphone Module x 1
• IP Camera Module x 1

Fanvil PA2 KIT Features and Functions:

Speaker Module Functions

• Speaker with Self Adhesive Layer
• Module with Dustproof, Waterproof Protective Film
• 5W / 8Ω Waterproof Loudspeaker

Speaker Module Features

• The Diameter of the Horn is 57mm and the Height is 13.7mm - Includes 150cm Shielding Wire
• 5W / 8Ω Waterproof Loudspeaker

Button Module Functions

• Stainless Steel Button with Backlight
• IP67/IK10 Protection Level
• Mechanical Lifetime of the Button is 200,000 Times
• LED Lamp Lifetime is 400,000 Hours

Button Module Features

• Button Diameter is 16mm and the Height is 23.8mm
• The Button is Self Restorable Stainless Steel with 150cm Shielding Wire

Microphone Module Functions

• Microphone with Self Adhesive Layer
• Module with Dustproof, Waterproof Protective Film
• Microphone Sensitivity: -38DB±2

Microphone Module Features

• Standard Working Voltage - 3V, Maximum Voltage is 10V
• Output Impedance - ≤2.2KΩ
• Diameter of the Microphone is 9.7mm, Height is 4.7mm - Includes 150cm Shielding Wire
• Microphone Sensitivity: -38DB±2

IP Camera Module Functions

• Module with Self Adhesive Layer
• 720P HD Camera, Support Dual Video Stream
• Power by PA2 LAN Port (12V DC)
• Wide Angle Lens, the Installation Angle can be Fine Tuned
• **Please Note - Do not Connect the PoE Injector/Switch Directly Using this Camera Module, this Will Damage it**

IP Camera Module Features

• 1.0M 1/4" H62 CMOS Sensor
• Colour 0.1Lux@F1.2, Black/White 0.01Lux@F1.2
• H.264 Support Dual Stream, AVI - Main Stream - 1280 x 720, Sub Stream 704 x 576
