Fanvil Linkvil CP20 Wireless Screen Sharing Pod

The Fanvil LINKVIL CP20 is a USB-C wireless presentation pod for LINKVIL CA200 and CA400 meeting-room systems. A presenter plugs it into their laptop and presses one button to put their screen on the room display at up to 4K UHD, with no software to install. Each system supports up to four CP20 pods, which suits rooms where several people present in one meeting.

One Button 4K Sharing from a USB-C Laptop

The CP20 has one large share button. Press it and the laptop’s screen appears on the meeting-room display at up to 4K UHD. Press it again and sharing stops. The USB-C cable is fixed to the pod, so the presenter has a single plug to connect and nothing to install or configure.

The pod sends its picture to the RC10 receiver over 5 GHz Wi-Fi, using Wi-Fi 5 or Wi-Fi 6. Presenters can sit up to 10 m from the receiver.

Pause the Display with Freeze and Control the Sound from the Pod

Freeze holds whatever is on the room display while the presenter carries on using their laptop. They can open an email, look up a figure or set up the next slide, and the room only sees the frozen image. A second press of Freeze brings the live screen back.

Two volume buttons sit beside the share button. They raise and lower the laptop’s own system volume, which is useful when a presentation includes video.

Up to Four Presenters on One Wireless Presentation System

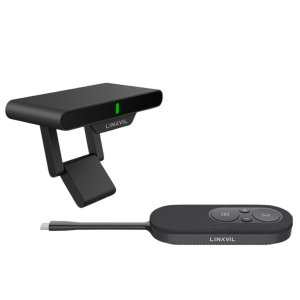

A LINKVIL CA200 or Fanvil Linkvil CA400 system supports four CP20 pods in total with the RC10 receiver. Each presenter keeps a pod plugged into their own laptop for the whole meeting. When it’s their turn, they press their button and the display switches to them.

The display shows one laptop at a time. Extra pods are paired to the system with the optional Pairing Adapter or the optional H2C.

Room Camera, Microphone and Speakerphone Via the CP20

The CP20 also connects the laptop to the room’s audio and video equipment. A UVC camera, microphone or speakerphone plugged into the RC10 is available to the laptop wirelessly, so a presenter can run a video call from their own machine with the room’s camera and audio.

Encrypted 5 GHz Link with Status Lights

Everything sent between the CP20 and the RC10 is protected with WPA3-PSK encryption. The share button shows the connection state: flashing green while connecting, solid green when ready, yellow if the laptop isn’t sending a video signal and red if the connection fails. The Freeze button shows green while sharing is live and red while the image is paused.

Laptop and System Requirements for the LINKVIL CP20

The CP20 works with LINKVIL CA200 and CA400 systems and their RC10 receiver. It is not a standalone wireless display adapter.

The laptop needs a full-featured USB-C port that supports USB Power Delivery, data transfer and DisplayPort Alt Mode. Thunderbolt ports meet this requirement. A lightning bolt or DisplayPort symbol beside the port shows it will work.

The pod suits boardrooms, client meeting rooms and training rooms where visitors and staff present from their own laptops.

Features

• Built-in 85mm USB-C Cable - The cable is part of the pod, so it can’t be left behind in another room or mixed up with a phone charger
• Powered by the Laptop - The CP20 draws 5 V / 900 mA from the USB-C port and uses 2.5 W, so there is no mains plug or charging to think about
• Dedicated Controls - Share, Freeze, volume up and volume down each have a separate button, so presenters can find the right one without looking
• Lightweight and Portable -  Weighing 62g and measuring 189mm × 40mm × 18mm, the pod easily slips into a laptop bag or desk drawer
• Works in Cool and Warm Temperatures - The operating temperature range is -10 °C to +40 °C
• Coloured Status Lights - Green, yellow and red lights on the share and Freeze buttons show the connection and sharing state at a glance
• WPA3-PSK Security - The wireless link to the RC10 is encrypted with the current Wi-Fi security standard
• Low Transmit Power - Maximum transmit power in the EU is 20 dBm
• Compliance  - The CP20 carries CE, FCC and RoHS certification

• Fanvil Linkvil CP20 Screen Sharing Pod
• Qucik Installation Guide
