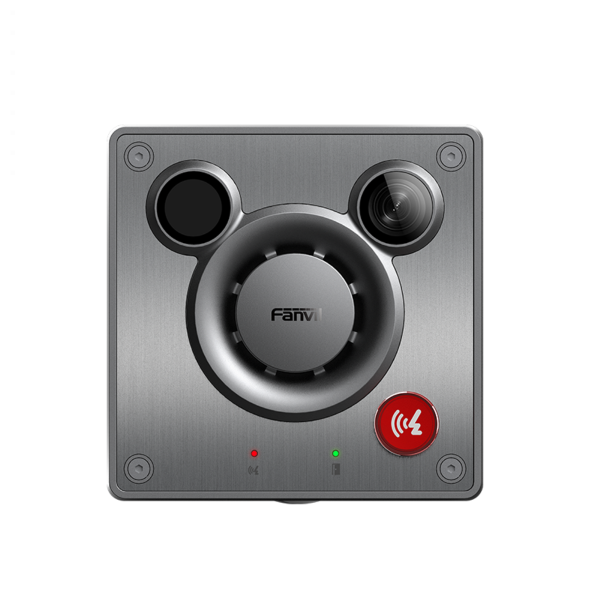

Fanvil A11V Video Intercom

The Fanvil A11V Video Intercom is a compact yet ultra-rugged solution engineered for dependable 24/7 operation in harsh outdoor and industrial environments. Featuring a premium stainless steel front panel, heavy-duty aluminium alloy housing, and IP66 weatherproof plus IK10 vandal-resistant protection, it is built to withstand demanding conditions with ease.

Equipped with a 4MP wide-angle camera, infrared illumination, and HDR technology, the A11V delivers clear, detailed video day and night. Its high-performance 5W speaker, advanced turbine acoustic design, dual microphones, and intelligent noise reduction technology ensure crystal-clear two-way hands-free communication, effectively minimising street noise, wind interference, and heavy background machinery sounds.

Heavy-Duty Outdoor Security Communication

Engineered to withstand the most demanding outdoor environments, the Fanvil A11V Video Intercom delivers dependable, around-the-clock performance. Built with a premium stainless steel faceplate and a rugged aluminium alloy chassis, this SIP video intercom features IP66 weatherproofing and IK10 vandal resistance for reliable operation in harsh conditions. Designed to resist torrential rain, dust ingress, corrosive environments, and physical tampering, the A11V is an ideal solution for high-traffic commercial entrances, industrial facilities, loading bays, and secure access points.

Acoustic Excellence in High-Noise Environments

Clear communication is essential for secure entry management, which is why the Fanvil A11V features advanced industrial-grade audio technology. Combining a powerful 5W high-output speaker with a specialised turbine acoustic cavity design, the intercom delivers deep, amplified, and highly intelligible audio even in loud surroundings. The optimised acoustic structure enhances airflow and sound resonance within the compact chassis, ensuring speech remains clear across busy commercial and industrial environments. Intelligent dual-microphone noise reduction further improves two-way hands-free communication by minimising street noise, wind interference, and background machinery sounds.

Intelligent Security Integration with Smart Alarm Support

The Fanvil A11V Video Intercom supports advanced security features including external sensor linkage, motion detection, and tamper alarms for enhanced site protection. It integrates with alarm systems and management platforms to enable intelligent event response and active security monitoring.

Universal SIP Integration and Modern IP Connectivity

Built on the globally adopted SIP 2.0 standard, the Fanvil A11V integrates seamlessly with major hosted VoIP platforms, on-premise PBX systems, and software-based communication servers, including 3CX, Asterisk, and Avaya. Operating as a native IP network endpoint, it can be deployed as a secure extension within a wide range of communication infrastructures.

Support for dual SIP accounts enables flexible call routing, backup registration, and customised speed-dial configurations. The A11V also supports peer-to-peer IP calling, allowing direct communication with other compatible IP devices across the local network without requiring a central SIP server.

Features

• HD Video - Built-in 4MP Angle HD Camera with Infrared Illumination Delivers Clear Video Communication and Monitoring Day and Night
• Intelligent Audio Processing – Advanced AEC, ANR, AGC, and AVC Algorithms Deliver Clear, Reliable Two Way Communication in Noisy Outdoor and Industrial Environments
• Extended Hands-Free Voice Pickup – Dual Microphones Capture Speech Clearly from up to 5 Metres Away for Dependable Long Range Communication
• Integrated Audio Broadcasting Support – Built-in SD Card Support Enables Flexible Voice Broadcasting, Preset Announcements, and Audio Playback Functionality
• Rugged Outdoor Protection – IP66 Rated Weatherproof and Dustproof Protection Combined with IK10 Rated Vandal Resistance for Demanding Environments
• Seamless SIP Platform Compatibility – Fully Compatible with Major IP PBX, Softswitch, IMS, and SIP Communication Platforms
• Flexible Integration Interfaces – Audio Line Out and Short Circuit Input / Output Interfaces Support a Wide Range of Security and Access Control Integrations

Specifications

Video Features

• 4MP HD Wide Angle Camera
• HDR (High Dynamic Range) Imaging
• HD Video Calling and Monitoring
• ONVIF Compatibility for VMS Integration

Audio Features

• HD Full Duplex Audio
• Acoustic Echo Cancellation (AEC)
• Active Noise Reduction (ANR)
• Automatic Gain Control (AGC)
• Automatic Volume Control (AVC)
• Wideband Codec Support Including G.722 and Opus
• 5W High Output Speaker

SIP & Communication

• 2 SIP Lines
• SIP 2.0 Compatible
• Intercom and Multicast Support
• Peer to Peer IP Calling
• Voice Broadcasting Support
• Speed Dial Functionality

Network & Connectivity

• 10/100 Mbps Ethernet
• IPv4 / IPv6 Support
• PoE+ (IEEE 802.3at)
• HTTP API Support
• Automatic Deployment / Auto Provisioning

Interfaces

• Audio Line Out Interface
• Short Circuit Input / Output
• TF / SD Card Support

Security & Protection

• IP66 Dust and Waterproof Protection
• IK10 Vandal Resistant Design
• TLS and SRTP Security Support

Installation

• Wall Mounted Installation
• Compact Low Profile Design

Package Contents

• Fanvil A1V Video Intercom
• Wall Mount Bracket
• Mounting Template
• Quick Installaton Guide
