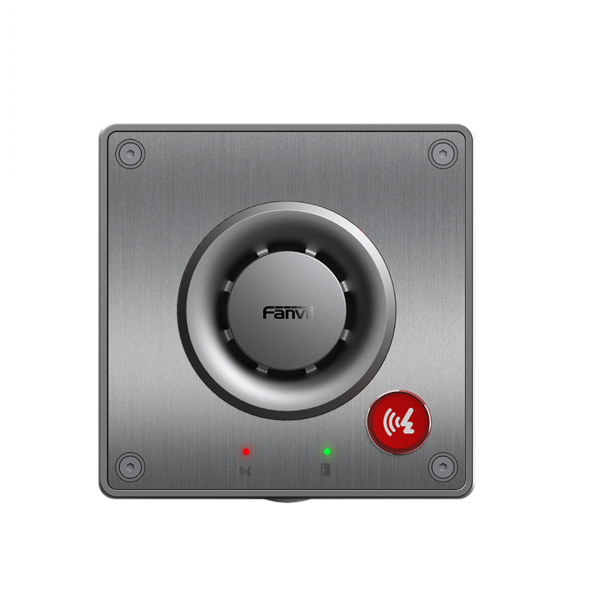

Fanvil A11 Audio Intercom

Secure your premises with the Fanvil A11 Audio Intercom, a compact yet ultra-rugged device, designed for dependable, around-the-clock outdoor performance. Engineered to thrive in the harshest industrial and commercial environments, this low-profile device features a premium stainless steel front panel and a heavy-duty aluminium alloy housing that carries IP66 weatherproof and IK10 vandal-resistance ratings.

Equipped with a high-performance 5W internal speaker, advanced turbine acoustics, and advanced noise reduction technology, the Fanvil A11 guarantees crystal-clear, two-way hands-free communication by effortlessly cutting through loud street chatter, wind noise, and heavy background machinery interference.

Heavy-Duty Outdoor Security Communication

Engineered to withstand the most demanding outdoor environments, the Fanvil A11 Audio Intercom delivers dependable, around-the-clock performance. Built with a premium stainless steel faceplate and a ruggedised aluminium alloy back-chassis, this SIP audio intercom boasts IP66 weatherproofing and IK10 vandal-resistance. This ensures complete structural protection against heavy torrential rain, fine dust ingress, corrosive elements, and high-impact physical tampering, making it an ideal choice for high-traffic commercial gates, industrial sites, and delivery bays.

Acoustic Excellence in High-Noise Environments

Clear communication is paramount for secure entry management, which is why the Fanvil A11 features advanced, industrial-grade audio technology. By combining a potent 5W high-output internal speaker with a specialised Turbine Acoustic cavity, the intercom projects deep, amplified, and easily audible speech. This unique Turbine Acoustic structural design optimises airflow and sound resonance inside the compact chassis, allowing the unit to blast clear audio even across frantic environments. Simultaneously, intelligent noise-reduction technology actively isolates the speaker’s voice while minimising street noise, wind interference, and background machinery for clear, two-way hands-free communication.

Universal SIP Integration and Modern IP Connectivity

Operating seamlessly as a native network endpoint, the Fanvil A11 is built on the global SIP 2.0 standard. This allows it to register as a secure extension across major hosted cloud VoIP platforms, on-premise PBX servers, and virtual software switchboards, including 3CX, Asterisk, and Avaya.

With support for two concurrent SIP accounts, IT administrators can configure flexible backup call routing or separate speed-dial rules. Furthermore, it supports standalone peer-to-peer IP calling, enabling it to communicate with other IP devices over the local network without requiring a central server.

Features

• Intelligent Audio Processing - Equipped with AEC, ANR, AGC, and AVC Speech Algorithms to Deliver Clear and Reliable Communication in Challenging Environments
• Extended Remote Voice Pickup - Captures Speech Clearly from up to 5 Metres Away for Dependable Handsfree Communication
• Integrated Broadcast and Recording Support - Built-in SD Card Slot Enables Flexible Preset Announcements and Audio Playback Functionality
• Reliable Protection for Demanding Environments - IP66 Rated Waterproof and Dustproof Protection Combined with IK10 Rated Vandal Resistance
• Seamless Integration with Major SIP Platforms - Compatible with Mainstream IP PBX, Softswitch, and IMS Communication Systems
• Flexible Connectivity Options - Audio Line Output and Short Circuit Input / Output Interfaces Support Diverse Integration Requirements

Specifications

Audio Features

• HD Full Duplex Audio
• Acoustic Echo Cancellation (AEC)
• Wideband Codec Support Including G.722 and Opus
• 5W High Output Speaker
• Intelligent Noise Reduction Technology

SIP & Communication

• 2 SIP Lines
• SIP 2.0 Compatibility
• Intercom and Multicast Support
• Peer to Peer IP Calling
• Speed Dial Functionality

Network & Connectivity

• Automatic Deployment / Auto Provisioning
• IPv4 / IPv6 Support
• PoE+ (IEEE 802.3at)

Interfaces

• Audio Line Out Interface
• Short Circuit Input / Output
• TF / SD Card Support

Security & Protection

• IP66 Dust and Waterproof Protection
• IK10 Vandal Resistant Design
• TLS and SRTP Security Support

Installation

• Wall Mounted Installation

Package Contents

• Fanvil A11 Audio Intercom
• Wall Mount Bracket
• Mounting Template
• Quick Installaton Guide
