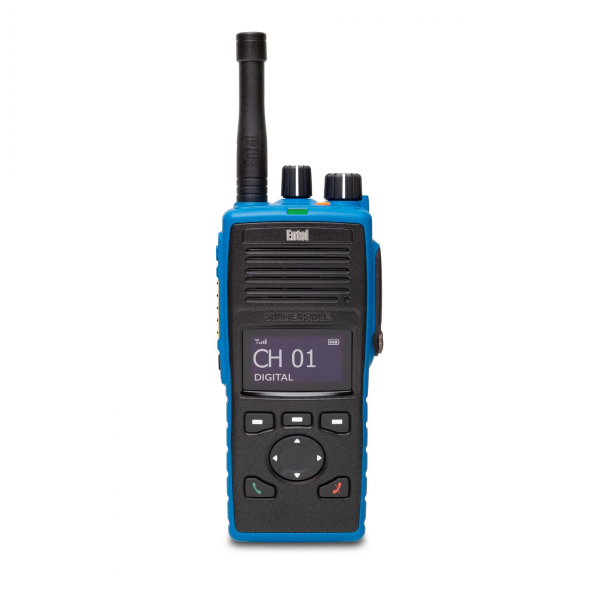

Entel DT985M UHF Ultra Durable DTEX Radio

• Analogue & DMR Modes
• 99 Channels, 1 Zone
• IP68 Submersible (2m, 4 Hours)
• 3 Programmable Buttons
• Gold Plated Locking Accessory Connector
• Digital and Analogue Modes
• High Contrast White on Black OLED
• Outstanding Range, Crystal Clear Audio

The industrial grade DTEx DMR Digital Series has been built to withstand daily use in extreme and hostile environments. The ATEX certified portable delivers remarkably loud and clear audio, and has beem designed with ultra tactile buttons and high torque controls that allow the DTEx to be operated with gloved hands.

The DTEx Series sets the benchmark for next generation onboard Radios with a market leading IP68 submersible rating (Submersible in up to 2 Metres for up to 4 Hours). The DT985M can be depended on to withstand extreme and hostile environments at sea.

Channels

The Entel DT985M Marine can be programmed with both analogue and digital channels, this is indicated on the display together with the frequency. if a semi duplex channel is programmed, the word Repeater will be displayed instead of the frequency.

Benefits of Digital

Digital mode gives significantly better audio, extended range and longer battery life compared to Analogue Radios.

Superior Audio

The DT985M Portable delivers loud and crisp audio no matter what environment you are in. Entel has designed a range of accessories that incorporate a robust locking plug and high grade cable, that benefit from Entel's proprietary Smart Speech Tailoring Technology. This automatically detects the type of accessory that is connected to the Radio and optimises the audo accordingly so the best performance is always delivered.

IP68 Rating

The Entel DT985M offers the highest submersibility rating of any manufacturer. This protects against corrosion, withstanding total immersion in water to a depth of 2 metres for 4 hours to protect against any hazards encountered in extremely wet environments.

High Contrast White on Black OLED Display

The DT985M benefits from a high contrast white on black OLED display that delivers superior readability in varying light conditions adding to the DT985M's Intuitive user interface.

Li-Ion Battery & Improved Talk Time

Entel's DT985M Radio is supplied with the latest intelligent Lithium-Ion Battery Technology as standard. One of he benefits of the Lithium-Ion Battery are that it elimiates memory effect meaning that there is no need to fully discharge your battery before recharging, ensuring a full charge each time your Radio is removed from the charger.

Robust Accessory Socket

The Accessory Socket has been specially designed so when an accessory is secured to the Radio, the connection is able to withstand any amount of punishment, from dropping to careless misuse. The rugged multi-pin interface and Micro-USB Socket are both submersible and are gold plated, minimising any risk of damage and protecting against corrosion.

To ensure the integrity of IS protection levels any accessory connected to the handset automatically undergoes a validation process to safeguard against non-compliant accessories being used. All DT985M accessories incorporate a robust locking connector to further safeguard the safety of the user.

Simple on Board Re-Programming App

The free, unique and simple PC app allows you to re-program the DT985M Radio, whilst still onboard. The user friendly app makes it easy to drag and drop a new programming file from an email to your DT985M Radio. This can be carried out quickly and easily even by non technical personnel.

Keylock

To Avoid accidental operation, the Radios Keys and Controls can be locked.

Programmable Channel Monitor Button

If you have channel protection enabled on your DT985M portable, all signals other than your own networks will be filtered out. This can be temporarily disabled allowing you to monitor all signals on your channel.

IP Site Roaming

This provides large area coverage by seamlessly roaming between multiple DMR Repeaters.

Table Scan

Enables multiple, advanced, channel scan lists which are pre-programmed by your Entel dealer.

Safety

ATEX IIC T4 Approved - The DT985M ATEX certified portables meet IIC T4 - the most stringent ATEX ratings as per EU directive 2014/34/EU.

Radio Programming & Licencing

This Radio Requires a License to Operate.

• An Ofcom Radio Operator's License will need to be Purchased before using the Radio - Please Click Here to Purchase a License
• At PMC, we will Program the Radio/s to your New or Existing Licensed frequency before we Dispatch the Radio/s to you.

Technical Specifications

• Frequency Range - UHF - 450-470MHz
• 99 Channels
• Number of Zones - 1
• Vocoder - AMBE+2™
• Channel Spacing Analogue - 25 KHz
• Channel Spacing Digital - 12.5 KHz
• Battery - CNB950EV2 1800mAh Lithium-Ion
• Weight - 435g
• Dimensions - 138mm x 60mm x 38mm (H x W x D)
• Frequency Stability - ±0.5ppm
• Operating Voltage - 7.4v
• Battery Endurance (5/5/90) Analogue Mode - 16 Hours
• Battery Endurance (5/5/90) Digital Mode - 18 Hours
• Output Power - 1W
• IP68 Ingress Protection - 2 Metres, 4 Hours Submersible

Package Contents

• Entel DT985M Portable Radio
• Li-Ion Battery Pack
• Drop in Charger
• Spring Loaded Belt Clip
• High Efficiency Antenna
• Quick Start User Guide
