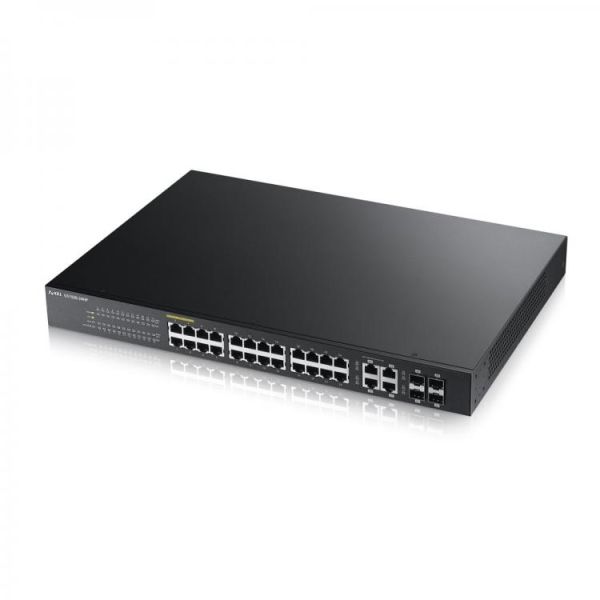

ZyXEL GS1920-24HP, 28-Port GbE L2 PoE+ Smart Switch

Todays small and medium sized businesses expect a higher level of performance from their networks, more connections to support diverse applications, fewer network disruptions and easier management. The ZyXEL GS1920 Series is ideal for small and medium sized deployments in multiple scenarios by providing up to 28 Gigabit Copper ports for 24 port models or up to 6 gigabit fibre ports for 48 port models.

With rich L2 features such as LACP, advanced QoS, VLAN, ACL and multicast IGMP snooping, the GS1920 Series offers intuitive web based interface for users to access without learning complex command-Line interface (CLI).

The GS1920 Series PoE Switches support 802.3at PoE Plus standards to offer 30 watt per port and a 375 watt high power budget to meet the connectivity needs of additional powered devices like 802.11 ac WLAN access points, VoIP Phones and IP Cameras. As well as featuring full PoE ports, the GS1920 Series employs intelligent technology. Whilst set to consumption mode, switches can automatically detect the power consumption status of each powered device and supply the amount of power required, saving businesses money.

The GS1920 Series protects users from network disruptions and ensures uniterrupted connectivity through several key features. Loop Guard helps networks avoid service disruptions caused by switching loops and IP Source Guard (IPSG) shields your network from MAC spoof and ARP spoof attacks.

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.3ab 1000BASE-T Ethernet
• IEEE 802.3z 1000BASE-X
• IEEE 802.3af PoE
• IEEE 802.3at PoE Plus
• IEEE 802.3az EEE
• IEEE 802.3x flow control
• IEEE 802.3ad LACP aggregation
• IEEE 802.1AB LLDP/LLDP-MED
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• IEEE 802.1Q VLAN Tagging
• IEEE 802.1p Class of Service (CoS) Prioritization
• IEEE 802.1X port authentication
• ZDP (ZyXEL Discovery Protocol)

• 802.1X
• Port Security
• Layer 2 MAC Filtering
• Layer 3 IP Filtering
• Layer 4 TCP/UDP Socket Filtering
• Static MAC Forwarding
• Multiple RADIUS Servers
• Multiple TACACS+ Servers
• 802.1x VLAN and 802.1p Assignment by RADIUS
• Login Authentication by RADIUS
• Login Authentication by TACACS+
• TACACS+ Accounting
• Authorization on RADIUS
• Authorization on TACACS+
• SSH v1/v2
• SSL
• Intrusion Lock
• MAC Freeze
• DHCP Snooping
• ARP Inspection
• Static IP-MAC-Port Binding
• Policy-Based Security Filtering
• Port Isolation
• IP Source Guard
• Limit Number of MAC per VLAN
• MAC Search
• Guest VLAN
• ACL Packet Filtering (IPv4/IPv6)
• CPU Protection
• Interface Related Trap Enable/Disable (By Port)

• ZyXEL iStackingTM
• Web Interface
• Management Through SNMP
• Remote Firmware Upgrade by Web
• Configuration Saving and Retrieving
• Configure Clone
• DHCP Relay per VLAN
• DHCP Client
• Daylight Saving
• NTP
• Port Mirroring

• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• IEEE 802.3ad LACP (Max # Trunks/Links per Trunk): 8/8
• Loop Guard
• ErrDisable Recovery MRSTP (ZyXEL proprietary)
• Dual Configuration Files
• Dual Images

• Total Port Count - 28
• 100/1000 Mbps  PoE- 24
• Gigabit Combo (SFP/RJ-45) - 4

• PoE Ports - 24
• Total PoE Budget (Watts) - 375
• High Power PoE 802.3at - Yes

• Switching Capacity (Gbps) - 56
• Forwarding Rate (Mpps) - 41.67
• Packet Buffer (byte) - 1.5m
• MAC Address Table - 16K

• Input - 100 - 240 V AC,50/60 Hz
• Max Power Consumption (watt) - 454

• 440 x 330 x 44.5cm
• 17.32 x 12.99 x 1.75 Inches

• 4.79 Kg
• 10.56 Lb

• Power Cord
• Rack Mounting Kit
