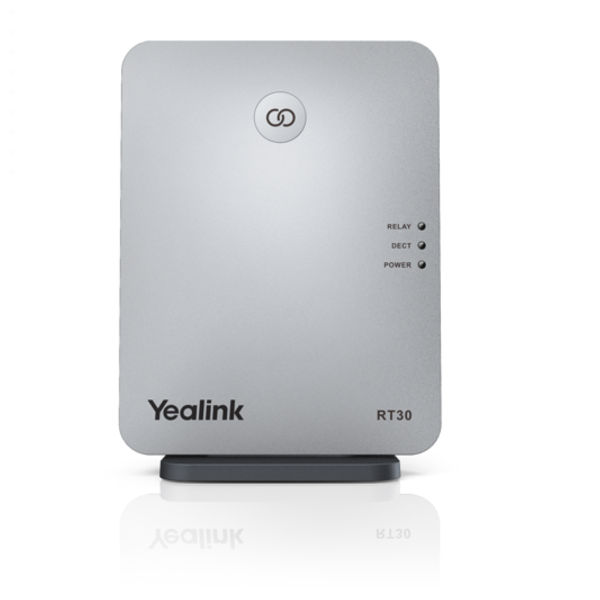

Yealink RT30 DECT Repeater - New

Yealink RT30 DECT Repeater

The Yealink RT30 DECT Repeater is designed in accordance with Digital Enhanced Cordless Telecommunications (DECT) Standard, and is characterised by easy installation and a user friendly display concept. The Repeater can be used to extend the DECT Radio Coverage of the Yealink W60B Base Station significantly in all directions, and whilst working with the Yealink W60B, it supports two RT30 Cascaded. Clear LED Indicators are used to distinguish different DECT statuses, its elegant design and easy installation are typically suitable to be used in the ambiance of modern business environments.

Yealink RT30 DECT Repeater Key Features and Benefits

• Compatible with DECT CAT-iq 2.0
• Elegant Design
• Wall Mountable
• Clear Status LED Display
• Plug and Play Set Up
• HD Voice
• Auto Association
• Up to Two Repeaters can be Arranged in Cascade
• Star Connection
• Up to Six Repeaters Per Base Station
• Compatible with Yealink W60B/W52 DECT IP Base Station
• *Not Compatible with the Yealink RT20U*

Yealink RT30 DECT Repeater General Features

• Standards - DECT CAT-iq 2.0
• Extending the DECT Coverage
• Supports Automatic Handover of Calls Between RT30
• Up to Two Simultaneous Calls Per Repeater
• Up to Six Repeaters Per Base Station
• Up to Two Repeaters can be Arranged in Cascade (Only When Connected to W60B)
• Auto Association
• Base Link Reset
• Compatible with Yealink W60B (Version 77.81.0.35 or Later)
• Compatible with Yealink W52 Base Station (25.81.0.10 or Later)

LED Display

• LED 1 - Power On
• LED 2 - DECT Link
• LED 3 - Active Relay

Frequency/Coverage

• Indoor Range - Up to 50m (In Ideal Conditions)
• Outdoor Range - Up to 300m (In Clear View and Ideal Conditions)
• 2 Internal QWL Omnidirectional Antennas
• Modulation - GFSK
• Radio Frequency Range - 1880 MHz to 1900 MHz (EU), 1920 MHz to 1930 MHz (US)
• Transmission Power - Average 10mW
• RX Sensitivity - Typ -91dBm

Physical Features

• Desktop or Wall Mountable
• Power Supply - AC 100-240V Input and DC 5V/600mA Output
• Dimensions - 130mm x 100mm x 25.1mm (W x H x T)

In the Box

• Yealink RT30 DECT Repeater
• USB Cable
• Power Adapter
• User Guide
