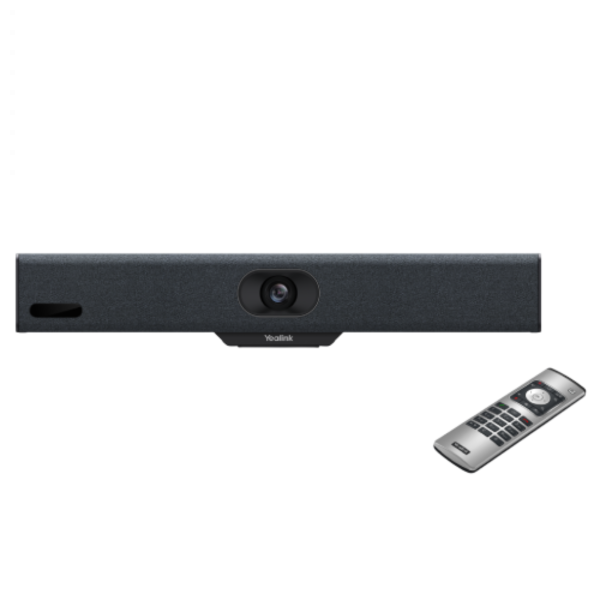

Yealink MeetingBar A10-010

The Yealink MeetingBar A10 is an all-in-one Android video bar for home offices, huddle rooms and small meeting rooms, certified for Microsoft Teams Rooms and Zoom Rooms. It runs Android 11 on the bar itself and has a 4K camera with a 120° diagonal field of view, eight MEMS microphones and a 5W speaker in one 380mm wide unit. Connect power and an HDMI cable to the room display and the A10 is ready to host meetings.

About the Yealink MeetingBar A10

The MeetingBar A10 is a complete video conferencing system in a single bar. The camera, eight-microphone array, speaker, Wi-Fi, Bluetooth and the Android 11 system that runs the meeting software are all inside one 380 mm wide unit. It sits on an adjustable clamp on top of the room display. The mounting bracket and accessories are in the box, along with a Yealink VCR11 remote control for running meetings.

The bar runs Microsoft Teams Rooms or Zoom Rooms natively, and in BYOD (bring your own device) mode a laptop can use its camera, microphones and speaker for meetings on other apps. With power and an HDMI cable to the screen connected, the room is ready, and staff can join scheduled meetings with one tap from the calendar.

On the back of the bar are an HDMI output with CEC support, a USB-C port for content sharing, a USB-A port, a gigabit Ethernet port, a Yealink VCH port, a security lock slot and a reset slot.

Yealink MeetingBar A10 Key Features

4K Camera with a 120° Field of View

The A10 has a 4K camera sensor and sends video at 1080p or 720p at 30 frames per second. Its 120° diagonal and 105° horizontal field of view takes in people sitting close to the screen, which is where they sit in a huddle room. A 4x electronic pan, tilt and zoom adjusts the shot without the camera moving.

AI Auto Framing and Speaker Tracking

Auto framing counts the people in the room and adjusts the shot to fit the group, so nobody needs to touch the camera when people arrive or leave. Speaker tracking zooms in on the person talking. In Zoom Rooms, Smart Gallery is also available.

Electric Privacy Shutter

An electric shutter closes over the lens when the camera is not in use, so the camera is physically covered between calls.

Eight Microphone Array with AI Noise Cancellation

Eight MEMS microphones form a beamforming array that locates the person speaking and focuses pick-up on them. Yealink's AI noise cancellation reduces sounds such as typing, footsteps and mouse clicks. Acoustic echo cancellation and dereverberation stop the far end hearing their own voice or the echo of a hard-walled room, and calls run in full duplex so both ends can talk at once.

Built-in 5W Speaker

The integrated speaker reaches 88 dB SPL at 1 W and 93 dB SPL at 3 W, measured at 0.5 m. Yealink designed it for home offices, huddle rooms and small rooms.

Content Sharing and Whiteboard

Presenters can share a laptop screen through the USB-C port, or wirelessly with the optional Yealink WPP30 Wireless Presentation Pod. The whiteboard function lets the room sketch ideas during a call. The Teams edition supports proximity join, and the Zoom edition supports direct sharing.

Built-in Wi-Fi and Bluetooth

Dual-band Wi-Fi (2.4 GHz and 5 GHz) and Bluetooth 4.2 are built in. The bar can join the network without a cable, which helps in rooms where there is no data point near the display.

VCR11 Remote Control Included

Meeting controls cover adding participants, hold and resume, camera on and off, mute, volume and hang up. These can be run from the Yealink VCR11 remote control supplied with this model. Rooms that want a touchscreen can add the optional Yealink CTP18 touch console.

Managing Yealink Teams Room Devices Remotely

IT teams can manage the A10 through the Yealink HTTPS web portal, Yealink Device Management Platform, Yealink Management Cloud Service (YMCS), Microsoft Teams Admin Centre or Zoom Device Management. Each platform supports remote monitoring, configuration, firmware updates and diagnostics.

Network Security

The bar supports IEEE 802.1X authentication, VLAN, LLDP and QoS tagging (802.1p/q and DiffServ). Traffic is protected with TLS 1.2/1.3 and AES 256-bit encryption, and the bar has a built-in certificate.

Who the Yealink A10 Video Bar Suits

Yealink designed the A10 for home offices, huddle rooms and small rooms. Typical installations include:

Huddle Rooms and Small Meeting Rooms

Short-notice team meetings and client calls in rooms with a wall-mounted or trolley display. Huddle room video conferencing works best when nobody has to set up equipment, and the A10 needs no laptop to start a call.

Private Offices and Home Offices

Managers and hybrid workers who take many video calls from one desk and want room-grade audio and framing in place of a laptop webcam.

Multi-Room Microsoft Teams and Zoom Deployments

IT teams rolling out the same certified device across many small rooms, who want to manage them from Teams Admin Centre, Zoom Device Management or YMCS.

What the A10 Solves in a Small Meeting Room

• Lower Hardware Outlay per Room -  The meeting system, camera, microphones and speaker are in one bar, so there is no room PC to purchase or support
• Teams, Zoom and BYOD in One Device -  The A10 runs Microsoft Teams Rooms or Zoom Rooms natively, and Standalone BYOD mode lets a connected laptop use the bar’s camera, microphones and speaker
• Fewer Cables at the Table - dual-band Wi-Fi (2.4 GHz and 5 GHz) and Bluetooth 4.2 are built in, alongside a gigabit Ethernet port for wired installations
• Approval from Network and Security Teams -  802.1X, VLAN, QoS and TLS 1.3 support fit managed corporate networks
• Room to Expand Later - add the CTP18 touch console, WPP30 wireless pod or VCH51 adapter without replacing the bar
• Low Running Power - The A10 draws 10.5 W in normal use, under 10 W at idle and 14 W at maximum

Platforms and Acessories that Work with the A10

The MeetingBar A10 is certified for Microsoft Teams Rooms on Android and for Zoom Rooms. It also has a Standalone (BYOD - bring your own device) mode, which lets a laptop use the bar’s camera, microphones and speaker for meetings on other apps. The optional VCH51 adapter is designed for BYOD and content sharing.

It connects to a display through its HDMI output, which supports HDMI-CEC. The VCR11 remote control is included. Optional Yealink accessories for the A10 are the CTP18 touch console, the WPP30 Wireless Presentation Pod and the VCH51 adapter, sold separately.

• Yealink MeetingBar A10
• 3m Ethernet Cable
• 1.8 m HDMI Cable
• Mounting Bracket and Accessories
• Power Adapter
• Yealink VCR11 Remote Control
• Quick Start Guide
