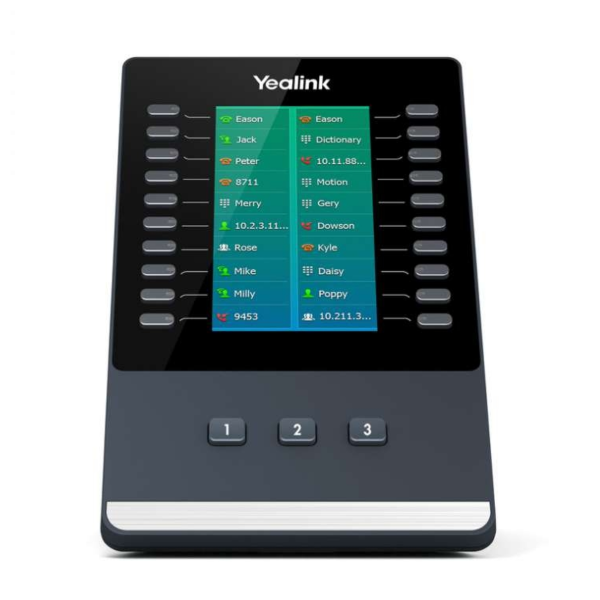

Yealink EXP50 Expansion Module for Yealink T5 Series

About the Yealink EXP50

The Yealink EXP50 Colour Screen Expansion Module is for use with the Yealink T5 Series of SIP Phones, Including SIP-T58V/SIP-T58A/SIP-T56A/SIP-T54S/SIP-T52S and is designed to expand the functional capability of your SIP Phone to a whole new level. Featuring a large 4.3 Inch LDC Colour Screen, giving users a vivid visual experience.

Additionally it provides a simple user interface and advanced call handling capabilities, For example, three pages of 20 flexible button shown on the display can be programmed up to 60 various features.

The Yealink EXP50 will extend the functionality of the Yealink T5 Series of SIP Phones, the provided multi functional line keys can be set as Speed Dial, BLF, Call Forward, Call Transfer, Call Park and Call Pickup etc. The EXP50 is ideal for receptionists, administrative assistants and contact centre workers, allowing them to manage a large volume of calls with ease and to monitor contacts.

Key Features & Benefits

• The EXP50 4.3 Inch Colour Screen Expansion Module brings an easy operating experience to any user, with its new designed Stand, users can adjust between two angles easily without having to disassemble. A USB Cable is used to connect the EXP50 to Yealink T5 Series SIP Phones, this ensures a higher reliability of data transmission. Once connected to the SIP Phones the remaining USB Port in the back of the EXP50 can be used to utilise the phones extended functions such as Call Recording via USB Drive.
• The 4.3-Inch 272x480-pixel colour screen greatly enriches your visual experience. The colour icons for DSS keys, the feature of Wallpaper and Screensaver, all of these offer you a new operating experience as well as allow you to custom the EXP50 in your own style. More than that, it has already come ready for the Avatar Display on SFB and UC platform. Its 3 independent control keys with illuminated LED on the bottom are used for fast switching to the corresponding page.
• The Yealink T5 Series of SIP Phones can be fully equipped with up to three EXP50 Colour Screen Expansion Modules, adding up to 180 additional buttons. Three pages of 20 flexible button with dual-color LED shown on the display can be programmed up to 60 various features that can be used for speed dialing, BLF/BLA, call forward, transfer, etc. Thus, it will help you effecctively manage high volume of concurrent calls, effortlessly monitor calls and extremely boost personal productivity.

Features

• Stand with 2 Adjustable Angles
• Supports up to 3 Expansion Modules - Daisy Chained (External Yealink Power Adapter (5V/2A) Required)
• Three Independent Control Keys with Illuminated LED``s for Fast Switching Pages
• 20 Physical Keys on Each Page with Dual Colour LED`s
• Colour Icons
• 4.3 Inch - 272 x 480 Pixel Colour Screen
• Wallpaper
• Screensaver
• Power Saving
• USB Port (2.0 Compliant) for Data in and Out
• USB Port (2.0 Compliant) for Wired/Wireless USB Headset
• Wi-Fi Through WF40
• USB Call Recording Through USB Flash Drive
• Dimensions - 196.5mm x 124.0mm x 137.5mm x 42.6mm (W x D x H x T)

Feature Keys & Indicator

• 20 Physical Keys each with a Dual Colour LED
• 3 Independent Control Keys with Illuminated LED are used for Fast Switching Pages
• 40 Additional Keys Through Page Switch
• Programmable for Shared Line, BLF List, Call Park, Conference, Forward, Group Pickup, Group Listening, LDAP, XML Browser

Package Contents

• Yealink EXP50 Colour-Screen Expansion Module
• Stand, USB Cable
• Fixing Bracket with Screws
• Screwdriver
• Quick Start Guide
