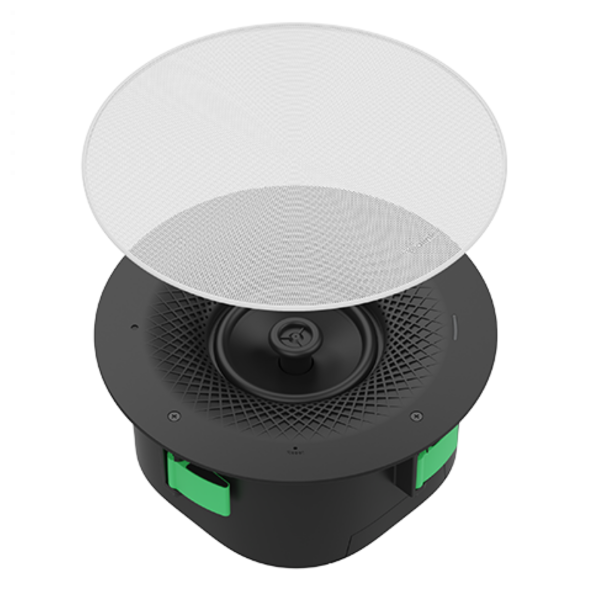

Yealink CS10-D Ceiling Loudspeaker

About the Yealink CS10-D

The Yealink CS10-D is a low-profile (120mm) Dante Network Speaker featuring a 2-way coaxial design optimised for superior video conferencing. Engineered for the modern meeting space, it pairs high-fidelity audio with a minimalist aesthetic, making it an ideal choice for contemporary conference rooms.

Engineered for versatility and ease of use, the PoE-powered CS10-D offers a range of mounting accessories to streamline installation across any ceiling type. Its discreet, low-profile design does more than deliver premium sound, it elevates the entire meeting environment by balancing high end audio with a minimalist aesthetic.

More than just a speaker, the CS10-D combines technical excellence with a refined aesthetic, delivering a premium audio experience for the modern professional workspace.

Dante Speaker

With native support for the Dante protocol, the CS10-D integrates effortlessly into your existing audio ecosystem, ensuring a versatile and streamlined collaborative experience.

Innovative Coaxial Structure

Engineered for high-fidelity performance, the 2-way coaxial system features a 5.7" LF woofer for rich lows and a 1.1" HF tweeter for crystal-clear highs.

Acoustically Tuned Design for Speech

Engineered for exceptional speech clarity, the CS10-D delivers powerful, room-filling sound with a sensitivity of 88dB and a maximum 99dB SPL. Its acoustically tuned profile makes it the ideal solution for high-stakes conferences and presentations.

PoE Enabled Active Speaker

The CS10-D integrates an active speaker, built-in DAC, and PoE technology into one powerful unit. By processing digital signals directly from the network, it ensures a hassle-free setup with ultra-low latency - perfect for demanding professional environments.

Sophisticated Design

The CS10-D features a sleek, 120mm low-profile design with a detachable magnetic grille. Available in black or white and fully paintable, it offers a custom finish that seamlessly complements any modern interior.

Versatile Adaptability

The Yealink CS10-D offers versatile installation options designed to fit seamlessly into a wide range of indoor environments and ceiling configurations.

Deploy for Multiple Spaces

The CS10-D is ideal for Large Conference Rooms, Divisable Conference Rooms and Medium Conference Rooms.

Features

• Dante Speaker - Features Support for the Dante Audio Transmission Protocol
• Innovative Coaxial Structure
• Acoustically Tuned Design for Speech
• PoE Enabled Active Speaker
• Versatile Deployment
• Sophisticated Design
• Ideal for Large Conference Rooms, Divisable Conference Rooms and Medium Conference Rooms

Specifications:

Audio Specifications

• Frequency Response (-6dB) - 100-20kHz
• Maximum SPL - Continuous - 99dB @20W 1m, Sensitivity - 88dB@1m 1W

Speaker Specifications

• LF - 5.7 Inch (145mm) Woofer
• HF - 1.1 Inch (28mm) Tweeter
• Nominal Impedance - 8Ω
• Nominal Coverage Angle -120

Product Specifications

• Size - ф294 × H125.8mm (With Cover Mesh), ф287.2 × H125mm (Without Cover Mesh)
• Weight - 2808g (Without Cover Mesh), Cover Mesh Weight - 207g
• Product Materials - Cover Mesh: PC/ABS Welded SPCC, Main Body Shell - PA (Polyamide) with 15% GF, Bottom Shell - Aluminum Alloy, Cover Plate: PC/ABS and SGCC, Plenum Rated UL 2043 (Suitable for Air Handling Spaces)

Physical Specifications

• Rated Power - 24W (20W Typical Power)
• Power Supply - PoE+ (IEEE 802.3at Class 4)
• Interface - 1x RJ45

Package Contents

• Yealink CS10-D Speaker
• White Mesh Cover (Black Cover Optional)
• Quick Start Guide
• Assembly Fixing Bracket
• Dust Cover
• Deployment Instruction Template
• Bracing Bridge
• Dust Cover Screw x 6 (M3 × 4CMHOZN3)
