Yealink CP960-UVC80 Zoom Rooms Kit

Yealink CP960-UVC80 Zoom Rooms Kit

For Use in Medium and Large Conference Rooms

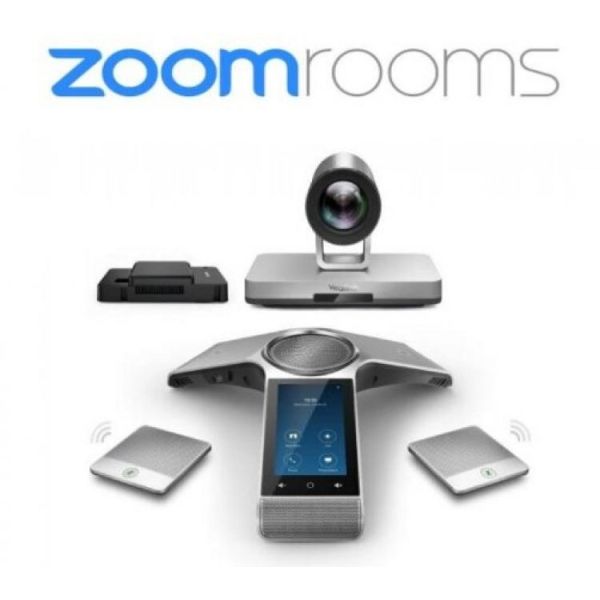

Yealink CP960-UVC80 Zoom Rooms Kit Includes -  Yealink UVC80 - 12 x Optical PTZ Camera, Yealink CP960 IP Conference Phone (Zoom Edition), 2 x Yealink CPW90 Wireless Expansion Microphones & PoE Adapter, Yealink Mini PC Package - Including PC and Cable Management Box, as well as all the needed software and license.

The Yealink CP960-UVC80 Zoom Rooms Kit has been designed for use in Medium and Large sized Conference rooms, and is an all in one Conferencing System that comes fully integrated with Zoom Rooms and include pre-installed Zoom Rooms software. Certified by Zoom, and delivering premium Audio and Video Quality thanks to the combination of the Yealink CP960 Conference Phone and Yealinks UVC series of Optical Cameras that work in a Tandem, providing users with a native Zoom Rooms experience. The CP960-UVC80 runs on Android based Operating System, and is an easy to use, Plug and Play System. Everything that is needed is in the box, just plug into the TV and you are ready to go!

Key Features and Benefits:

Complete Conferencing Package

The Yealink CP960-UVC80 is a complete Zoom Rooms package, consisting of: Yealink UVC80 12 x Optical PTZ Camera, Yealink CP960 IP Conference Phone (Zoom Edition), 2 x Yealink CPW90 Wireless Expansion Microphones & PoE Adapter, Yealink Mini PC Package - Including PC and Cable Management Box, as well as all the needed software and license.

Easy to Use, Simple to Deploy

Yealink has eliminated the need for a traditional USB Cable from the Television to the Conference Table, simplifying deployment. The Yealink CP960 Conference Phone unites Microphones, Speakers and a Meeting Console into a single package. When serving as a Meeting Console, the five inch Multi Touch Screen Display allows users to join the meeting, add participants, adjust volume and control the PTZ (Pan, Tilt, Zoom) of the Camera, making meeting management simple.

Premium Audio and Video Meeting Experience

Featuring a built-in-three-microphone array, the Yealink CP960 Conference Phone ensures a 360 degree voice pickup range with up to a 20 foot (6 metre) radius. Yealink Noise Proof Technology ensures background noise is minimised so everyone in the room can be heard clearly. Adding two CPW90 Wireless Expansion Microphones, the CP960 can provide up to a 40 foot (12 metre) voice pickup rangw#e, without the need for any additional wiring. The Yealink UVC Optical PTZ Camera delivers smooth and stable video with a deep focus field, the wide angle horizontal field of view lens and adjustable camera angle proivdes users with a broad view of the Conference Room, and allows them to adjust the settings of the Yealink UVC Optical PTZ Camera to their specific needs.

Manage Your Devices Remotely

Yealink Device Management Platform or Cloud Service can manage the Yealink CP960-UVC Zoom Rooms Kits, this allows administrators to remotely control devices with ease. The platform supports remote configuration, firmware upgrading, monitoring and diagnosis. Through Windows Update, users can get the latest version of the UVC camera driver and Yealink Plug-in for Zoom Rooms, further enhancing the user’s Zoom Rooms experience.

Yealink CP960-UVC80 Zoom Rooms Kit Features & Specifications:

Components

• Yealink Mini PC Package - Including Computer and Cable Management Box
• Yealink UVC80 USB Camera - 12 x Optical PTZ Camera
• CP960 IP Conference Phone - Zoom Edition CP960 & 2 x CPW90 Wireless Expansion Microphones + PoE Adapter

Computer Features

• CPU - Intel® Core™ i5 CPU
• Memory / Storage - 8GB (2 x 4 GB), 128GB SSD
• Operating System - Windows 10 OS and License
• Pre-Installed Software - Zoom Rooms App and Yealink Plug-in Software

UVC80 Camera Features

• UVC Protocol - UVC 1.1
• Plug & Play Connectivity
• Zoom - 12x Optical
• Resolution / Frame Rate - 1080P / 60FPS
• Field of View (Diagonal) - 78.5°
• Pan / Tilt Range - 200° / 60°
• Line In and Line Out Ports
• Yealink VC Hub Port - To Connect to Yealink Microphones
• USB Port - 1 x USB 2.0 Type-B Port to Connect to PC, 1 x USB 2.0 Type-A Port

Yealink CP960 IP Conference Phone Features

• Operating System - Android OS Integrate with ZR Controller App
• Screen Features - 5 Inch Capacitive Touchscreen with 1280x720 Resolution
• Built in 3-Mic-Array - 20ft / 6m Voice Pickup Range
• Expansion Microphone - 2 x DECT Based CPW90 Wireless Microphones
• Speaker
• Mute / Volume Sync - With ZR/ZRC/CP960
• Yealink Noise Proof Technology

Management

• Windows Update - for UVC Cameras and Plug in Software
• Yealink Device Management Platform / Cloud Service - For CP960 IP Conference Phone

Yealink CP960-UVC80 Zoom Rooms Kit Product Info:

Mini PC Package Product Info

• 8th Generation Intel ® Core™ i5
• Memory - 8GB (2 x 4GB)
• Storage: 128GB SSD
• 1 x HDMI Video Output
• Bluetooth and Wi-Fi
• 4 x USB 3.1 Type-A
• 1 x USB 3.1 Type-C
• 1 x 10/100/1000M Ethernet Port
• 1 x Security Lock Slot
• Cable Management Box
• 1 x Type-C to HDMI Adapter

Yealink CP960 IP Conference Phone Product Info

• 5 Inch - 720 x 1280 Capacitive Touch Screen
• 1 x RJ45 10/100M Ethernet Port
• Power over Ethernet (IEEE 802.3af ), Class 4
• 2 x Wired MIC Port
• 2 x USB 2.0 Port
• 1 x 3.5mm Audio-Out Port
• 1 x USB 2.0 Micro-B Device Port
• 1 x Security Slot

Yealink CPW90 Wireless Microphones Product Info

• DECT Technology, up to 50 Metres Distance
• 10ft (3-Metre) Voice Pickup Range of Every Microphone Unit
• Supports up to 4 Wireless Microphone Units
• Built-in Li-battery, 11 Days Standby, 19 Hours Talking Time
• Charging Cradle, Charging Any Time

Yealink UVC80 USB PTZ Camera Product Info

• 1920 x 1080 Video Resolution
• 60 Frame Rate
• 12x Optical Zoom
• Field of View (Diagonal) - 78.5°
• Pan Angle Range - 200°
• Tilt Angle Range - 60°
• 1 x Line-In (3.5mm)
• 1 x Line-Out (3.5mm)
• 1 x Yealink Microphone Port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x USB 2.0 Type-A
• 1 x Security Lock Slot
