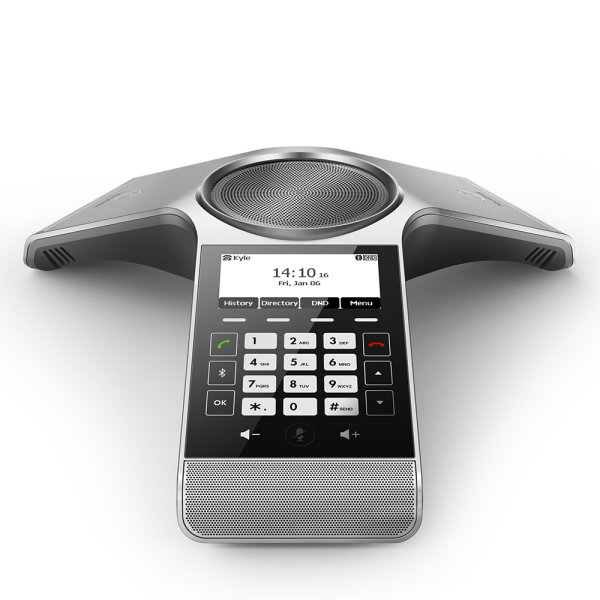

Yealink CP920 HD IP Conference Phone

The Yealink CP920 Touch-Sensitive HD IP Conference Phone delivers advanced audio collaboration tailored for modern meeting spaces. Available in brand new and refurbished versions, it delivers advanced audio collaboration tailored for modern meeting spaces. Bringing together an intuitive user interface and sophisticated acoustic engineering, this conference phone ensures crisp vocal clarity and effortless touch navigation for every business discussion.

Crystal-Clear Acoustics and Noise Suppression

Designed to remove common meeting room distractions, the hardware incorporates exclusive Yealink Noise Proof Technology to filter out ambient room sound. An integrated triple-microphone array establishes a dependable 20-foot and 360-degree voice pickup zone, allowing individuals to speak naturally from any seat around the table. Full-duplex capabilities and robust acoustic echo cancellation reaching up to 320ms ensure unclipped, lifelike audio fidelity.

Hybrid Connectivity and Analogue Integration

To safeguard legacy investments while moving toward modern architectures, the conference phone accommodates standard IP networks alongside traditional analogue phone lines via the optional Yealink CPN10 PSTN box. Teams can execute local three-way PSTN sessions or blend SIP, PSTN, and wireless streams into a comprehensive hybrid collaboration meeting. Furthermore, integrated Bluetooth 4.0 and Wi-Fi modules enable seamless pairing with smartphones, tablets, and computers.

Modern Touch Navigation and Management

Characterised by its distinctive Y-shaped profile, the device replaces conventional physical buttons with a smooth, noise-isolating touch panel for effortless operation. A 3.1-inch backlit graphical LCD screen offers sharp visual tracking of call statuses and directories. Network administrators benefit from flexible Power over Ethernet (PoE) deployment, zero-touch provisioning tools, and advanced security safeguards like Transport Layer Security (TLS) and AES file encryption.

Features

• Multi-Way Conferencing - Supports up to 5-party conference calls to facilitate seamless team collaboration across remote locations

• Wireless Integration - Features embedded Wi-Fi and Bluetooth 4.0 connectivity for cable-free peripheral linking and network setup

• Expanded Directory Storage - Holds up to 1,000 local contacts while supporting remote phonebook sync through XML and LDAP protocols

• Versatile Power Methods - Functions via standard Power over Ethernet (IEEE 802.3af) or an alternate mains power adapter

• Enterprise-Grade Encryption - Secures office voice traffic using SRTP encryption and robust configuration file protection

Technical Specifications

Audio and Voice Capabilities

• Microphone Range - 20-foot (6-metre) microphone pickup range with 360-degree voice capture
• Speaker Output - 56mm diameter, 5W speaker
• Acoustic Processing - Full-duplex speakerphone with acoustic echo cancellation (up to 320ms), VAD, CNG, PLC, AJB, and AGC
• Audio Codecs - G.722, G.722.1C, G.726, G.729, G.723, iLBC, Opus, PCMA, and PCMU

Hardware and Interfaces

• Display Screen - 3.1-inch 248 x 120-pixel graphical backlit LCD
• Network Interface - 1 x RJ45 10/100M Ethernet port with PoE support (Class 3)
• Wireless Modules - Built-in Wi-Fi (802.11b/g/n) and Bluetooth 4.0
• External Connections - 1 x USB 2.0 port and 1 x security slot

Network and Security Protocols

• Signalling and Protocols - SIP v1 (RFC2543), v2 (RFC3261), IPv4/IPv6, UDP, TCP, and DNS-SRV
• Quality of Service - 802.1p/Q tagging (VLAN), Layer 3 ToS, and DSCP
• Security Protocols - SRTP voice encryption, Transport Layer Security (TLS), and MD5 digest authentication

Standard Package Contents

• Yealink CP920 HD IP Conference Phone
• Ethernet Cable (7.5m CAT5E UTP cable)
• Yealink Power Adapter
• Quick Start Guide

*Please note - refurbished products package contents may vary from the above
